漏洞概要
Jenkins 未授權遠程代碼執行漏洞, 允許攻擊者將序列化的Java SignedObject對象傳輸給Jenkins CLI處理，反序列化ObjectInputStream作為Command對象，這將繞過基于黑名單的保護機制, 導致代碼執行。
漏洞觸發執行流程
SSD的報告披露了完整的漏洞細節，作為才學JAVA的我來說，看完這份報告，依舊不清楚具體的執行流程，因此有了下文，梳理漏洞觸發的具體執行流程。
觸發jenkins反序列化導致代碼執行的漏洞發生在使用HTTP協議實現雙向通信通道的代碼中，Jenkins利用此通道來接收命令。大致流程如下圖:
如何建立雙向Channel
基于HTTP建立雙向Channel的入口函數位于jenkins-2.46.1/core/src/main/java/hudson/cli/CLIAction.java文件中
@Extension @Symbol("cli")
@Restricted(NoExternalUse.class)
public class CLIAction implements UnprotectedRootAction, StaplerProxy {
private transient final Map<UUID,FullDuplexHttpChannel> duplexChannels = new HashMap<UUID, FullDuplexHttpChannel>();
......
@Override
public Object getTarget() {
StaplerRequest req = Stapler.getCurrentRequest();
if (req.getRestOfPath().length()==0 && "POST".equals(req.getMethod())) {
// CLI connection request
throw new CliEndpointResponse();
} else {
return this;
}
}
private class CliEndpointResponse extends HttpResponseException {
@Override
public void generateResponse(StaplerRequest req, StaplerResponse rsp, Object node) throws IOException, ServletException {
try {
// do not require any permission to establish a CLI connection
// the actual authentication for the connecting Channel is done by CLICommand
UUID uuid = UUID.fromString(req.getHeader("Session"));
rsp.setHeader("Hudson-Duplex",""); // set the header so that the client would know
FullDuplexHttpChannel server;
if(req.getHeader("Side").equals("download")) {
duplexChannels.put(uuid,server=new FullDuplexHttpChannel(uuid, !Jenkins.getActiveInstance().hasPermission(Jenkins.ADMINISTER)) {
@Override
protected void main(Channel channel) throws IOException, InterruptedException {
// capture the identity given by the transport, since this can be useful for SecurityRealm.createCliAuthenticator()
channel.setProperty(CLICommand.TRANSPORT_AUTHENTICATION, Jenkins.getAuthentication());
channel.setProperty(CliEntryPoint.class.getName(),new CliManagerImpl(channel));
}
});
try {
server.download(req,rsp);
} finally {
duplexChannels.remove(uuid);
}
} else {
duplexChannels.get(uuid).upload(req,rsp);
}
} catch (InterruptedException e) {
throw new IOException(e);
}
}
}
}從上述代碼可知，建立一對雙向通道(download/upload), 需要發送兩次POST請求，根據請求頭Session字段的值uuid識別不同的雙向通道，Side字段的值識別download或upload通道，請求發送的順序是先發送download請求再發送upload請求，跟進download函數(/Users/js/IdeaProjects/vulnhub/jenkins-2.46.1/core/src/main/java/hudson/model/FullDuplexHttpChannel.java), 當服務器收到download請求時會阻塞請求，等待upload請求，收到upload請求后，新建Channel對象處理upload請求和返回響應，代碼如下:
public synchronized void download(StaplerRequest req, StaplerResponse rsp) throws InterruptedException, IOException {
......
{// wait until we have the other channel
long end = System.currentTimeMillis() + CONNECTION_TIMEOUT;
while (upload == null && System.currentTimeMillis()<end)
wait(1000);
if (upload==null)
throw new IOException("HTTP full-duplex channel timeout: "+uuid);
}
try {
channel = new Channel("HTTP full-duplex channel " + uuid,
Computer.threadPoolForRemoting, Mode.BINARY, upload, out, null, restricted);
......
} finally {
// publish that we are done
completed=true;
notify();
}
}
public synchronized void upload(StaplerRequest req, StaplerResponse rsp) throws InterruptedException, IOException {
rsp.setStatus(HttpServletResponse.SC_OK);
InputStream in = req.getInputStream();
if(DIY_CHUNKING) in = new ChunkedInputStream(in);
// publish the upload channel
upload = in;
notify();
// wait until we are done
while (!completed)
wait();
}以上就是建立雙向通道的基本過程。
Channel對象啟動ReaderThread

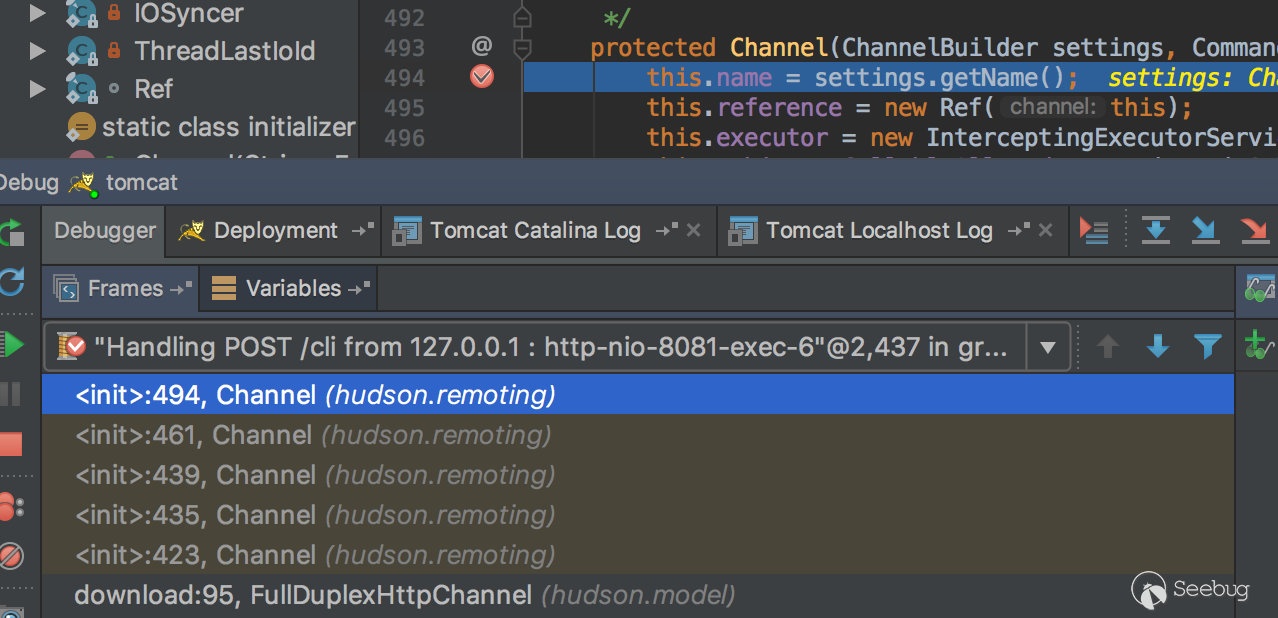

upload請求作為輸入流實例化Channel對象(~/.m2/repository/org/jenkins-ci/main/remoting/3.7/remoting-3.7-sources.jar!/hudson/remoting/Channel.java), Channel類的構造鏈比較繁瑣如下圖，
最終調用的構造方法為Channel(ChannelBuilder settings, CommandTransport transport), 該構造方法的transport參數，由ChannelBuilder類的negotiate()方法獲得。
protected CommandTransport negotiate(final InputStream is, final OutputStream os) throws IOException {
......
{// read the input until we hit preamble
Mode[] modes={Mode.BINARY,Mode.TEXT};
byte[][] preambles = new byte[][]{Mode.BINARY.preamble, Mode.TEXT.preamble, Capability.PREAMBLE};
int[] ptr=new int[3];
Capability cap = new Capability(0); // remote capacity that we obtained. If we don't hear from remote, assume no capability
while(true) {
int ch = is.read();
......
for(int i=0;i<preambles.length;i++) {
byte[] preamble = preambles[i];
if(preamble[ptr[i]]==ch) {
if(++ptr[i]==preamble.length) {
switch (i) {
case 0:
case 1:
......
return makeTransport(is, os, mode, cap);
case 2:
cap = Capability.read(is);negotiate()會檢查輸入(upload請求)的前導碼, 所有發往Jenkins CLI的命令中都包含某種格式的前導碼（preamble），前導碼格式通常為：<===[JENKINS REMOTING CAPACITY]===>rO0ABXNyABpodWRzb24ucmVtb3RpbmcuQ2FwYWJpbGl0eQAAAAAAAAABAgABSgAEbWFza3hwAAAAAAAAAH4=, 該前導碼包含一個經過base64編碼的序列化對象。“Capability”類型的序列化對象的功能是告訴服務器客戶端具備哪些具體功能（比如HTTP分塊編碼功能）。
最后調用makeTransport()方法返回CommandTransport對象, 根據cap是否支持Chunking返回不同的對象ChunkedCommandTransport或ClassicCommandTransport。
protected CommandTransport makeTransport(InputStream is, OutputStream os, Mode mode, Capability cap) throws IOException {
FlightRecorderInputStream fis = new FlightRecorderInputStream(is);
if (cap.supportsChunking())
return new ChunkedCommandTransport(cap, mode.wrap(fis), mode.wrap(os), os);
else {
ObjectOutputStream oos = new ObjectOutputStream(mode.wrap(os));
oos.flush(); // make sure that stream preamble is sent to the other end. avoids dead-lock
return new ClassicCommandTransport(
new ObjectInputStreamEx(mode.wrap(fis),getBaseLoader(),getClassFilter()),
oos,fis,os,cap);
}

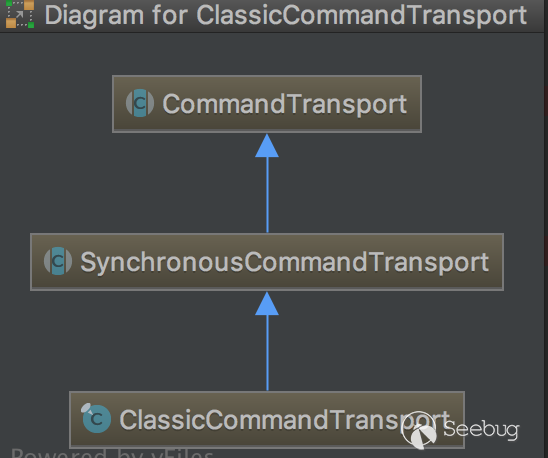

}利用SSD的PoC腳本發送的upload請求返回的是ClassicCommandTransport對象，其繼承關系如下圖所示。
Channel構造函數Channel(ChannelBuilder settings, CommandTransport transport)中, transport.setup()調用SynchronousCommandTransport類的setup()方法來啟動一個ReaderThread線程。
public void setup(Channel channel, CommandReceiver receiver) {
this.channel = channel;
new ReaderThread(receiver).start();
}讀取Command對象

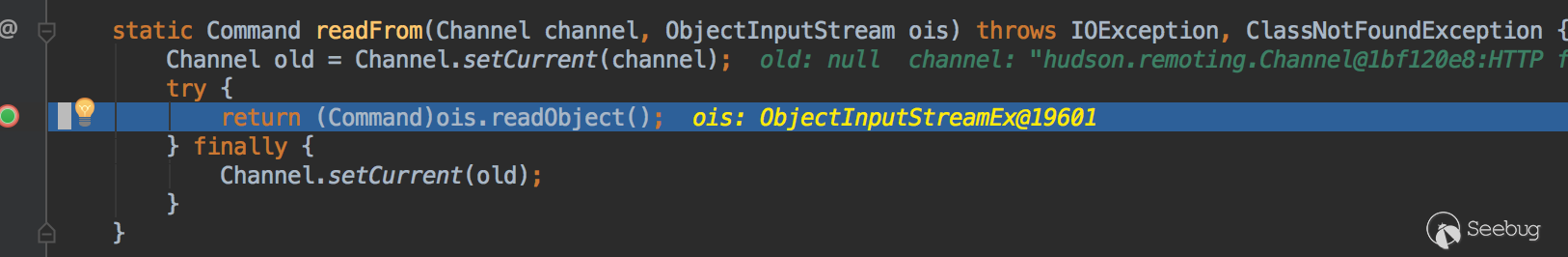

通過上面的ReaderThread.start()方法啟動一個線程，ReaderThread為SynchronousCommandTransport類的內部類，在run()方法中，調用ClassicCommandTransport類的read()方法讀取輸入，read()方法實際是調用Command類的readFrom()方法讀取，通過反序列化輸入返回一個Command對象。
private final class ReaderThread extends Thread {
......
public ReaderThread(CommandReceiver receiver) {
super("Channel reader thread: "+channel.getName());
this.receiver = receiver;
}
@Override
public void run() {
final String name =channel.getName();
try {
while(!channel.isInClosed()) {
Command cmd = null;
try {
cmd = read(); public final Command read() throws IOException, ClassNotFoundException {
try {
Command cmd = Command.readFrom(channel, ois);

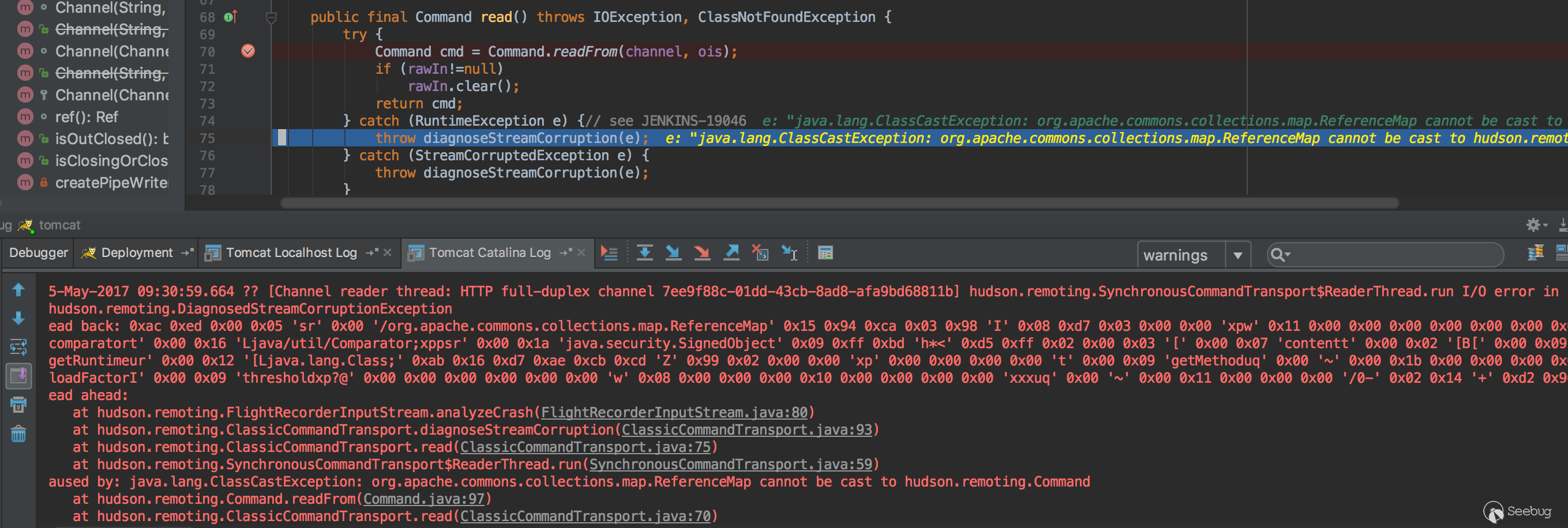

在反序列化輸入返回一個Command對象時就執行了cmd命令，而不是通過正常的回調handle()方法執行cmd命令，反序列化導致的執行代碼觸發的相關異常如下:
類型轉換異常ClassCastException: org.apache.commons.collections.map.ReferenceMap cannot be cast to hudson.remoting.Command.
正常執行Command
雖說反序列化時就執行了cmd代碼，這里也順帶了解下正常的執行cmd的過程。SynchronousCommandTransport類的run()方法中，獲得返回的Command對象(cmd)，然后調用receiver.handle(cmd);處理命令，其實質是回調Channel類構造方法里面的handle方法，而傳入handle方法的cmd參數就是反序列化得到的Command對象。
transport.setup(this, new CommandReceiver() {
public void handle(Command cmd) {
......
try {
cmd.execute(Channel.this);繞過黑名單保護機制

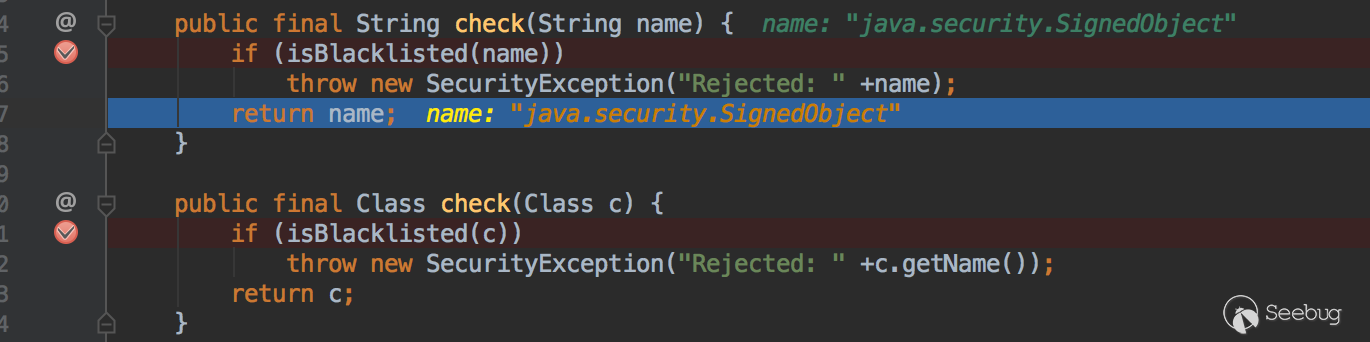

上面過程主要講述的是漏洞觸發的流程，而該漏洞的核心是反序列化Java SignedObject對象會繞過黑名單保護機制，從而導致的代碼執行漏洞。
ClassFilter類定義的默認的黑名單如下：
private static final String[] DEFAULT_PATTERNS = {
"^bsh[.].*",
"^com[.]google[.]inject[.].*",
"^com[.]mchange[.]v2[.]c3p0[.].*",
"^com[.]sun[.]jndi[.].*",
"^com[.]sun[.]corba[.].*",
"^com[.]sun[.]javafx[.].*",
"^com[.]sun[.]org[.]apache[.]regex[.]internal[.].*",
"^java[.]awt[.].*",
"^java[.]rmi[.].*",
"^javax[.]management[.].*",
"^javax[.]naming[.].*",
"^javax[.]script[.].*",
"^javax[.]swing[.].*",
"^org[.]apache[.]commons[.]beanutils[.].*",
"^org[.]apache[.]commons[.]collections[.]functors[.].*",
"^org[.]apache[.]myfaces[.].*",
"^org[.]apache[.]wicket[.].*",
".*org[.]apache[.]xalan.*",
"^org[.]codehaus[.]groovy[.]runtime[.].*",
"^org[.]hibernate[.].*",
"^org[.]python[.].*",
"^org[.]springframework[.](?!(\\p{Alnum}+[.])*\\p{Alnum}*Exception$).*",
"^sun[.]rmi[.].*",
"^javax[.]imageio[.].*",
"^java[.]util[.]ServiceLoader$",
"^java[.]net[.]URLClassLoader$"

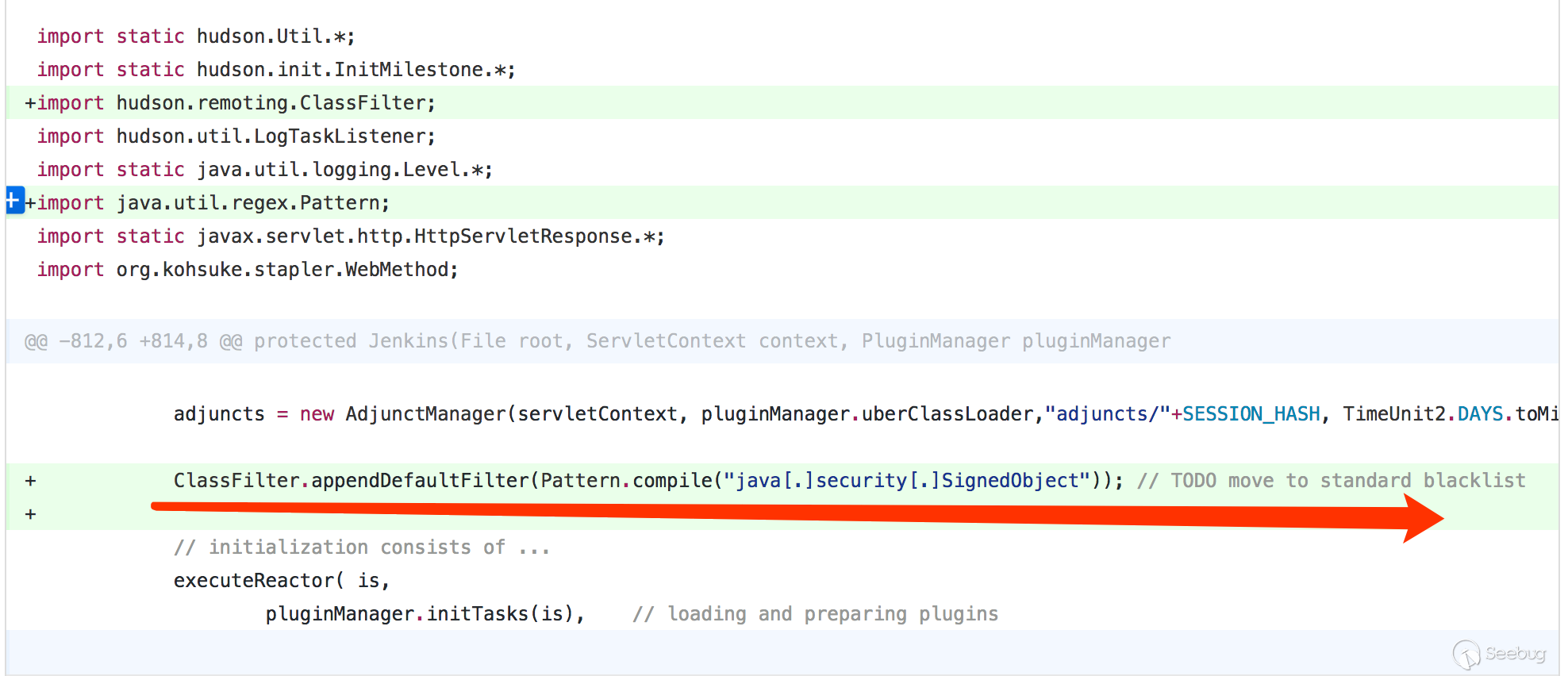

};黑名單機制繞過可以通過分析補丁得到印證。
參考
- https://www.seebug.org/vuldb/ssvid-93062
- http://www.securityfocus.com/bid/98056
- https://blogs.securiteam.com/index.php/archives/3171
- https://jenkins.io/security/advisory/2017-04-26/
- https://github.com/jenkinsci/jenkins/commit/36b8285a41eb28333549e8d851f81fd80a184076
- https://github.com/jenkinsci/jenkins/commit/f237601afd750a0eaaf961e8120b08de238f2c3f
- http://www.lilihongblog.com/Blog/jenkins+Slave+Receiving+Remote+Request
