作者：wzt
原文鏈接：https://mp.weixin.qq.com/s/Ua4CV3Vn8piw6z6BrpJyCQ
Ios13增加了判斷對象是否屬于zone的安全檢查，這將導致以前通過偽造內核對象的漏洞利用手段變得困難了很多，比如ipc_port，偽造的對象通常來自于用戶空間，那么在引用這個對象時，xnu引入了zone_require、zone_id_require、zone_owns三個函數來做對象合法性檢查。
osfmk/kern/zalloc.c：
void
zone_require(zone_t zone, void *addr)
{
if (__probable(from_general_submap(addr, zone_elem_size(zone)) &&[1]
(zone_has_index(zone, zone_native_meta_from_addr(addr)->zm_index)))) { [2]
return;
}
#if CONFIG_GZALLOC
if (__probable(gzalloc_enabled())) {
return;
}
#endif
zone_require_panic(zone, addr);[3]
}[1]處的from_general_submap判斷對象的地址是否在整個大的有效范圍內。
#define from_general_submap(addr, size) \
zone_range_contains(&zone_info.zi_general_range, (vm_offset_t)(addr), size)
#define zone_range_load(r, rmin, rmax) \
({ rmin = (r)->min_address; rmax = (r)->max_address; })
#endif
__header_always_inline bool
zone_range_contains(const struct zone_map_range *r, vm_offset_t addr, vm_offset_t size)
{
vm_offset_t rmin, rmax;
zone_range_load(r, rmin, rmax);
return (addr >= rmin) & (addr + size >= rmin) & (addr + size <= rmax);
}[2] 處的zone_has_index才是判斷對象是否屬于某個特定的zone。通過zone_native_meta_from_addr函數將對象地址轉為對應的meta數據結構，meta的zm_index指示的是meta對應的zone在zone_array數組里的索引，這樣通過索引加上zone_array數組地址就能判斷是否指向了正確的zone地址。
static inline bool
zone_has_index(zone_t z, zone_id_t zid)
{
return zone_array + zid == z;
}
__abortlike
static void
zone_require_panic(zone_t zone, void *addr)
{
uint32_t zindex;
zone_t other;
if (!from_zone_map(addr, zone_elem_size(zone))) {
panic("zone_require failed: address not in a zone (addr: %p)", addr);
}
zindex = zone_native_meta_from_addr(addr)->zm_index;
other = &zone_array[zindex];
if (zindex >= os_atomic_load(&num_zones, relaxed) || !other->z_self) {
panic("zone_require failed: invalid zone index %d "
"(addr: %p, expected: %s%s)", zindex,
addr, zone_heap_name(zone), zone->z_name);
} else {
panic("zone_require failed: address in unexpected zone id %d (%s%s) "
"(addr: %p, expected: %s%s)",
zindex, zone_heap_name(other), other->z_name,
addr, zone_heap_name(zone), zone->z_name);
}
}當比對失敗時，[3]處調用了zone_require_panic來試圖分析是哪種情況造成的并panic系統。
zone_require是zalloc內存分配器提供的kpi接口， 當其他內核子系統需要判斷某個object是否合法時要主動調用，因為如果在內存分配器的alloc或free路徑里在去判斷對象合法性時為時已晚，漏洞攻擊已經完成了。

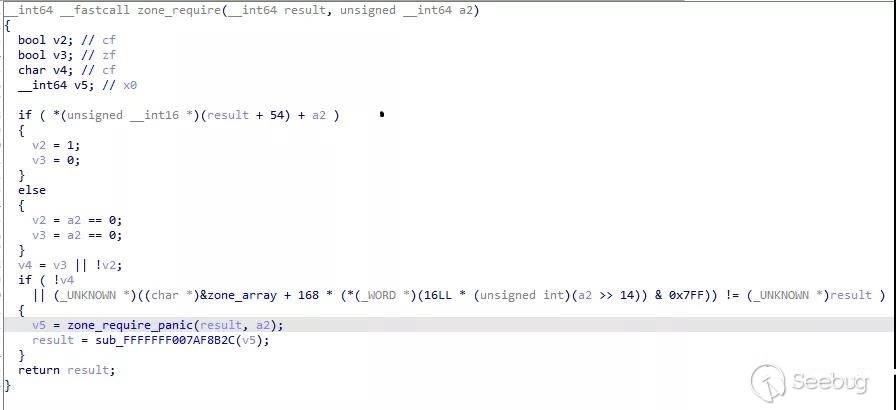

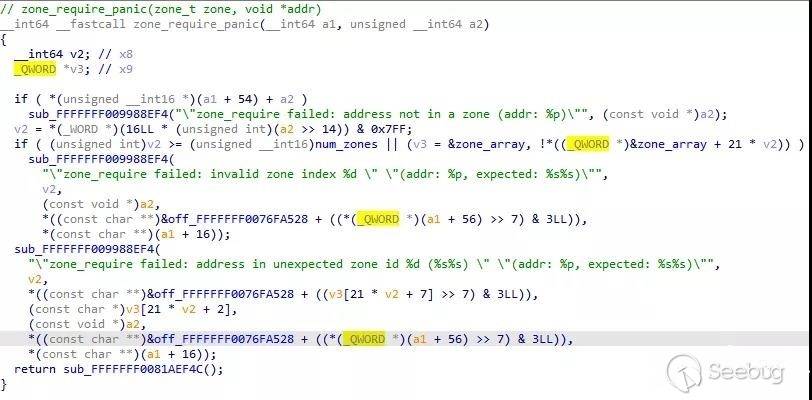

Ios13也是類似的邏輯：
同時還可以發現， 最新的xnu內存分配器對對象、meta、zone的合法性做了極其嚴格的檢查，這些優秀的漏洞緩解方法需要移植到linux中去。
static struct zone_page_metadata *
zone_allocated_element_resolve(zone_t zone, vm_offset_t addr,
vm_offset_t *pagep, zone_addr_kind_t *kindp)
{
struct zone_page_metadata *meta;
zone_addr_kind_t kind;
vm_offset_t page;
vm_offset_t esize = zone_elem_size(zone);
kind = zone_addr_kind(addr, esize);
page = trunc_page(addr);
meta = zone_meta_from_addr(addr, kind);
if (kind == ZONE_ADDR_NATIVE) {
if (meta->zm_secondary_page) {
if (meta->zm_percpu) {
zone_invalid_element_addr_panic(zone, addr);
}
page -= ptoa(meta->zm_page_count);
meta -= meta->zm_page_count;
}
} else if (!zone->allows_foreign) {
zone_page_metadata_foreign_confusion_panic(zone, addr);
#if __LP64__
} else if (!from_foreign_range(addr, esize)) {
zone_invalid_foreign_addr_panic(zone, addr);
#else
} else if (!pmap_kernel_va(addr)) {
zone_invalid_element_addr_panic(zone, addr);
#endif
}
if (!zone_allocated_element_offset_is_valid(zone, addr, page, kind)) {
zone_invalid_element_addr_panic(zone, addr);
}
if (!zone_has_index(zone, meta->zm_index)) {
zone_page_metadata_index_confusion_panic(zone, addr, meta);
}
if (kindp) {
*kindp = kind;
}
if (pagep) {
*pagep = page;
}
return meta;
}
zone_metadata_corruption(zone_t zone, struct zone_page_metadata *meta,
const char *kind)
{
panic("zone metadata corruption: %s (meta %p, zone %s%s)",
kind, meta, zone_heap_name(zone), zone->z_name);
}
zone_invalid_element_addr_panic(zone_t zone, vm_offset_t addr)
{
panic("zone element pointer validation failed (addr: %p, zone %s%s)",
(void *)addr, zone_heap_name(zone), zone->z_name);
}
zone_page_metadata_index_confusion_panic(zone_t zone, vm_offset_t addr,
struct zone_page_metadata *meta)
{
panic("%p not in the expected zone %s%s (%d != %d)",
(void *)addr, zone_heap_name(zone), zone->z_name,
meta->zm_index, zone_index(zone));
}
zone_page_metadata_native_queue_corruption(zone_t zone, zone_pva_t *queue)
{
panic("foreign metadata index %d enqueued in native head %p from zone %s%s",
queue->packed_address, queue, zone_heap_name(zone),
zone->z_name);
}
zone_page_metadata_list_corruption(zone_t zone, struct zone_page_metadata *meta)
{
panic("metadata list corruption through element %p detected in zone %s%s",
meta, zone_heap_name(zone), zone->z_name);
}
zone_page_metadata_foreign_queue_corruption(zone_t zone, zone_pva_t *queue)
{
panic("native metadata index %d enqueued in foreign head %p from zone %s%s",
queue->packed_address, queue, zone_heap_name(zone), zone->z_name);
}
zone_page_metadata_foreign_confusion_panic(zone_t zone, vm_offset_t addr)
{
panic("manipulating foreign address %p in a native-only zone %s%s",
(void *)addr, zone_heap_name(zone), zone->z_name);
}
zone_invalid_foreign_addr_panic(zone_t zone, vm_offset_t addr)
{
panic("addr %p being freed to foreign zone %s%s not from foreign range",
(void *)addr, zone_heap_name(zone), zone->z_name);
}
zone_page_meta_accounting_panic(zone_t zone, struct zone_page_metadata *meta,
const char *kind)
{
panic("accounting mismatch (%s) for zone %s%s, meta %p", kind,
zone_heap_name(zone), zone->z_name, meta);
}
本文由 Seebug Paper 發布，如需轉載請注明來源。本文地址：http://www.bjnorthway.com/1486/
